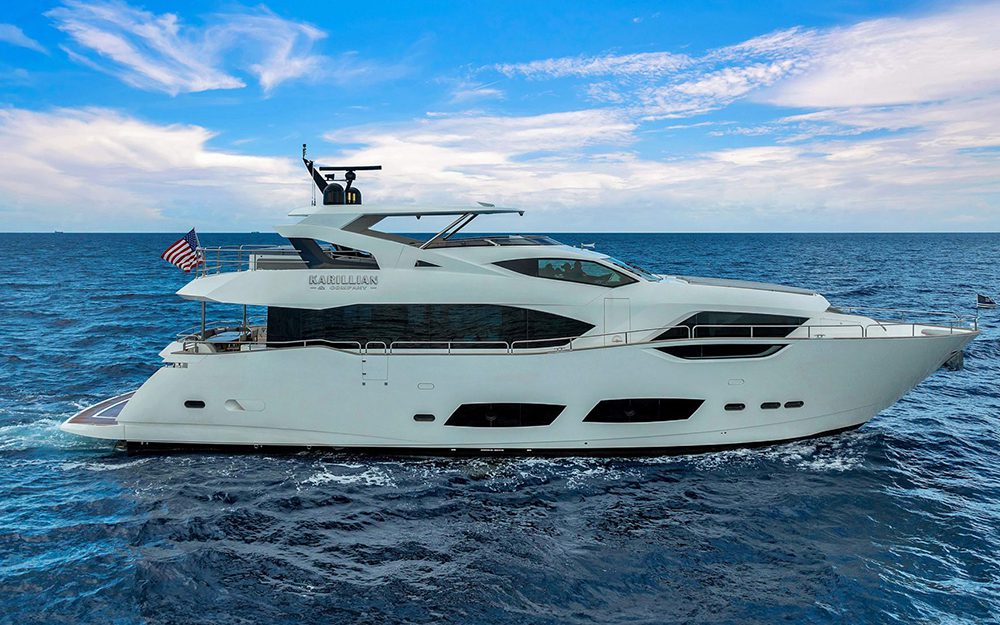

95’ (28.06m) Sunseeker 95 Motoryacht 2018 KARILLIAN & COMPANY

Length Overall: 92.08 feet (28.06 meters)
Beam: 21.50 feet ( 6.55 meters)
Draft: 7.00 feet ( 2.13 meters)
Year Delivered: 2018
Type: Flybridge Motoryacht
Flag: USA
Tonnage: 101 gross
Builder: Sunseeker (UK)
Naval Architect: Sunseeker (UK)
Exterior Design: Sunseeker (UK)
Interior Designer: Sunseeker (UK)
Construction: Fiberglass hull and superstructure, teak decks
Classification: RINA
Main Engines: (2) MTU 12V 2000 M96L @ 1,950 Hp each
Electrical: (3) Kohler 24EKOZD 24 kW generators
Speed: Maximum: 27 knots
Cruising: 15 knots
Tankage: Fuel: 3,170 US Gallons (12,000 liters)
Water: 462 US Gallons ( 1,750 liters)
Range: 2,541 nautical miles @ 8 knots
Accommodations: Sleeps up to 10 in the Owner’s party in 5 staterooms plus crew accommodations for up to 4 in 2 cabins
Location: South Florida

CONSTRUCTION

Fiberglass hull and superstructure, teak decks

DIMENSIONS

General
Length Overall (L.O.A.): 92.08 feet (28.06 meters)
Length at Waterline (L.W.L.): 70.75 feet (21.57 meters)
Beam (molded): 21.50 feet ( 6.55 meters)
Draft (loaded): 7.00 feet ( 2.13 meters)
Tonnage: 101 gross
Displacement: 186,731 lbs

Capacities
Fuel Capacity: 3,170 US Gallons (12,000 liters)
Water Capacity: 462 US Gallons ( 1,750 liters)
Black Water Capacity (guest): 115 US Gallons ( 435 liters)
Black Water Capacity (crew): 37 US Gallons ( 140 liters)
Grey Water Capacity: 264 US Gallons ( 1,000 liters)
Watermakers: 800 US Gallons/day ( 3,028 liters)

Maximum Speed: 27.0 knots
Consumption per hours: 349 US Gallons /hr
Range: 414 nm
RPM: 2,450

Cruising Speed: 15.0 knots
Consumption per hours: 128 US Gallons /hr
Range: 625 nm
RPM: 1,650

Economical Speed: 8.0 knots
Consumption per hours: 14 US Gallons /hr
Range: 2,541 nm
RPM: 800

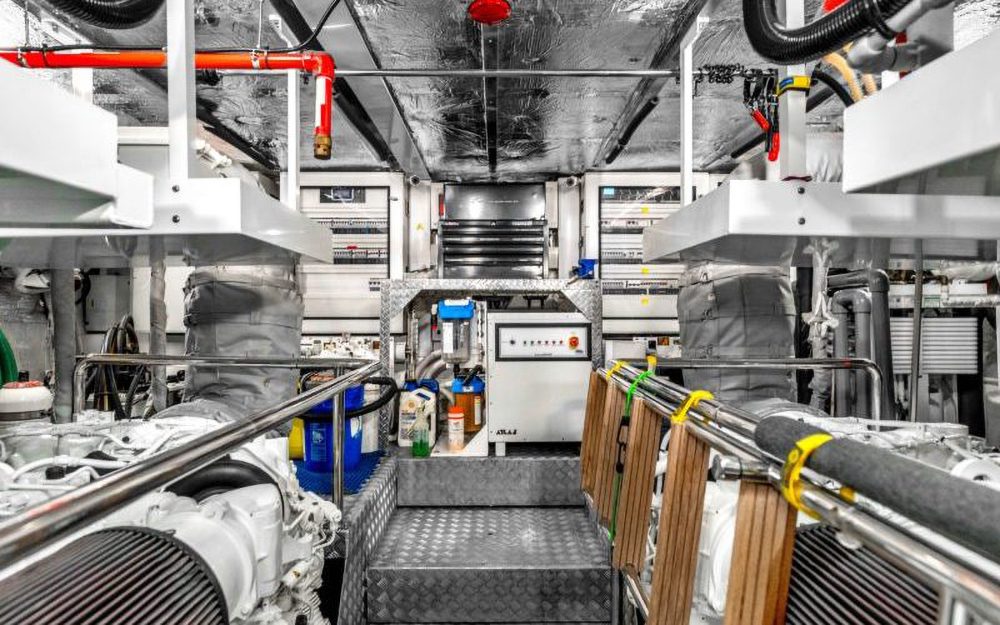

MACHINERY

Main Engines
Engine Type: (2) MAN CR V10-1100 CR inboard diesels @ 1,100 Hp each – 1,000-hour service – Oct 2024
Engine Services: Heat exchanger tanks SS sleeve
Heat exchanger bundles cleaned
Aftercoolers cleaned
Valves adjusted
(4) turbos rebuilt and balanced with new housings
New exhaust SS housings installed
New waste gate installed
Oil changed in mains, generators and gears
Gearboxes for Main Engines: ZF Marine ZF5J0A transmissions
Drive: Direct drive
Electronics: ZF Micro Command

Generators & Electricity
Output: 21.5 kW
Generators: Onan generator – rebuilt 2019
Raw water pump replaced – 2019
Heat exchanger cleaned
Gear line replaced
New coolant in generator and mains
New impellers on water pumps
Generator Fuel Consumption: 1 gallon / hour
Shore Power: (2) single phase 50 Amp 110/240V
(2) 75’ remote-controlled cablemaster
(1) 50’ 50 Amp extension cord for bow connection
Batteries: (6) AGM 24V – engine room – 2020
(4) AGM deep cycle start batteries 24V – engine room
(1) AGM start battery producing 12 VDC – generator compartment – 2020
Battery charger: (1) Mass 24 100 Amp – main engines
(1) Mastervolt for generator

Air Conditioning
Type: MarineAir 120V reverse cycle
Output: (5) with a total of 84,000 BTU (salon 30,000 ; master 16,000; crew 12,000 ; VIP 16,000, guest
stateroom 10,000)

Other Machinery
Trim Tabs: Dual station electric trim tabs with indicators – 2016
Watermaker: SeaRecovery with remote control panel mounted in galley – 2018
Bow & Stern Thruster: Dual Station Controls and wireless remote plus yacht controller
Steering System: Hydraulic Sea Star-Teleflex
Sewage System: Vacuum Vacuflush
Fresh Water System: Pressurized
Bilge Water Filtration: (3) Bilge pumps
Propellers: Spare set propellers reconditioned

COMMUNICATION, NAVIGATION & ENTERTAINMENT SYSTEMS

Communication Systems
VHF: (2) – cockpit & main helm with additional ICOM VHF – flybridge – 2019
Wi-Fi: Aigean AN-700 Dual Band WIFI router
Peplink Router – cell antenna

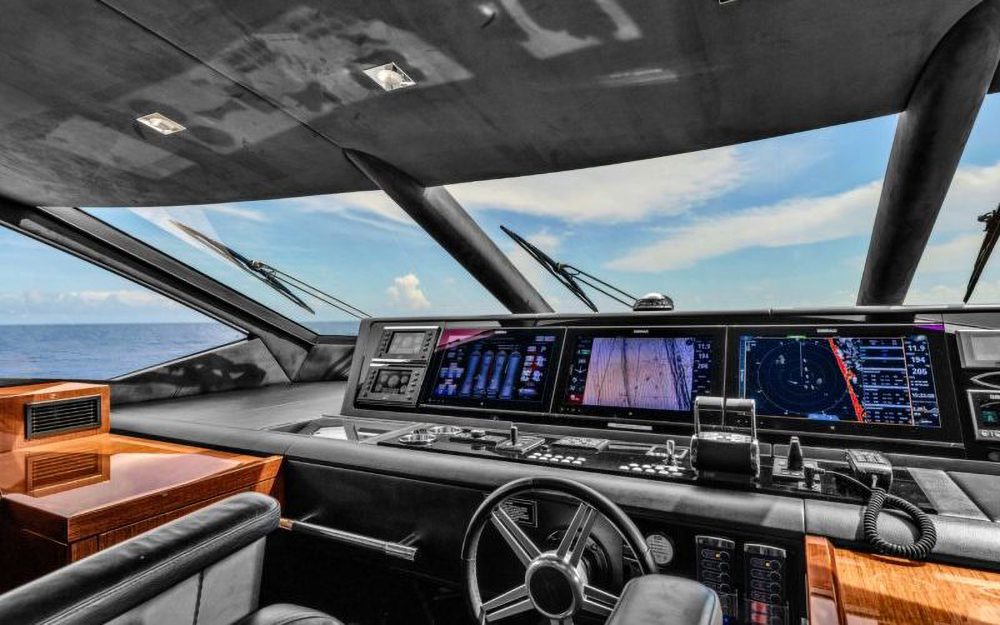

Navigation Systems
Radar: (1) Garmin – 2018
Auto Pilot: (1) Garmin GHC20 – 2018
Depth Sounder: (1) Garmin GSD24 Digital Sounder – cockpit & main helm – 2018
GPS: (1) Garmin AIS600 – 2018
Laser Plotter: (2) Garmin GPSMap 7616SSY – 2018
(2) Garmin GPSMAP 7612 – 2018
(1) Garmin GPSMAP 8215 MFD – 2018
Wind/Speed Log: (1) Garmin Sirius Weather – 2018
Searchllight: ARC Searchlight
Other: Fuel Tank Monitor
MAN OEM digital displays – lower helm station – 2020

Entertainment System
Video Equipment TV’s:KVH Tracvision TV6 N
American Sat TV
(2) Direct TV receivers
(1) 40” Samsung smart TV – salon
(1) 43” Samsung TV and KVH direct TV with 2 receivers– master stateroom
(1) 43” Sharp Aquos 15” LCD TV – VIP
Audio Equipment Stereo’s: Fusion sound system with a Fusion subwoofer controlled by Bluetooth – flybridge
Bose home theatre system – salon
VC AM/FM/XM/CD player with speakers – master, VIP, guest stateroom, crew

GALLEY & LAUNDRY EQUIPMENT

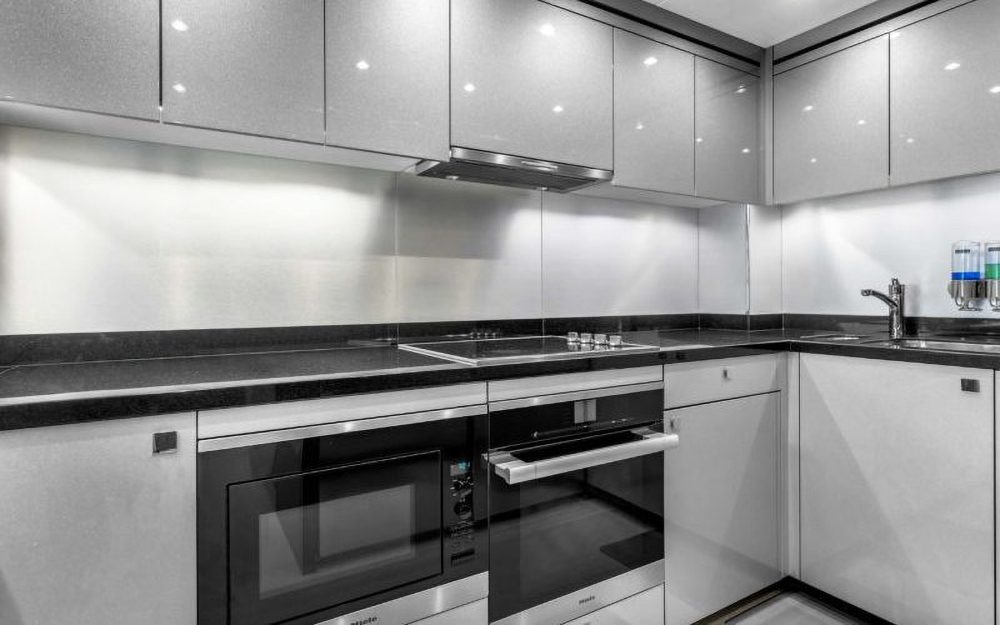

Main Galley Equipment
Cooking Equipment: NEFF four burner stove with glass cooktop – 2020
Microwave oven – Built-in grill two convection Breville – 2021
Refrigeration/Freezer: Upright LG refrigerator model LRBP103IT SS with separate freezer compartment – 2020
Dishwasher: Miele Incognito under counter SS dishwasher – 2019
Other: Raritan icemaker – 2019
Garbage disposal – Badger I disposal, 1/3 Hp – 2020
Single stainless steel deep well sink

Additional Galley Equipment
Refrigeration/Freezer: Refrigerator – flybridge
Avanti wine cooler – master – 2018
Other: BBQ electric grill – flybridge – 2019
Yeti ice chest – flybridge

Laundry Equipment
Main Laundry Equipment: Washer / Dryer, full size, dryer – 2014

TENDERS & TOYS

Tenders: Zodiac DL400 13’ RIB with 50 Hp Yamaha and Garmin Chartplotter – 2020
Dive Gear: Hoka system w/air tank for bottom cleaning and propeller clearing

DECK EQUIPMENT

Anchor Windlass System: Lewmar Combination Chain/Rope
Anchors: 80 lbs. stainless steel plough anchor controlled from both helms with fresh water wash down
Spare anchor added & mounted in bow locker
Anchor Chain: 229’
Boat Crane and Davits: Marquipt model 5265 – 880lbs.
Passerelle: Stainless steel hydraulic
Flybridge table: All teak replaced with ¾” teak – 2016
Bimini Top: Bimini top replaced – 2019
Lights: (4) Ocean LED blue – underwater
(4) multi colored on Radar arch

SECURITY, FIRE FIGHTING & SAFETY EQUIPMENT

Fire Fighting Equipment
Fire Control System: Flagship Marine Systems Monitor Security monitoring high water, heat or loss of electricity
Fire Extinguishers: (7) dry chemical (2) fixed/clean agent
Alarms: (6) smoke detectors
Carbon monoxide detectors

Safety Equipment
Life Rafts: Revere 4-person coastal life raft – 2020
EPIRBS: (1)
Other: All Coast Guard required safety equipment

ACCOMMODATIONS

GENERAL

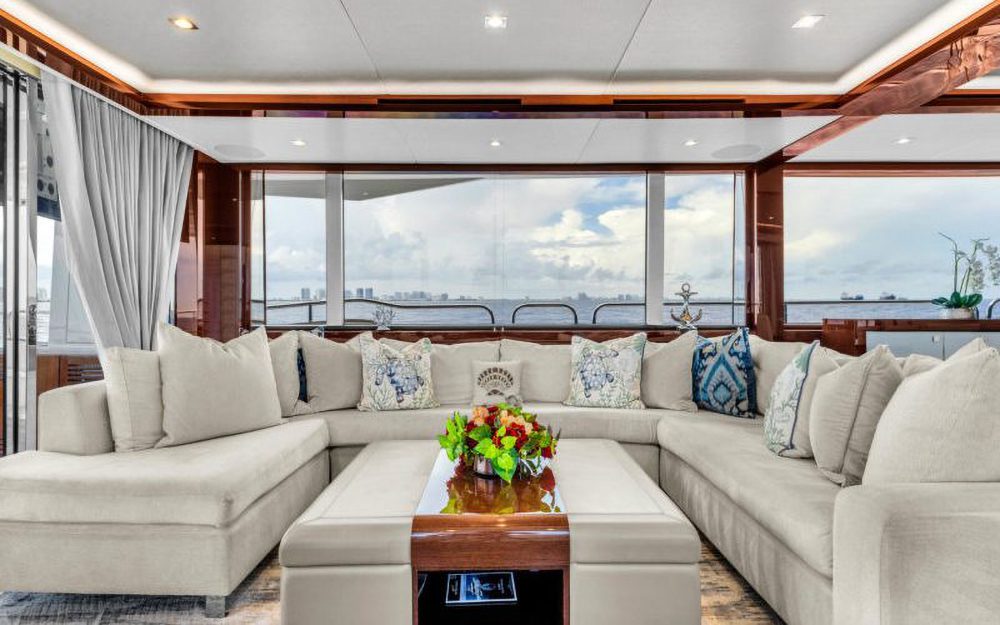

Trinity is a beautifully maintained flybridge motor yacht, offering a blend of style, comfort, and performance. With spacious accommodations and a well-thought-out layout, it features a generous saloon, dining area, and a galley on the main deck, making it ideal for entertaining or extended cruising. The flybridge provides ample space for outdoor enjoyment, while the elegant interiors ensure a luxurious onboard experience. Built with Princess’s renowned craftsmanship and attention to detail, Trinity delivers exceptional sea-keeping capabilities and a smooth ride, making it a standout in its class.

OWNER

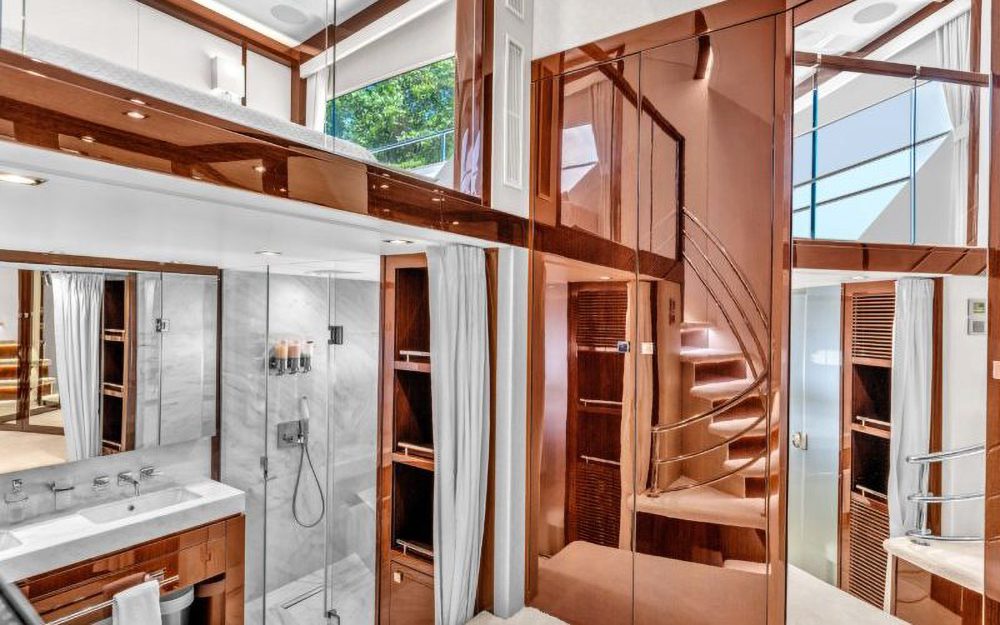

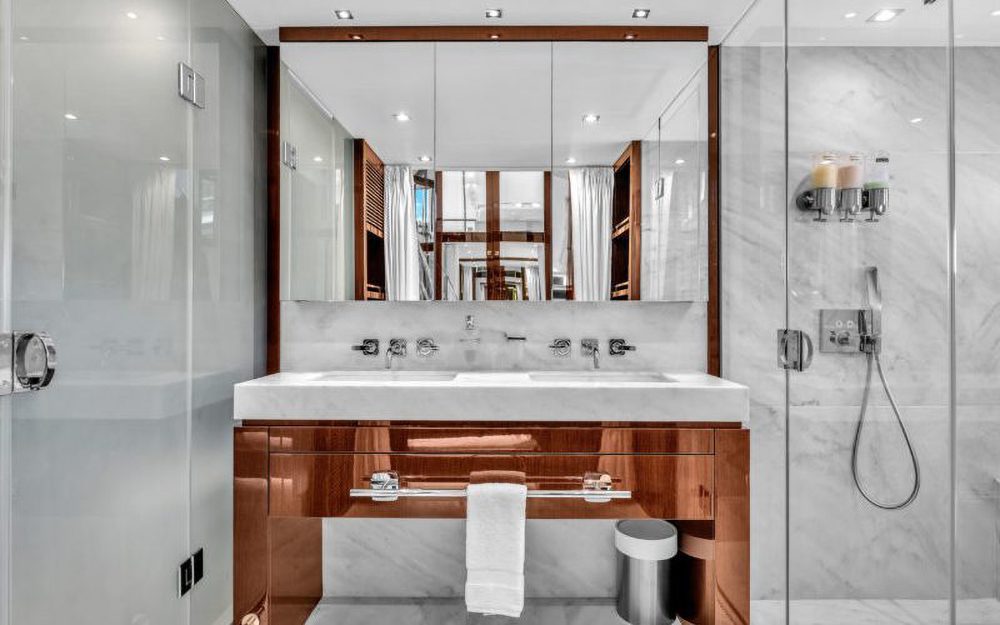

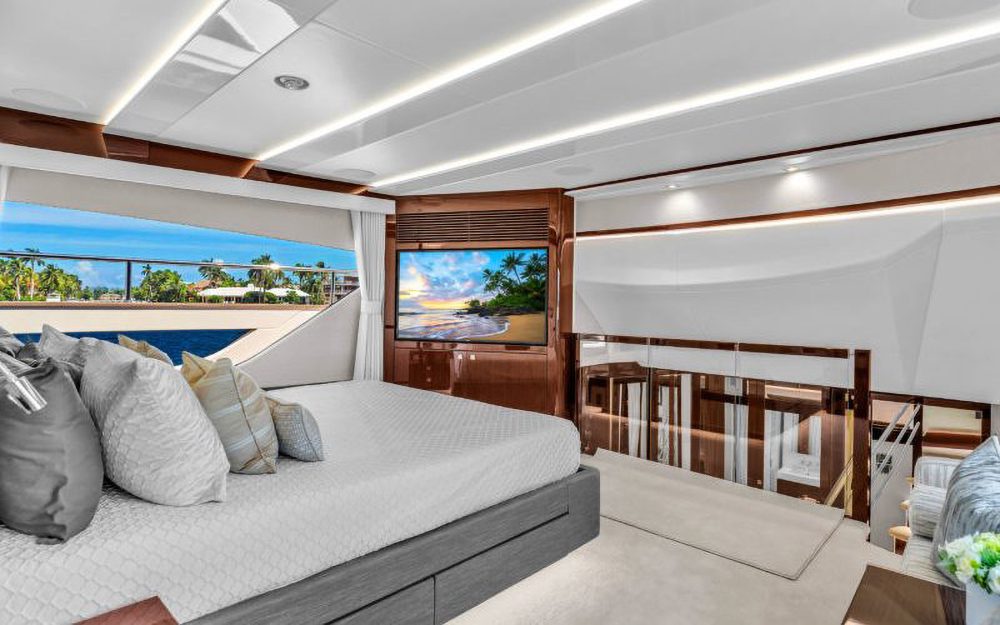

The master stateroom on the Trinity is a full-beam oasis of luxury and comfort. It features a spacious layout with a queen-sized bed, couch to starboard, and large windows allowing natural light to flood in, and elegant finishes throughout. Ample storage is provided with built-in wardrobes, while a concealed safe behind a framed picture adds a discreet security feature for valuables. The en-suite bathroom offers a walk-in shower and high-end fittings, ensuring a private and relaxing space for the owner. This stateroom is designed to be both functional and inviting, perfect for extended stays onboard.

GUESTS

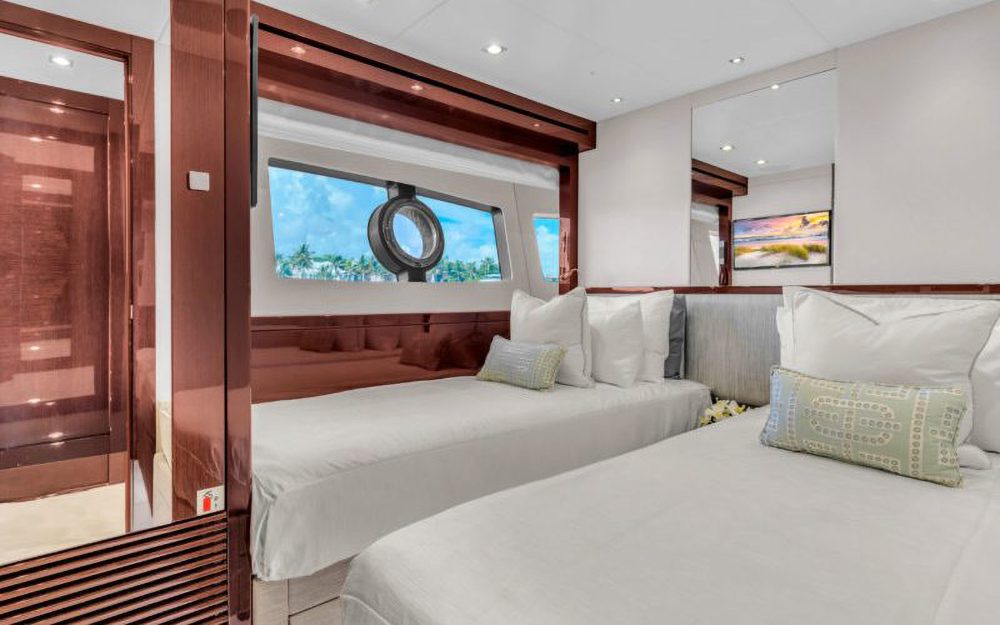

The Trinity offers well-appointed accommodations for guests, featuring a spacious VIP stateroom and a versatile twin guest stateroom. The VIP cabin is located forward and includes a queen-sized bed, ample storage, and its own en-suite bathroom, providing comfort and privacy for guests. The twin guest stateroom is fitted with two single beds and includes a Pullman berth that was added by American Yact Restoration. It matches the original Princess wood/finish, folds up and away against the wall when not in use, allowing for additional sleeping capacity when needed. It also has its own en-suite facilities, ensuring all guests enjoy a comfortable and luxurious stay.

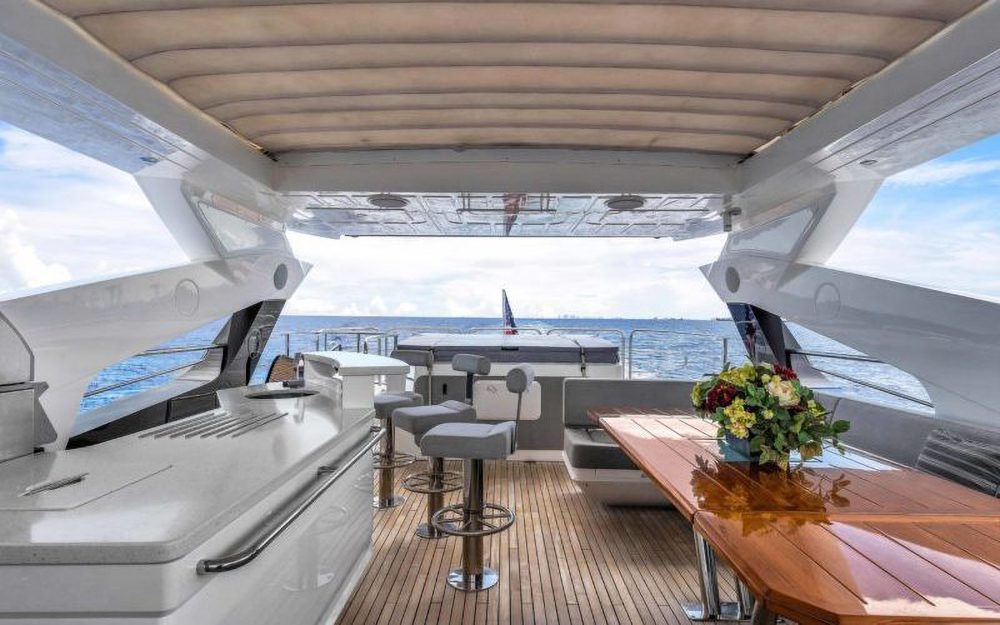

FLYBRIDGE

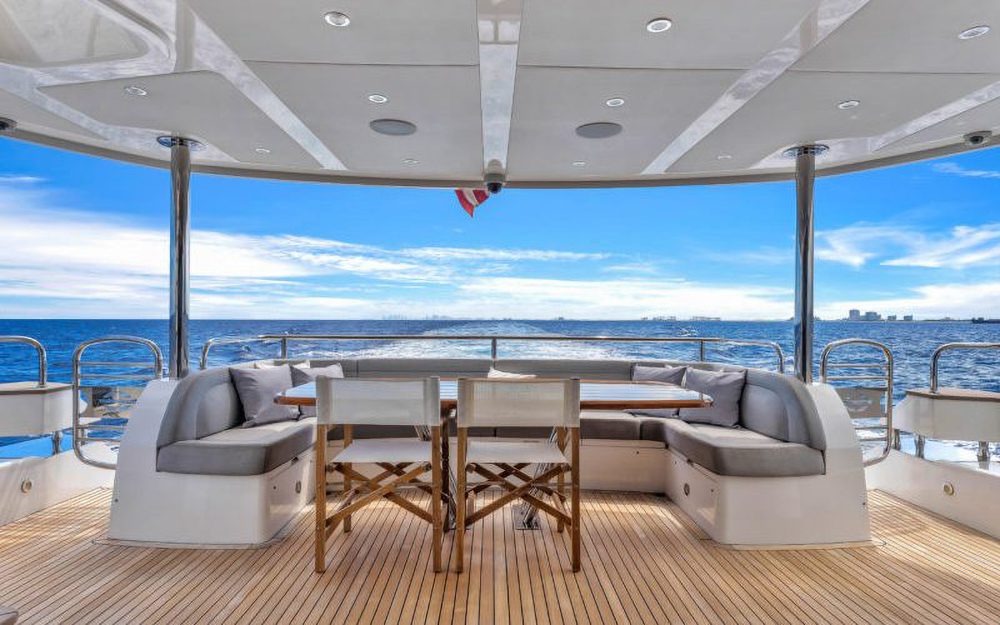

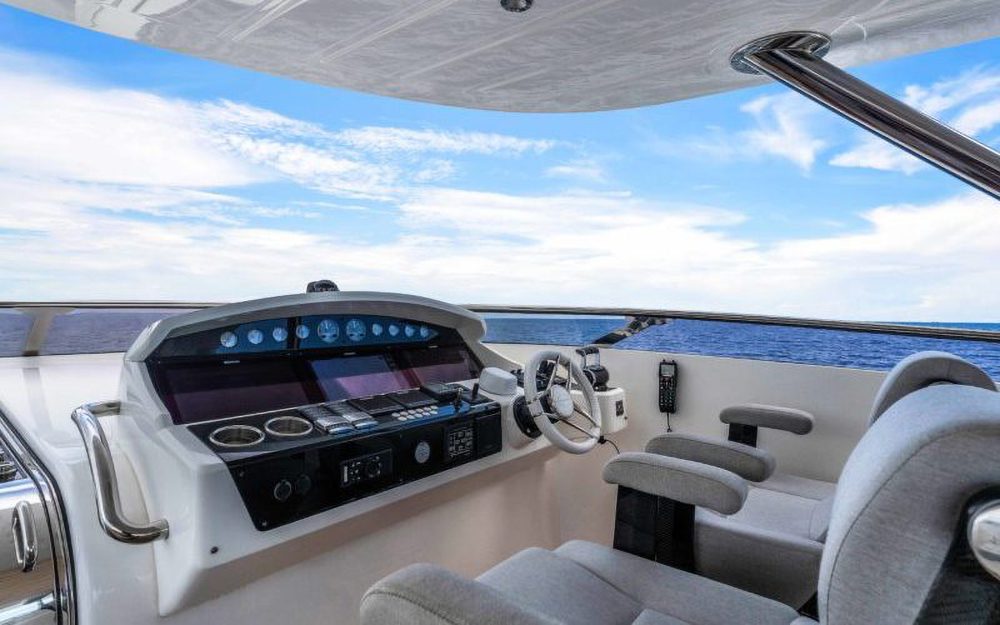

The flybridge Trinity offers a spacious and well-designed outdoor area, ideal for entertaining and relaxing. It features two custom Lebroc bound chairs for comfortable seating at the helm, ensuring a luxurious experience for the captain and co-pilot. The area is equipped with a full wet bar and a BBQ, making it perfect for social gatherings. Additionally, the flybridge accommodates a 13′ RIB tender, easily accessible via the davit, providing convenient access to shore or exploring nearby waters.

CREW
Located aft, the crew cabin offers private accommodations with twin berths, storage, and an ensuite bathroom. This layout ensures that crew members have a dedicated space, separate from the main guest areas, while still being easily accessible for service. The aft location also provides convenient access to the engine room and other operational areas, enhancing the efficiency of onboard management.

BROKER’S COMMENTS

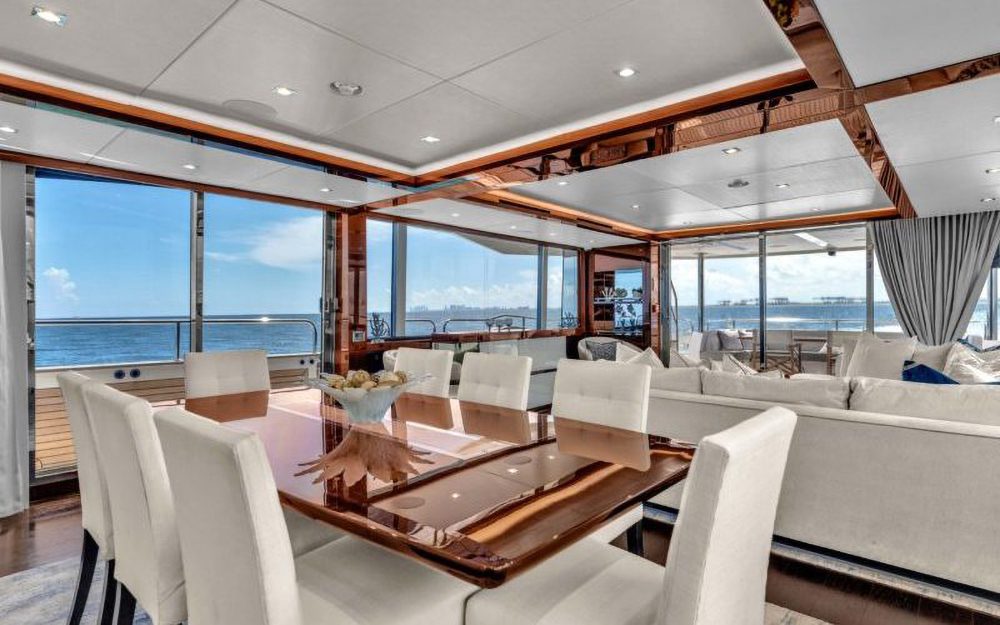

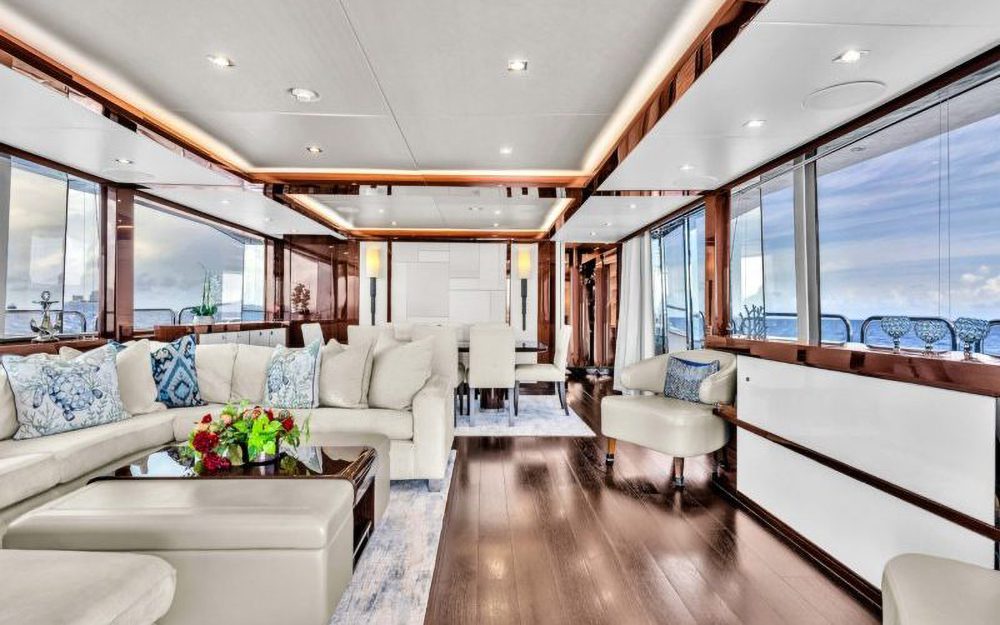

Trinity accommodates seven guests in three ensuite cabins, including a full-beam master stateroom, offering luxurious comfort. The galley is conveniently located on the main deck, complemented by a large separate dining area and a generous salon. As one of Princess’s most popular models, Trinity features a spacious flybridge with a full wet bar, BBQ, and a custom $15,000 flybridge table upgrade. The yacht’s modified deep V GRP hull design ensures unmatched seakeeping and performance, aided by bow and stern thrusters for easy maneuvering. A remote yacht controller simplifies docking, while the twin 1100 Hp MAN V10 diesel engines deliver speeds of up to 32 knots. A recent 1,000-hour service was completed in October 2024, and the vessel is equipped with multiple spare main engine parts and a spare AC pump for added reliability.
