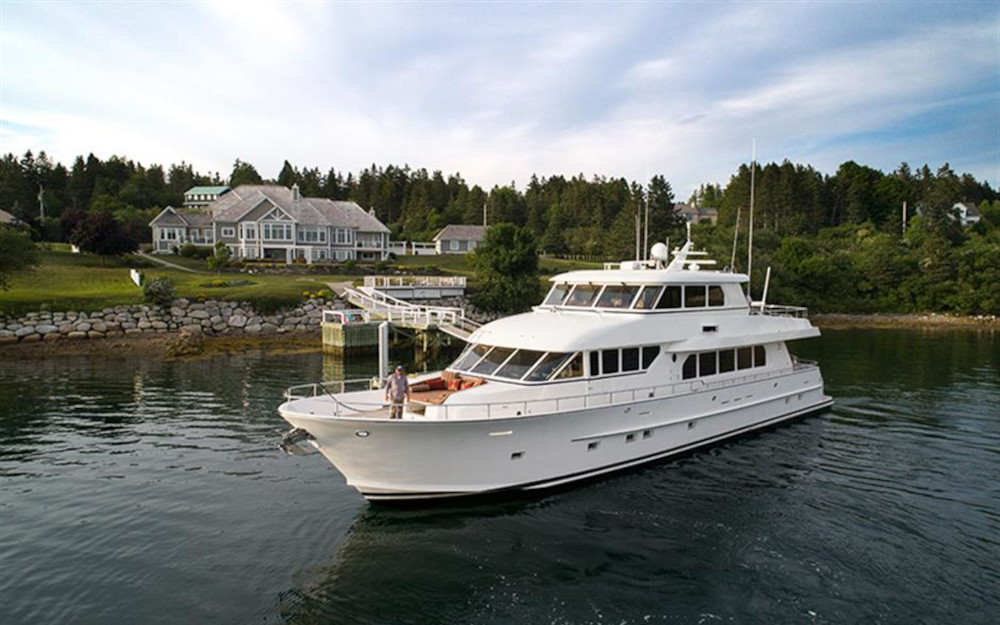

94′ Paragon 2009 RHAPSODY

SPECIFICATIONS

Length: 94′ 0″ (28.65)
Beam: 21′ 7″
Draft: 6′ 4″
Year: 2009
Refit: 2018
Builder: Paragon
Hull Configuration: Semi Displacement
Hull Material: Composite
Gross Tonnage: 150
Flag: Canada
Engines: 2x Caterpillar Model: C-32
Fuel: 15141.64 / 4000
Water: 2839.06 / 750
Cruising speed: 14 Knots
Max speed: 20 Knots
Staterooms: 3
Guests: 8
Location: Chesapeake, Virginia, United States

WALKTHROUGH

Not Available for Sale to Us Residents While in Us Waters.

Walking Into the Salon Through Double Automatic Sliding Doors Is a Spacious and Comfortable Sofa as Well as an Elegant Armchair. To Starboard Side, Are Cabinets, Built-in Fireplace and a Pop-up Tv. At the Forward End of the Salon on the Port Side, Is a Desk/counter Area With Drawers and Lots of Storage Space. Across From the Desk/counter Area Is a Wet Bar With Ice Maker and Wine Storage Along With a Cabinet With Audio/video Components. Forward of the Wet Bar on the Starboard Side Amid-ship, Is a Stairwell to the Large Full-beam Private Master Stateroom.

Moving Forward to Port, Is a Large and Open Chef-style Galley With a Viking Gas Range, Sub-zero Refrigerator/freezer, Dishwasher, Pantry, High-low Pop Up Appliance Center, and a “dutch” Door Accessing the Covered Walk-around Decks (Great for Crew Moving in and Out Without Disturbing the Salon Area).

Forward of the Galley Is a Formal Dining Area With Seating for 6 Guests and Built-in Storage Cabinets. Between the Galley and Dining Area Is an Automatic Divide That Separates the Galley From the Dining Area on-demand. The Area Has Direct Access to the Foredeck Sun Lounge Seating Thru Sliding Doors on Both Port and Starboard Sides. On the Starboard Side Is a Staircase Leading to the Skylounge and a Separate Stairway Leading to the Lower Guest Staterooms. At the Landing of the Forward Stairway to the Left (Aft), Is the Full-beam Vip and to the Right (Forward) Is the Guest Stateroom, Both With Private Ensuite Heads and Stall Showers.

The Forward End of the Enclosed Skylounge Houses a Dash With a Full Array of Electronics and Seating With Two Pompanette Chairs. Directly Aft to Port and Starboard Are L-shaped Settees With Large Wood Finished Tables. To the Aft of the Settees to Starboard Is a Convenience Galley With Sink, Fridge and Microwave, and Storage. To Port Is a Storage Cabinet and a 2-piece Head.

The Skylounge Sliding Door Access the Aft Skylounge Deck With Teak Decking, a “u” Shaped Settee With 2 Tables and a Barbeque/storage and Sink Area to Port. There Are Stairs Leading From This Deck to the Lower Aft Deck.

The Aft Section of the Skylounge Deck Is Equipped With a Davit and Dingy Storage

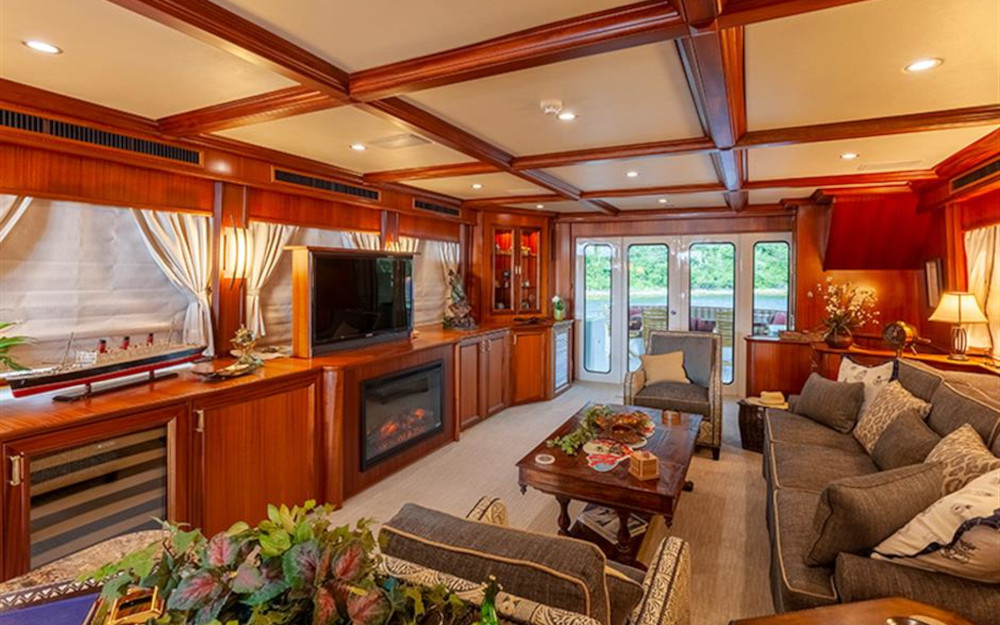

MAIN SALON

Twin Automatic Freeman Sliding Aft Doors With Fixed Glass Windows
Extensive Floor Damping System to Reduce Noise/vibration
Port Aft Stairway With Access to Engine Room, Utility Room, Captain’s Quarters
Carpeted Sole With “soundown” Barrier Padding
Overhead Led Lighting With Dimmer Control
STBD Side Custom Cabinet for Tv/entertainment Center, Built-in Electric Fireplace, Wine Cooler, Large Icemaker, Under- Counter Sink, Bottle & Glass Storage
Stbd Forward Private Stairway Down to Master Stateroom
Air-conditioning System
Separate Work Reading Area With Granite Countertop, Drawers and Storage and Bar-type Stools

DAY HEAD

Starboard Side Window
“Tecma” Head
Exhaust Fan
Overhead Led Lights on Dimmer
110v Ac Gfi Protected Duplex Receptacle
Accent Lights at Cabinet Base & Valance

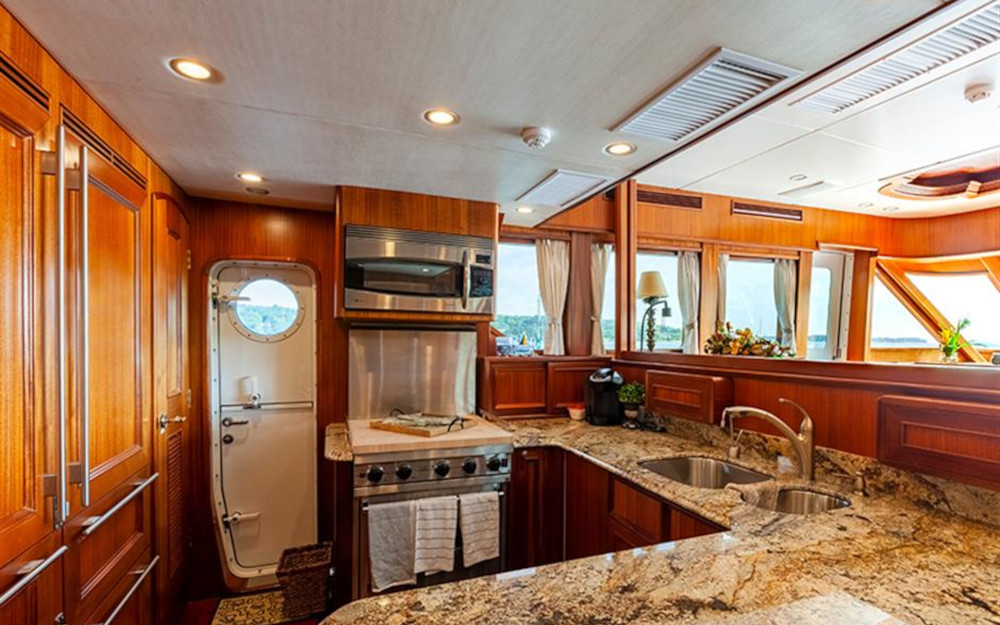

GALLEY

Granite Counter Tops
Wood Floating Floor System – Cherry
Air Conditioning System
Mahogany Wood W/ Satin Finish
(2) Sub-zero Full Height Refrigerator With Two Freezer Drawers at Bottom Section
Fisher Paykel Double Drawer Dishwasher
Ge “profile” Trash Compactor; Ge Microwave With Exhaust Fan
Viking Gas Stove/oven With Removable Butcher Block Top
Soap Dispenser
Instant Hot Water Dispenser
Insinkerator Stainless Garbage Disposal With Countertop Air Switch
Port-side Hinged Freeman Dutch Door From Galley to Side Deck

DINING AREA

Port & Starboard Side Freeman Sliding Doors With Access to Side Decks
Cherry Sole
Electric Operated Divider to Separate Dining and Galley Areas
Storage Cabinets for China and Glasses for Dining Area
Wood Dining Table With Burl Inlay With Seating for 6 Guests
10mm Clear Forward Windshield Glass With Burl Cabinet Top
Tinted Tempered Windows From Side Doors Aft
Ac & Dc Electrical Panels
Led Overhead Lighting With Dimmer Control
Feature Medallion Recessed Ceiling With Feature and Rope Lighting
Starboard Side Stairways Up to Skylounge and to Lower Staterooms
Stereo Speakers in Overhead W/ Volume Control

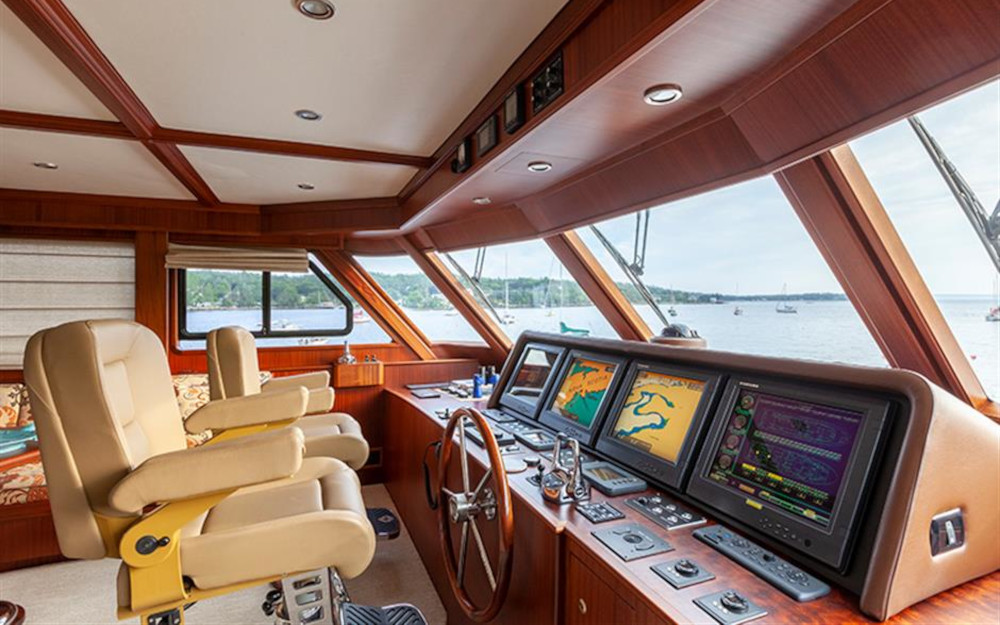

ENCLOSED FLYBRIDGE

Center Helm Station With (2) “pompanette” Helm Chairs, Complete Engine Instrumentation & Alarms, Navigational Electronic Equipment, “night Watch” Ships Systems Monitoring Computer
Port & Stbd Wing Command Stations With Engine Controls, Bow & Stern Thruster Controls
Air Conditioning, Heating, and Defrosting Systems
Chart Storage Lockers
Two “l” Shaped Settee With Wood Tables
Aft Sliding Door With Access to Aft Deck
Carpeted Sole
10mm Clear Fwd Windshield Glass
Tinted Tempered Windows
Led Overhead Lighting With Dimmer Control and Rope Lighting
Overhead Nav Lights (Red)
Stereo Speakers in Overhead W/volume Control
Aft of Starboard Settee Convenience Galley With Sink, Refrigerator, Drawer Microwave and Drawers/storage
Aft of Port Settee Storage Cabinet and Enclosed Head

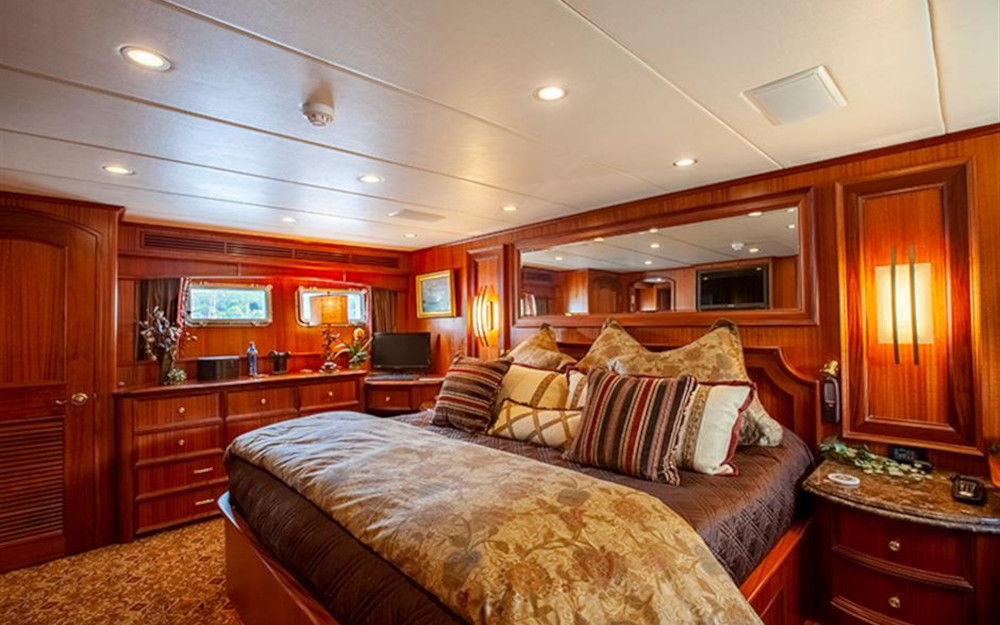

MASTER STATEROOM

Accessed via Private Stairway From Salon
King-size Walkaround Berth With Large Drawers & Storage Underneath
Nightstands With Drawers
Cedar-lined Hanging & Walk-in Closet
Sofa to Starboard
Combo Washer/dryer to Port
Dresser Cabinet, Desk/vanity Area to Port
(2) Wall-mounted Reading Lights
Overhead Led Lights on Dimmer Controls
Entertainment System
Air Conditioning System

MASTER HEAD

His and Her Heads
Portlight on the Port Side
“Tecma” Full-size Ceramic Bowl Head
Grohe Faucets
Fully Enclosed Shower With Grohe Controls
110v Ac Duplex Receptacles (Gfi Type in Head)
Accent Lighting (Per Plan)
Hidden Overhead Exhaust Fan

VIP STATEROOM

Queen Walk-around With Storage Beneath – Drawers and Hinged Access
Portside Settee That Converts to a Full-size Berth
Air Conditioning System
Cedar-lined Hanging Lockers
Entertainment System
Overhead Led Lights on Dimmer Control
(2) Wall-mounted Reading Lights
(2) Opening Freeman Port Lights at Stbd, and One to Port

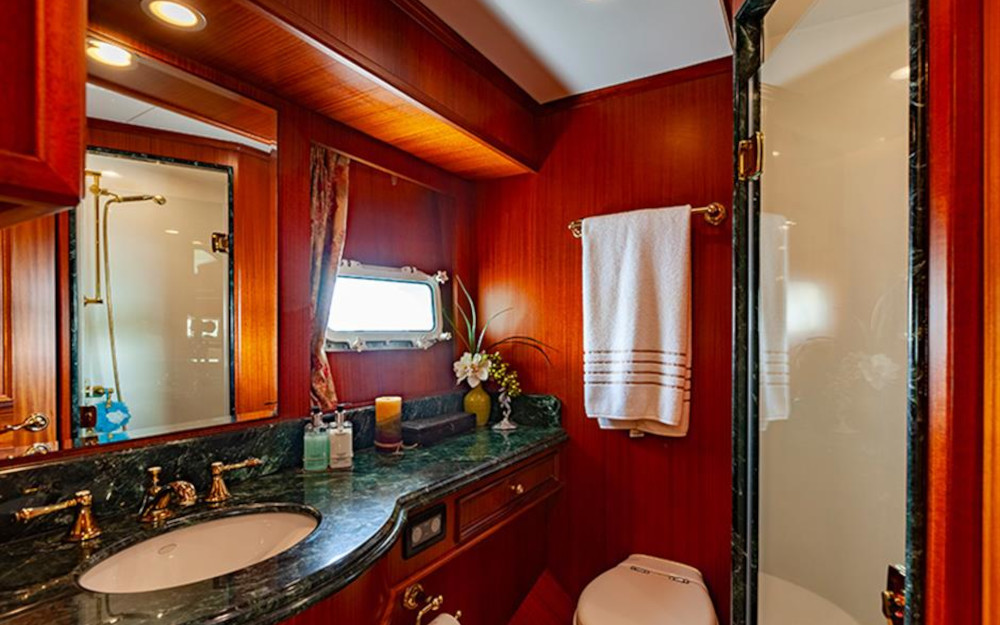

VIP HEAD

Freeman Port Light
Granite Counter-top & Cherry Wood Flooring
Ceramic Sink
Full Enclosed Shower
Louvered Lockers
“Tecma” Head
Grohe Faucets and Shower Controls
Accent Lighting (Per Plan)
110v Ac Duplex Receptacles (Gfi Type in Head)
Overhead Exhaust Fan in the Head

GUEST STATEROOM

Queen-size Island Berth With Hinged Access to Storage Underneath
Air Conditioning System
Cedar-lined Hanging Lockers
Overhead Led Lights on Dimmer Control
Port & Starboard Outboard Storage Lockers
“Freeman” Escape/ventilation Hatch W/ “oceanair” Screens
(2) Wall-mounted Reading Lights
Entertainment System
Built-in Desk

GUEST HEAD

Port Light
Granite Countertop and Cherry Wood Flooring
Ceramic Sink
Full Enclosed Shower
Louvered Lockers
Grohe Faucets and Shower Controls
Accent Lighting (Per Plan)

CREW QUARTERS

Captain’s Quarters
Queen-size Berth
Hanging Locker
Built-in Desk
Air Conditioning System
Entertainment System
Head With Shower Accessed From Either Captains’ Quarters and General Crew Area

Crew Area / Galley
Countertop, Built-in Sink, Microwave
Drawers, Storage Cabinets
Freezer
TV
Air Conditioning System
Fold-down Berth With Sliding Doors to Separate Area From Hallway

AFT UTILITY AREA

Accessed From Swim Platform or Salon/main Deck
Ac & Dc Breaker Panels
Night Watch Monitoring Display
Air Conditioning System
Stereo and Speakers With Volume Controls
Industrial Hard Rubber Mat Flooring (Non-slip)
Formica Wall Coverings
Watertight “freeman “door to Swim Deck
Direct Access From Swim Platform to Engine Room
(2) Opening Port Lights, Port Side by Extra Crew Berths, Fold-down Berth Port Side
Polished Stainless Steel Grab Rails (Per Plan)
Large Counter-tops & Spare Parts Storage Lockers
S.s. Air Compressor Hook-up
(3) 110v Ac Receptacles
Crew Amenities: Tv, Corian or Formica Countertops, S.s. Sink With Faucet, Microwave, Subzero Under-counter Refrigerator & Sub-zero Under Counter Freezer, Lockers for Dishes and Miscellaneous
Full-size Ge Washer/dryer (Stacked)
Storage and Counter Area
Overhead Led Lighting

COMMUNICATION AND NAVIGATION SYSTEMS

Skylounge Electronics
Navnet 3d
(4) Furuno 17” Monitors
Furuno Dual 12kw Navnet Radars
6 Ft Open Array Furuno Dual Wass Gps
Furuno Digital Fishfinder/sounder
Furuno F150 Instruments
Icom Vhf Radio W/command Mic & Remote
Comrod Antennas
Simrad Autopilot W/ Handheld Remote Backup
Nauticomp Pc Computer
Wxworx Xm Satellite Weather
Skymate Senrtymate System
Panasonic Pabx Intercom Phone System
Elbex Cctv Cameras
Monitor for All Onboard Cameras –foredeck Looking Forward, (1) on Each Side Deck, Aft Deck Looking Aft, Arch Looking Aft, Engine Room Fore and Aft
Flir Camera
ACR Spotlight Controls

Crew Quarters Electronics
Furuno F150 Nav Repeater
Icom Vhf Radio
Furuno Navnet Data Displayed on Lcd Tv for Monitoring
CCTV Displayed on Tv for Monitoring

ELECTRICAL SYSTEMS

Northern Lights 30kw Diesel Generator With Exhaust Silencers, Sound Shield & Custom Gas/water Separators – 2940 Hours (Jan 2020)
Northern Lights 20kw Diesel Generator With Exhaust Silencers, Sound Shield & Custom Gas/water Separators – 1949 Hours (Jan 2020)
(4) “odyssey” Pc 1700 Dry-cell Batteries for Main Engine Start (2 Ea. Engine) 2 “odyssey” Pc 1200 Dry-cell Batteries for Generator Start (1 Ea. Generator) Sixteen “trojan” L-16 6 Volt Batteries for Ships 24 Volt Dc Service System
(2) “trace” 4kw/120 Amp Inverter/charger for Charging Ships Battery System, Interface for 8kw and House Battery Bank Monitoring Panel
Newmar 24 Volt Battery Charger for Main Engine Batteries
Newmar 24 Volt Battery Charger for Service Batteries (Back Up Charger)
Newmar 24v to 12v Transformers
(2) 75 Amp (Engine Alternators) for Charging Engine Start Batteries
(2) 160 Amp (Large Frame Engine Alternators) for Charging Ships Service Batteries
(2) Charles Marine Iso-boost Shore Power Isolation Transformers
Marinco Shore Power 125/250 Vac
50 Amp Inlets Aft & One Fwd
Marinco 100 Amp Shore Power 125/250 Inlet Aft on a Glendenning Cable Master and One 75 Foot Extender
Marinco Phone/tv Inlets (One Aft & One Fwd)
75’ 125/250 Amp Shore Power Cords
Ac & Dc Back-lit Distribution/circuit Breaker Panel W/digital Amp & Volt Meters
Shielded Wiring for Stereo/tv Speaker Systems
Color-coded High Quality Shielded Co-ax With “Pro-connect” Crimp on Connectors for Tvs and Miscellaneous
Electrolysis and Bonding System With Copper Strapping Connected to Two Zinc Plates at Transom
AC Duplex Receptacles Throughout With Gfi Protection in Dedicated Areas “bep” Vapor Proof Battery Selector Switches
“Exalto” Heavy-duty Variable Speed Windshield Wiper System
International Navigation Lights
“ACR” High Intensity Spotlights With Skylounge Station Controls
“PBX” Type Phone/intercom System

SKYLOUNGE AFT DECK

“U” Shaped Frp Seats With Two Frp Tables With Storage Under
Frp Arch & Mast Tower With (5) Cantalupi Lights on Dimmer Controls Frp Hardtop With Lighting
Portside Viking Gas Bbq, Sink, and Lockers
Accent Lighting at Base of All Frp Cabinets and Seating Areas
Aft Port Boat Deck, Integral Steps Down to Aft Deck With S.s. Framed Sliding Hatch/ Cover
Teak Decks, Galley/dinette & Fly-bridge Sections
2200 Lb Nautical Structures Hydraulic Davit With Hydraulic Rotation
S.s. Handrails Around Boat Deck
Freshwater Wash Down & Outboard Engine Flush Hook Up Station
Decks Cambered & Drains Plumbed to Insure No Standing Water

MAIN DECK

All Exterior Stainless Steel # 316 Grade With Welds Ground Smooth and Highly Polished
Seating Area at Bow With Removable Table and Filler Piece for Transition Into Large Sun Pad Lounge
Large Storage Lockers Port & Starboard at Bow Area
Central Fuel Tank Fills Port & Starboard
Cambered Decks W/ Outboard Drain Channels
Watertight Forward Deck Hatch, Access to Anchor Well (“freeman Hatch”)
Forward Deck Hatch & Ventilation/escape Hatch for Forward Guest Stateroom
“Freeman Hatch” Freshwater and Saltwater Washdown Hook Up at Bow Area
Fire Hose at Forward Starboard Bow Locker With 15’ Hose & Fire Hose Nozzle
Built-in, High-pressure Anchor Chain Wash System (Freshwater)
High Polished S.s. Handrails
250 Lb. S.s. Polished Plow Type Anchor, 400’x 5/8” High Test Chain “nautical Structures” 2200 Lb.
S.s. Hawse Holes and Bollards Port & Starboard Bulwark Doors
Overhead Cantalupi Lights on Dimmer Controls for Walk-arounds
“Underwater Lights” at Walkarounds on Forward Main Deck
Cantalupi Deck Safety Lights
“Marquipt” Boarding Ladder – Access at Port and Starboard Mid-side Deck
Teak for All Main Decks
Warping Winches – Port & Starboard
Portside Integral Stairway Up to Boat Deck/fly-bridge (Teak Steps)
FRP Starboard Side Storage Cabinet With Refrigerator
FRP Molded Bench Seat With Large Dining Tables
Portside Locker With Engine Controls/thrusters, Autopilot Joystick in Lieu of Steering Wheel
Overhead Led Lights on Dimmer Control
Overhead Stereo Speakers
VHF Radio Station Cabinet Pbx Phone System Hook Up
Aft Facing Hailer Horn Location
Floodlights Facing Aft
Fire Hose at Port Side W/ 15’ Hose & Fire Hose Nozzle
Swim Platform
Teak Decking With Stairway Port & Starboard, Up to Aft Deck (Teak Steps)
Hydraulic Stow Away Swim Ladder Inside Swim Platform
Hands-free Hot/cold Water Shower
(3) Extra-large Pop-up Cleats, Port Center & Starboard
Watertight “freeman” Door, Access to Utility/crew & Engine Room
S.s. Rails on Stairs Up to Aft Deck
Water-proof Safety Lights on Stairs Up to Aft Deck
Salt-water Hook Up
(4) “underwater” Floodlights, on Transom Underwater
(4) S.s. “u” Rails Around Swim Platform
Maxwell Liberty 2500 Stern Windlass 2500, 250’ Rode and 75’ Chain
Freshwater Shower on Swim Platform
Salt-water Wash Down at Bow and Stern

SWIM PLATFORM

Teak Decking With Stairway Port & Starboard, Up to Aft Deck (Teak Steps)
Hydraulic Stow Away Swim Ladder Inside Swim Platform
Hands-free Hot/cold Water Shower
(3) Extra-large Pop-up Cleats, Port Center & Starboard
Watertight “freeman” Door, Access to Utility/crew & Engine Room
S.s. Rails on Stairs Up to Aft Deck
Water-proof Safety Lights on Stairs Up to Aft Deck
Salt-water Hook Up
(4) “underwater” Flood Lights, on Transom Underwater
(4) S.s. “u” Rails Around Swim Platform
Maxwell Liberty 2500 Stern Windlass 2500, 250’ Rode and 75’ Chain
Fresh Water Shower on Swim Platform
Salt-water Wash Down at Bow and Stern

MAIN MACHINERY

Twin Caterpillar C-32 1550 Bhp Diesel Engines With Remote Zf #2050a Electronic Marine Reduction Gears Using a Torsional Coupling and Vibration Dampening System
Engine Hours: Port 2078; Starboard 2076 (Jan 2020)
Engines Mounted on “rubber Design” Soft Vibration Dampening Mounts, Engine Installation Shall Be Approved by the Engine Manufacturer, During Installation and at Sea Trials. American Built #316 Stainless Steel Exhaust Risers With S.s Flex Bellows Connecting to Custom Spray Nozzles and Frp Towers With Internal Silencers & Underwater Exhaust
Main Engines Driven to Run the Following: 60 Hp 16” Dual Prop Vortex Bow and Stern Thrusters, 16 Sq Ft. Roll- Fin Stabilizers
Aquamet #22 or Equivalent (3-1/2”) Propeller Shafts in Conjunction With “rubber Design” Flex Couplings at Gear to Shaft Couplings
Water Cooled Exhaust System With 6” Bypass Tubes Aft With Additional Silencers for Bypass Exhaust
Power Train & Exhaust Systems Have Been Designed for Smoothest and Most Quiet Results Possible
Dual Racor 75/1000 Fuel Filters/water Separators With Vacuum Gauges for Each Engine
R.c.i. Fuel Purifiers (Rcm 800) for Each Engine Installed in-line Before
Racors Bronze “v” Struts With Cutlass Bearings
“tides” Dripless Propeller and Rudder Shafts
Glendenning: 2003 Model Electronic Engine Controls at Skylounge Helm, Port & Starboard Bridge Command Stations; Including Remote Control for Aft Deck
Dual Hydraulic Power Assisted Steering System
Two 4” Dia. Posts S.s. Foil Section, Streamlined Rudders
Engine Room Start/stop Panels With Engine Instrument Gauges
Visual and Audio Alarms for Engine Systems at Pilothouse
Wesmar Stabilizers
Aqua Air, 15-ton Chilled Water Air Conditioning and Heating System With Surge-less Startup
Central Vacuum System
Hro Systems Reverse Osmosis Watermaker (1400 G.p.d.) With Freshwater Flush System
Automatic Fire Extinguishing System With Automatic Engine Shut Down “tecma” Marine Heads Throughout
Hydraulic System by Wesmar

ENGINE ROOM AND BILGES

12,000 Btu Air Conditioning System in Engine Room
Engine Room Camera System
S.s. Welded & Polished Engine Beds
Aluminum (Marine Grade 6mm) Fuel Tanks With Proper Sight Gauges, and Accessible 20″ Inspection Plates
Two Sea Chests for Specific Raw Water Intakes
(6) 24 Vdc Heavy Duty Bilge Pumps W/ Ultra-switches High Bilge Water Alarm System
Full Flow S.s. Ball Valves for All Piping Systems
S.s. Air Compressor Hook Up With Hose
125 Vac Oil Change System for Main Engines and Generators
60 Gallon Per Minute Emergency Bilge Pump System for Each Bilge
Fire Hose Pump System With Hose at Forward Deck and Aft Deck
Freshwater Anchor Wash Down System at Bow Anchor Area
Freshwater Hose and Nozzle in Engine Room
Delta “t” Positive Pressure Engine Room Air Intake System to Minimize Water Ingestion W/fire Flaps and Demisters
(1) 30 Gallon and (1) 40 Gallon Hot Water Heater
Central Freshwater Tank Fills, Port & Starboard
Dock Side Water Pressure Hook Up at Bow & Stern W/quick Release Fittings
125 Vac Headhunter Fresh Water System Pumps (2) With Filters
Central Drain System for Upper and Lower Deck Drains, Sinks, Etc. To Minimize Thru Hull Fittings
500 Gallon Holding Tank With Deck Fitting for Pump Out and Two Macerator Pumps for Overboard Discharge (1) 110 Vac Pump & (1) 24 Vdc
110 Vac Florescent Lighting in Engine Room and Utility Room
Marine Grade Bronze Sea Cocks for All Thru Hull Fittings, Bonded to Bonding System
“Whale” High Output Manual Bilge Pump
Stereo Speakers W/volume Controls
Compressed Air System for Buelle Air Horns With Engine Room Air Hose

LAZARETTE

Storage Lockers Port and Starboard for Parts and Equipment
Hanging Locker
Watermaker, Aft Anchor Windlass
(2) Aft Fuel Tanks and Clean Outs
Freeman Door to Swim Platform

HULL DESIGN AND CONSTRUCTION

Full-planning Hull, 13.5 ° Deadrise at Transom, Generous Flair at Bow Sections, Integral Swim Platform
Vessel Scantlings, Construction, Systems, and Installations Meet or Exceed All Applicable Abyc & Abs Standards
One-piece Hull, Hand Laminated Frp Utilizing Bi-directional, and Uni-directional, Knytec, and Cotech High-quality Resin and Vacuum Bagging
Solid Frp Below the Waterline With Vinylester Resin Laminates for Maximum Osmosis Protection
“Interlux Gel-shield” Is Applied to Add Osmosis Protection During Build Time and After
Full-length Hull Girders of High-density Foam Core and Bi & Uni-directional Knytex
Exterior Hull Finish in High Gloss White, Cook Gel Coat With Vinylester Skin Coats Below Water Line4
Upper Deck Area Awl Grip Painted 2018
Smooth Finish on All Bilge Areas

SUPERSTRUCTURE AND DECK

Hand Laminated Frp Utilizing Bi & Uni-directional, Knytech & Cotech W/divinycell Sandwich, High-quality Resin and Vacuum Bagging, Nida Core Per Plan.
Proper High Compression Cores as Required for Hardware Mounting
(4) Main (Watertight) Bulkheads Padded and Cored With Appropriate Sandwich Materials Sylomer Floating Floor System (Per Plan) With Sound Absorption and Insulation
Sylomer Floating Bulkheads (Per Plan) Exterior – Nonskid on Boat Deck

REFIT AND UPGRADES

In 2016 All Lighting Was Updated to Led Throughout the Boat.
During 2018/19 Through Boat Had an Extensive Refit and Refurbishing Performed by Lyman Morse in Maine. The Refit Included Servicing of All Equipment and System, New Soft Goods, the Addition of the Dining Area, Conversion of the Flybridge Area to an Enclosed Skylounge and Repainting of the Upper Deck Areas.
A Complete List of the Refurbishing Completed Is Available

BROKER COMMENTS

Paragon Motor Yachts Has Set the Standard for Building Quality Custom Yachts in the 80′ to 108′ Range. Built by the Only American-owned and Managed Boatyard in Southern Taiwan, Each Paragon Motor Yacht Is the Result of Expert Design and Quality. They Work Closely With Each Client to Design and Build Custom Yachts on Proven Hull Designs, That Yield Exceptional Ranges and an Incredibly Smooth and Quiet Ride. This 94’ Paragon Has a Warm Welcoming Feel as Soon as You Walk Through the Salon Doors to the Open Layout of the Main Deck. Rich Mahogany Can Be Seen Throughout. The Boat Flows Well and Has a Spacious Skylounge and After Deck With All the Amenities for Entertaining

EXCLUSIONS

Personal Items, Artwork, Decor, Cutlery, Dishes, Etc. Full List Will Be Provided
