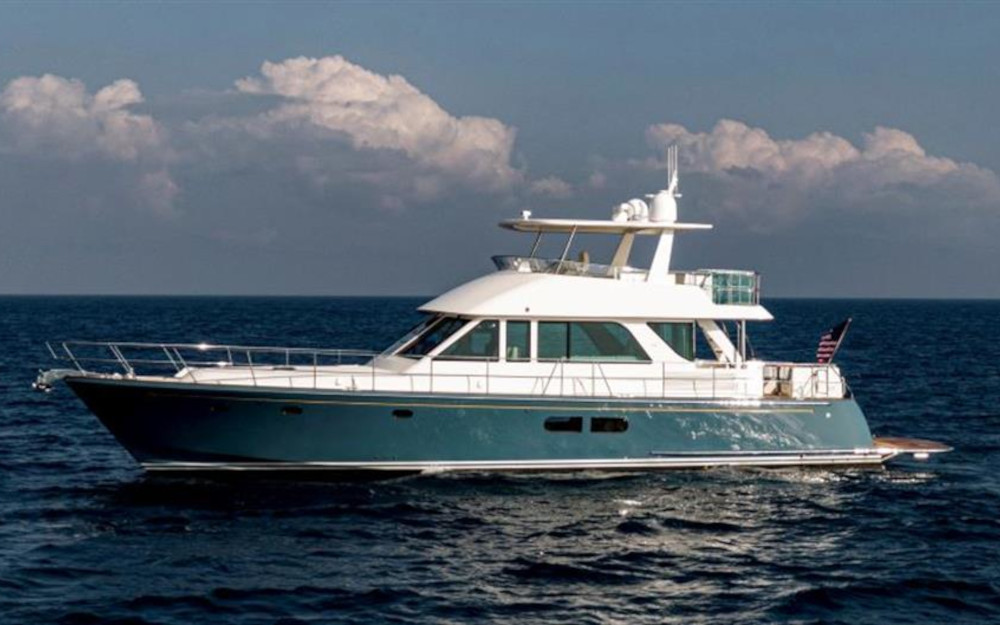

69′ 6” Hunt Yachts 2023 OCEAN 63

SPECIFICATIONS

Length: 69′ 6″ (21.18)
Beam: 18′ 0″ (5.49m)
Draft: 4′ 2″ (1.27m)
Year: 2023
Builder: Hunt Yachts
Model: Ocean 63
Hull Material: Fiberglass
Engines: 2x Volvo Model: Penta IPS 1350
Fuel: 3785.41 / 1000
Water: 1135.62 / 300
Cruising speed: 26 Knots
Max speed: 31 Knots
Staterooms: 3
Location: Seattle, Washington, United States

INTERIOR

Blinds for Salon Windows, Roll Up
40 Hours With Interior Stylist
Cherry, Veneer and Solid Cabin Doors
Cherry, Veneer and Solid Locker Doors
Cherry Faced Drawers
Custom Stainless/teak Grab Rails
Cedar Lined Hanging Lockers in Master Stateroom
Stainless Steel Blind Catches for Drawers and Cabinets
Fabric With Foam Backing Headliner
Blinds and Screens on Overhead Hatches
All Lights to Led
Vimar Switches and Outlets
Teak and Holly Deckhouse Soles
Ceramic Tile, Teak and Holly Head Soles
Teak and Holly Stateroom Soles
Teak Tread With Clear Non-skid Varnish Stairs
Satin Varnish Interior Finish
Cherry Veneer Wall Coverings With Fabric Above Chair Rail
Cherry Veneer and Solid Wood
Tempered, Fritted Direct Glazed Windows

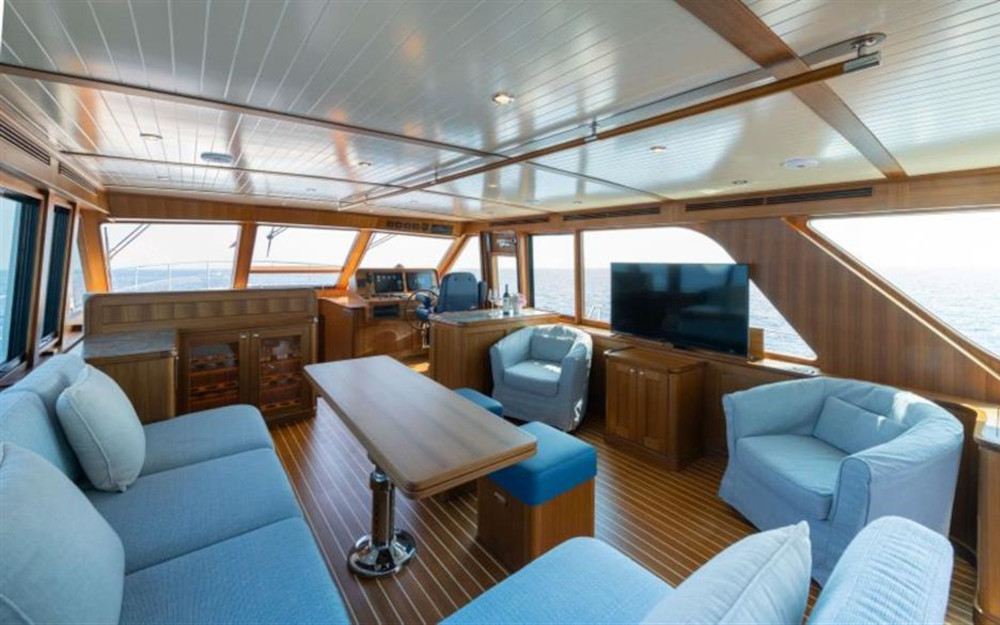

SALON

Straight Settee With Storage Under
2- Fabric Barrel Chairs
Pneumatic Hi-lo, Expandable Cocktail to Dining Table
Straight, Weather Tight Aft Sliding Glass Door With Stainless-steel Frame, Handle and Hardware
Electric Side Windows With Drop-down Port With Blinds
48” Lcd Flat Screen Tv With Lift

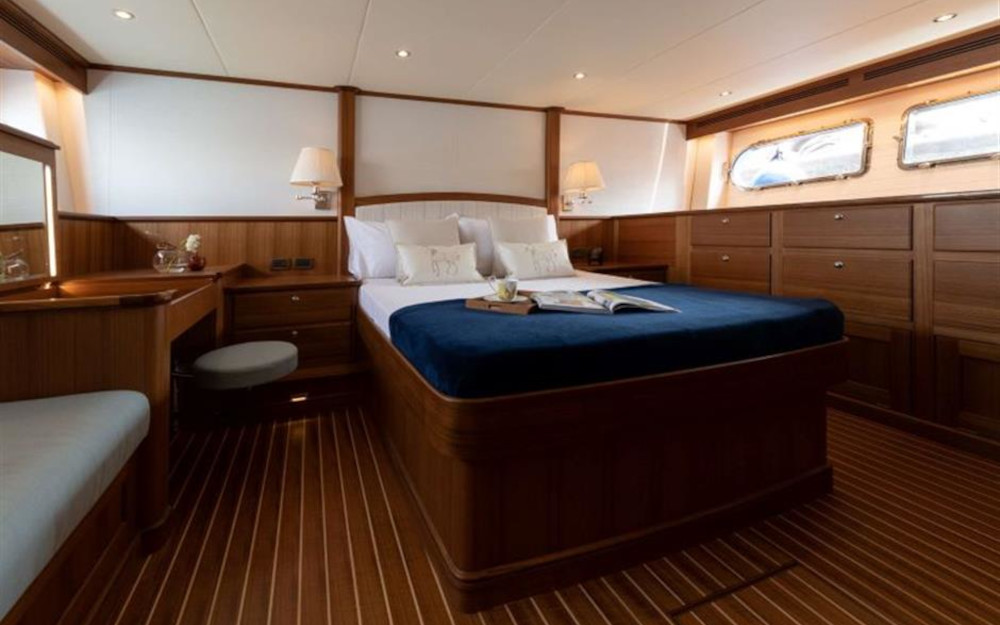

MASTER STATEROOM (ENSUITE)

Full Beam Cabin
Island Queen Berth, Lift-up Storage, Cherry Drawers Beneath
Premium Grade Mattress
Cherry Panel Hanging Lockers, Cedar-lined, Shelves, Micro-switch Led
Cherry Veneer Bureaus
Full-length Mirror
Prep for 24 Inch Tv
Stainless Steel Hull Ports
Fabric Settee With Cushion
Kohler® Faucet, Single Lever, Hand-held Shower, Chrome Shower Rail & Wall Union; Glass Door, Molded Frp, Sump Pump 24 Vdc
Vitreous China Sink, Kohler® Faucet, Single Lever, Chrome Pop-up Drain & P-trap
Tecma® Toilet, Electric, Fresh Water, 24 Vdc
Corian Countertop
Ceramic Tile Sole With Teak and Holly
Varnished Frp Storage Cabinets
Chrome Toilet-Paper Holder, Towel Racks, Rings, Hooks
Exhaust Vent Blower, 24 VDC

VIP STATEROOM (ENSUITE)

Queen Berth
Premium Quality Mattress
Cherry, Solid and Veneer Pocket Doors
Cherry, Cedar Lined, Prep for 24 Inch Tv
Cherry Lockers
Kohler® Faucet, Single Lever, Hand-held Shower, Chrome Shower Rail & Wall Union; Folding Glass Door, Molded Frp, Sump Pump 24 Vdc
Vitreous China Sink, Kohler® Faucet, Single Lever, Chrome Pop-up Drain & P-trap
Tecma® Toilet, Electric, Fresh Water, 24 Vdc
Corian Countertop
Stainless Steel & Chrome Hardware
Fabric, Foam Backed, Removable Headliner

MID CABIN (ENSUITE)

Cherry, Cedar Lined Hanging Locker, Micro Switch for Led Closet Light
Cherry Bureau With Drawers
Twin Berths or Convertible Settee
Kohler® Faucet, Single Lever, Hand-held Shower, Chrome Shower Rail & Wall Union; Sump Pump 24 VDC
Vitreous China Under Mount Sink, Kohler® Faucet, Single Lever, Chrome Pop-up Drain & P-trap
Tecma® Toilet, Electric, Freshwater, 24 Vdc
Corian Countertop
Cherry and Solid Frame Cabin Door, Chrome Hardware, Door Stops
Stainless Steel & Chrome Hardware

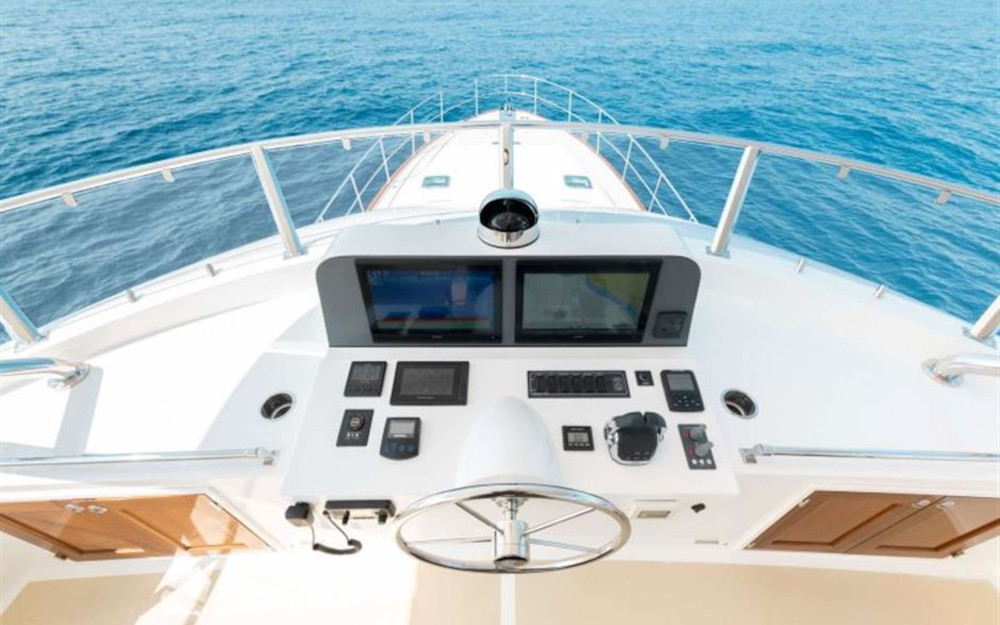

HELM

Single Stidd, Manual Seat
Cherry Covered Chart Drawer
12 & 24 Vdc, 115 & 230 Vac. Circuit-breaker Panel
Custom Cherry Console
Custom, Removable Electronics Console
Controls: Steering, Engine Start/stop, Gearshift, Throttles, Horn, Bow Thruster, Wipers, Bilge Pumps, Exterior Lighting, Running Lights
Pantograph, 24 Vdc, Speed Control, Auto Parking, Fresh-water Wash Windshield Wipers
Windshield Defroster on Starboard Side in Front of Helm
Forward Exterior Windshield Covers
12 Vdc Outlet
Ritchie® Power Damp, 5” Card, Flush Mount Compass
Stainless Steel and Teak Steering Wheel
Fixed Navigation Seat With Cushion

GALLEY (BELOW DECK)

Cherry Panel Cabinets
Corian Countertops
Polished Stainless Steel Sink With Flush Teak Cover
Cherry, Satin Finish Cabinets; Cutlery & Storage Drawers, Storage Lockers Under
Teak and Holly Soles
Single Lever Faucet, Chrome
Stainless Steel Under-counter Mount Refrigerator/freezer, 110v/12v
Miele® 3-burner Cooktop, 230 Vac
Ge® Stainless Steel, Convection, Gourmet Microwave, 110 Vac
Cabinet Slide-out Trash Bin

CREW CABIN (ENSUITE)

Dual Access, Aft Deck Hatch and Transom Engine Room Door
Single Pullman Berth With Storage and Pullman Above
Foam Mattress With Cover
Cherry Solid and Veneer Doors
Cherry, Cedar Lined Hanging Lockers and Drawers, Prep for 24 Inch Tv
Cherry Lockers
Kohler® Faucet, Single Lever, Hand-held Shower, Chrome Shower Rail & Wall Union; Wet Head With Tile Sole, Sump Pump 24 Vdc
Vitreous China Sink, Kohler® Faucet, Single Lever, Chrome Pop-up Drain & P-trap
Tecma® Toilet, Electric Freshwater, 24 Vdc
Corian Countertop
Stainless Steel & Chrome Hardware
Fabric, Foam-backed Fabric, Removable Headliner
Premium Vinyl Flooring
Wall Coverings Are in Formica

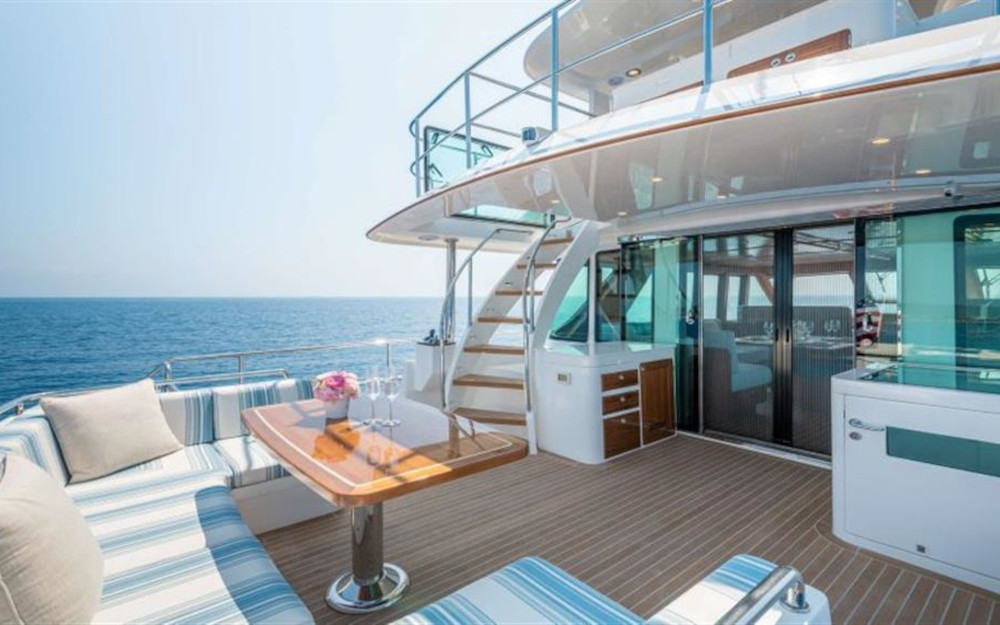

AFT DECK

Teak Decking With Black Seams
Frp Settee With Storage
Marine Grade Cushions and Seating, Non-absorbing Soft Foam, Premium Upholstery
Custom Varnished Teak Aft Table, Hi-low Mechanism, Stainless-steel Pedestals
Starboard Steps to Swim Platform
Exterior Covers for Seating, Chairs, and Table
Port and Starboard Stainless-steel Gate
Swim Platform With Teak Decking, Folding Cleats, Stainless Steel Swim Ladder
Hot/cold Transom Shower With Retractable Hose
Fresh Water Washdown, Pressure
2- Exterior Outlets, 115 Vac.
Port and Starboard Lockers

EXTERIOR OUTFIT

Delta® Stainless Steel 55 Lb Anchors
Self-draining Anchor Chain Locker With Access Hatch
Anchor Roller With Single Anchor Storage, Stainless Steel
Lewmar Windlass, Dual Function for Chain and Rode
Stainless-steel Chain Stopper, Hawser, Deck Chafe Plate
Stainless Steel Scuppers, Hunt Logo
Stainless Steel Cleats, Mooring & Deck
Custom, Cast Stainless Steel Chocks
Single, Awl-grip Boot Tops
Awl-grip Deck Paint
Foam Core, Awl-grip Non-skid Housetop
Stainless Steel Courtesy Lights
Stainless Steel Portlights in Trunk Cabin
Aluminum Painted Engine Room Air Grilles
Custom Varnished Teak & Stainless Steel Flagstaffs/flagstaff Holders, Bow Burgee, Stern Ensign
Heavy-duty Vinyl Rubrail, Stainless-steel Half-round
FRP Molded Quarter Guard, Stainless-steel Half-round
Stainless Steel Safety Rails, Intermediate Wire, Integrated Access Gates, Port & Starboard
Stainless Steel Grab Rails
Skylight Hatches With Screens/blinds on Lower Forward Cabin Top
Dual-chromed Kahlenberg® Horns, 24 Vdc
Conduit, Prep for Optional Electronics
Aluminum Mast, Awl-grip Color to Match Deck
Varnished Teak Cap Rail

CONSTRUCTION

Hull Constructed of Vinyl Ester-infused Foam Cored Laminate Above and Below Water Line
Lightweight Composite Frp Stringers and Webs
Engine Bed Stringers Are Filled With High Density Foam
The Decks and Superstructure Are Vacuum-bagged Foam Cored With Frp Beams and Frames
All Deck Hardware Is Mounted on High-density Core Areas
Deck Is Fully Bonded and Mechanically Fastened to the Hull
All Bulkheads Are Vacuum-bagged Cored Composites Fully Laminated at All Seams
All Cabin Soles Are Vacuum-bagged Cored Composite
Decks Are Gelcoat Vestal White
Bottom Paint and Antifouling Color of Choice
Hull Is Painted Awl-grip Color of Choice

MECHANICAL AND PLUMBING

2- Ips 1350 Volvo Penta Engines
Volvo Gear Shift Controls, Electronic, With Synchronizers
Heavy-duty Isolation Engine Mounts
Volvo Engine Instrumentation, Start/stop With Electronic Digital Displays
Start/stop Analog Controls for Each Engine in Engine Room
Volvo Ips Exhaust System
Humphree Interceptors With Active Ride Control
Volvo Ips Electronic Steering
Engine Room Sound Insulation With Composite Panels of Dampening, Barrier and Absorption Layers
Seafire® Engineered Automatic Fire Protection System, With Manual Override
Soft Patch in Cockpit for Engine Removal
Engine Room Flooring With Frp Composite Panels and Non-slip Surface
Fresh Water Faucet in Engine Room
Engine Room Finished in White, Flow-coated Gelcoat
Generator System With Water Separator
Frp Composite Oil Pans, Under Engines
Mist Eliminators and Custom Water Separators, Engine Air Intakes
3- Aluminum Fuel Tanks, 1000 Usg Total
Fill, Supply, Return, Approved Type A1 and A2 Fuel Hose
Racor® Twin Water Separators for Each Engine
Fuel Vent Filters With Anti-spill Device for Each Tank
Oil Change Kit for Engine, Gear and Generator, 24 Vdc
Tank Gauges for Fuel, Water, and Waste 24 Vdc
Groco® Seacocks With Exterior Hull Strainers for Engines, Air Conditioning, Generator. On Thru-hulls Below Waterline With Double-Clamped Hoses. Raw-water Strainers for Pumps and Intakes. Valves on Thru-hulls Above Waterline With Double-clamped Hoses.
Fresh and Saltwater Washdown With Variable Pressure, 24 Vdc
2- Aluminum 300 Gallon Water Tanks
1- Frp 100 Gallon Gray Water Tank
Stainless Steel Tank Fills
Vents for Tanks, Stainless Steel
Discharge Pumps for Waste and Gray Water Tank, 24 Vdc
Water Heater 220 Vac, 20 Gallons
Whale® Manual Bilge Pump (3) Rule® 3700 Gph, Zoned, Automatic, 24 Vdc
Air Conditioner With Remote Compressor, Separate Air Handlers and Controls for the Salon, Galley and Heads, Guest Cabin and Owner’s Stateroom
Tecma® Toilet, 24 Vdc Electric System
Fresh-water System With Engineered Plastic Piping and Fittings. Fresh-water Pump – Variable Pressure, 24 Vdc, Fresh-water Regulator – City Water. Fresh-water Filter

ELECTRICAL

DC Electrical System, 12 Vdc, 24 Vdc
AC Electrical System, 115 Vac, 230 Vac
AGM Batteries, for Ship, Engine Starting and Generator. Stainless Steel Bracket. Battery Chargers: 75 Amp 24v and 30 Amp 12v. Battery-Condition Indicator. Battery Isolation. Battery Switch, Emergency Paralleling
AC Circuit Breaker Panel Under Chart Drawer
Inverter 24 Vdc to 115 Vac, 4000 Watts
Alternator, Engines, 24 Vdc, 60 Amp. Generator, 240 Vac, 60 Amps
Axial Engine Room Fans, 24v Dc
24v Dc. Led Engine Room Lights
Carbon Monoxide Detector in Each Stateroom and Salon, 24 Vdc
Northern Lights® Generator, 20 Kw, With Sound Enclosure, Exhaust Silencer
Charles Marine Isolation Transformer
Glendenning® Cablemaster With 75 Ft. Cable for Shore Power With Inlet and White Hubbel® Cord, 50 Amp
Common Wire Bonding With #8 Awg Conductors Per Abyc E-11
12 Vdc, 24 Vdc, 115 Vac, 230 Vac. Dc Circuit-breaker Panel – in Passageway
Lopo® Led, 24 Vdc Navigation Lights
Outlets in Galley, Engine Room and Heads, Gfci Circuit Protection
Marine-grade Wiring, Tinned Copper
Marine Grade Wire Fittings, Terminals, Connectors
Imtra® Lighting With Vimar® Switches
Stereo System, Fusion Components With Controls in Salon, Cockpit and Master

NAVIGATION EQUIPMENT

2- Garmin Gpsmap 8617 Multifunction Navigation Displays, Volvo Glass Cockpit
1- Garmin Grid (Garmin Remote Input Device) Control for Navigation Displays
1- Garmin Gps 19x Position Receiver/antenna
1- Garmin Gm120 Digital Marine Instrument Display (Depth and Speed)
1- Airman Dt800 Depth/temperature Smart Transducer
Garmin Ghp Reactor Autopilot System With Ghc20 Control Head and Shadow Drive
1- Garmin Gmr 424 Xhd2 4 Ft Open Array 4kw High-definition Radar
Engine Displays Integrated Into Garmin Mfd
1- Bluechart G2 Vision Hd Chart Chip for Owner’s Chosen Area
1- Garmin Vhf 315 Radio With Hailer

COMMISSIONING PACKAGE

6- Dock Lines (5/8’ X 35’ Bow and Stern)
4- Fenders (10” X 26”)
Fender Air Pump
Boat Hook
3 Fire Extinguishers (3b-1 or B-i & B-ii)
3 Large Life Jackets
1 Set of 4 Life Jackets
Throwable Type Iv
First Aid Kit
Flares
Horn
Pollution Placard, Marpol Garbage Placard, Copy of Uscg Navigation Rules
