60′ Licia Yachts 2024 AQUANAUT

SPECIFICATIONS

Length: 60′ 0″ (18.29)
Beam: 25′ 3″ (7.70m)
Draft: 2′ 5″ (0.74m)
Year: 2024
Builder: Licia Yachts
Hull Configuration: Catamaran
Hull Material: Composite
Engines: 2x Volvo Penta Model: IPA 1050
Fuel: 2500 / 660.43
Cruising speed: 18 Knots
Max speed: 40 Knots
Staterooms: 4
Guests: 8
Location: Antalya, Turkey

OVERVIEW

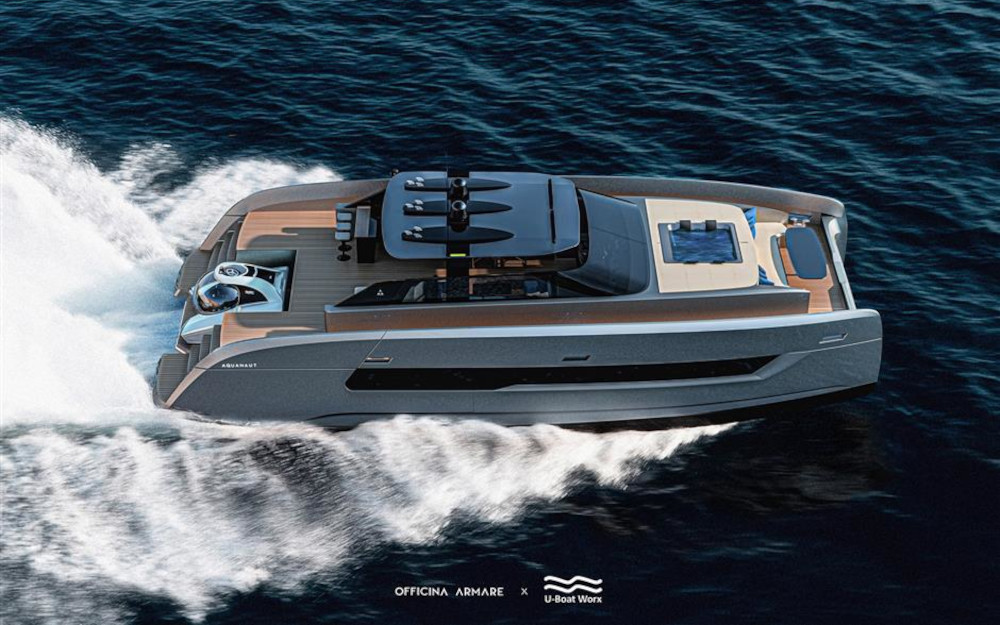

Project Aquanaut Is a 60 Feet Open-style Sport Catamaran Designed by Officina Armare With a Purpose, in Collaboration With U-boat Worx. Aquanaut Is an Advanced Multihull Luxury Speeder, Combining a Sporty Yet Elegant Appearance and Modern Solutions, Featuring a Large Deck Space, Open Bar and Al Fresco Dining Areas Located on Aft Deck and Foredeck. Catamaran Is Equipped With Dynamic Inboard Propulsion of 2×800 Hp to Offer an Impressive Speed Potential of Up to 40 Kts and Extreme Stability at High Speeds With the Contribution of It’s Deep-v Hydrodynamic Design.

Concept of the Aquanaut Is Heavily Influenced by Suv’s (Sport Utility Vehicles) in Terms of Stability, Versatility and Sense of Exploration or Adventure Besides Having Plenty of Storage for the Toys Such as Surf Boards, Seabobs and Diving Gear Besides the Nemo Submersible. The Large Deck Space Can Be Further Expanded at Anchor With Bulwarks for a Larger Area to Host Parties or to Simply Enjoy the Life at Sea to the Fullest.

Aquanaut Can Explore the Deep Seas All Around the World, Thanks to Advanced Technologies That Support Efficient Submarine Operations and Its Lightweight Luxury Private Nemo Submarine by U-boat Worx.

Nemo Can Dive to a Depth of 330 Feet and Able to Reach a Top Speed of Three Knots Under Water. It Can Operate for Up to Eight Hours Before Returning to Base.

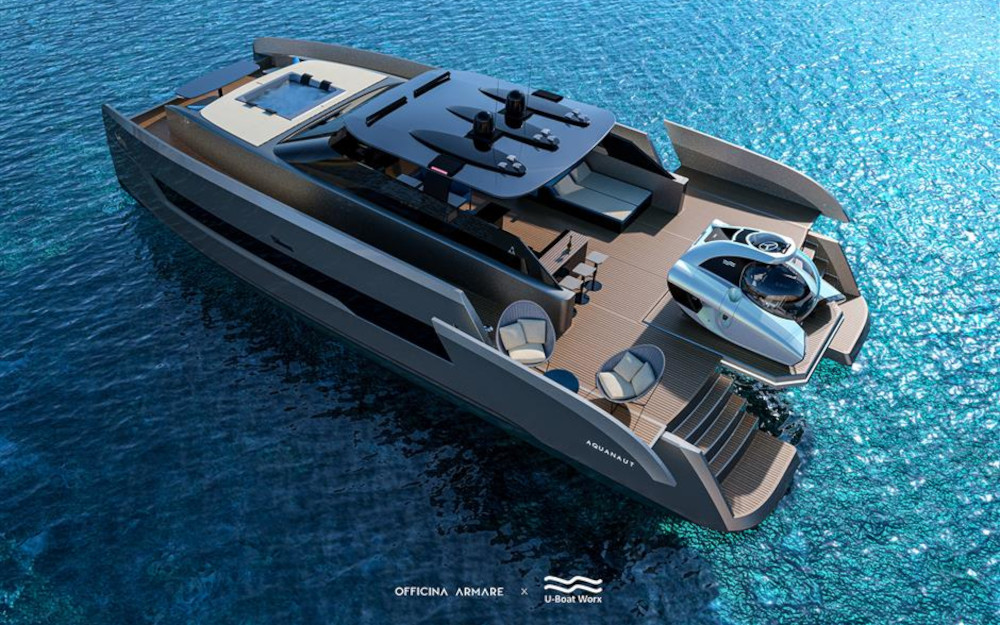

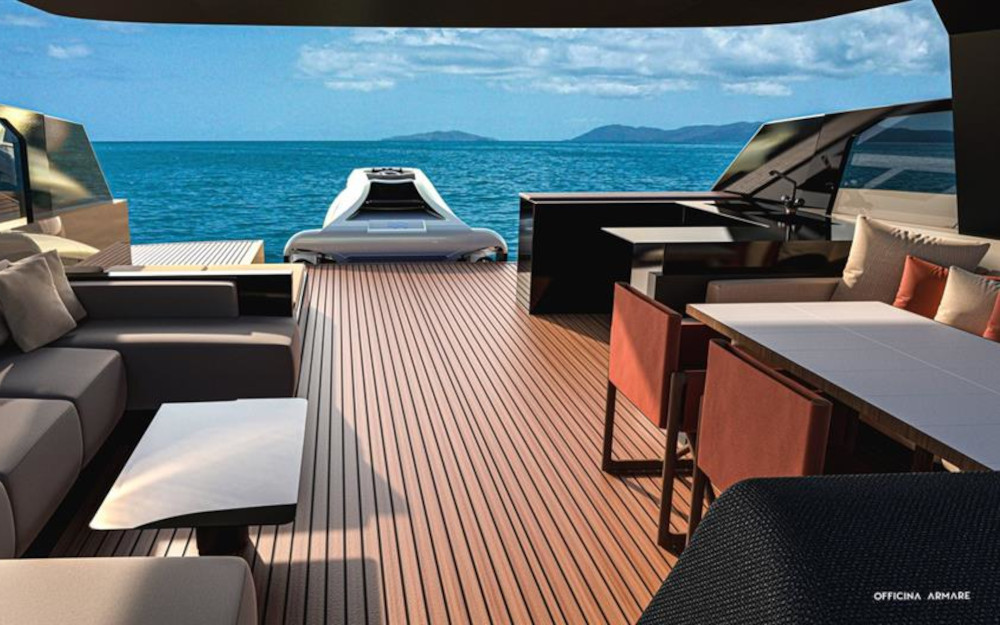

The Large Platform on the Back for the Submarine Is Equipped With Hydraulics That Can Lower Down the Underwater Craft When Launching Is Required. The Same Space Can Be Used as a Lounging / Entertaining Area When the Submarine Is in Water and It Can Be Lowered to Water Level and Become the Beach Club as Well.

The Platform Can Go 0.75 M Below the Water Level to Launch the U-boat Worx Nemo Submersible.

The Efficiency of This Catamaran Reduces the Number of Crew Members to Zero and Keeps the Accommodation to Standards of Up to 12 Guests. Family and Friends Can Relax in Convivial Comfort by Sinking Into the Generous Seating and Sunbeds and Enjoy the Professional Open Bar and Al Fresco Dining After a Long Day of Deep-sea Exploration Thanks to the Large Galley Units.

The Foredeck Features a Large Jacuzzi With a Seamless Sunbathing Area and Also Second More Intimate Dining Area for Up to 4 Guests.

Aquanaut Is Having Double 800hp Volvo Engines With Volvo Ips Drives for Propulsion to Deliver the Excessive Power That Would Power the Push Vessel to an Impressive Speed of Up to 45 Knots.

Aquanaut Will Be Built on Order by the Turkish Shipyard Licia Yachts Who Has Been Specializing in Building Luxury Motoryachts and Catamarans With Over 30 Years of Experience. The Technical Capacity of the Licia Yachts Provides One of the Best Infrastructures for the New Build Projects Such as Aquanaut in the Eastern Mediterranean. The Mold From Licia Yachts Will Produce a High-quality Displacement Hull. The Yard Is Experienced in Building and Refitting Catamarans for Many Years, Giving the New Owners Added Value and Stress-free Building. Engineering Is Done by Notilus Design and Engineering, Who Previously Worked on Various Catamarans From 19-40 Meters. The New Owner of Aquanaut Will Be Reassured That the Technical Aspect of the Boat Will Be to the Highest Standard.

CONSTRUCTION

Epoxy Resin Duratek Epoxy Lamination Resin
Core Material Airex Pvc Foam, Cross-linked Rigid
Fiberglass Metyx E-glass Fabric and Carbon (Hardtop)

MACHINERY AND PROPULSION

Main Engines Volvo Penta 2x Ips1050, 800hp@2300 Rpm, With Electronic Vessel Control (Evc)
Pod Drive Volvo Penta Integrated Propulsion System
Steering System Volvo Penta Integrated Propulsion System
Exhaust System Volvo Penta Integrated Propulsion System
Generators Fisher Panda 2x 15000i-230v Pms 50hz 15kva, Inverter Technology, Diesel
Fuel Filters Racor 2x Duplex Fuel Filters
Bow Thruster Quick 2x Btq 250, 140kgf, 8kw, 24v
Er Blowers Gianneshi 4x Continuous Duty, 24v and Fire Dampers

SYSTEMS

Hydrophore Pumps Tellarini GAX S/S 62lt/min. 24v
Boilers Quick Nautic Boiler BX 100lt – 220v
Fire Pumps Tellarini ENM 50 (Bronze) 230lt/min – 220v
Bilge Pumps Tellarini ECC 24/40 (Bronze) 140lt/min – 24v
Sub. Bilge Pumps Rule 8x 2000gl/hr 24v
Black Water Discharge Pump Feit 1x PMV0,2 – 24v
Grey Water Discharge Pump Feit 1x PMV0,2 – 24v
Grey Water Transfer Boxes Rule 4x 20lt HDPE Tanks

DECK EQUIPMENT

Windlass Quick Heroes 3500w-24v
Capstan Quick 4x Tumbler 1500w – 24v
Anchor Custom Made 70kg Rocna, Galvanized Steel
Chains Atl 138m D12mm, Galvanized Steel
Chain Roller Custom Made Aisi 316l Stainless Steel
Bollards Custom Made 8x Mooring Bollards, 2x Folding Type Bollards, Aisi 316l Stainless Steel
Fairlead Custom Made 8x Aisi 316l Stainless Steel
Main Deck Companionway Doors Bofor 2x Weathertight Companionway Door
Engine Room Hatches Bofor 2x 80x80cm Size
Escape Hatches Bofor 4x 50x50cm Size Flush Hatches
Windows Custom Made 6+6mm Laminated-tempered, Tinted Glass
Hull Window Portholes Bofor 8x Porthole (Clamping Type)
Wipers Exalto 2x Wipers With Washing System

EXTERIOR

Teak Deck Burmese 1st Grade Teak 12mm Thickness
Teak Caulking & Bonding Sikaflex Sikaflex Adhesives
Handrails Custom Made Aisi 316l Stainless Steel
Navigation Mast Custom Made Aisi 316l Stainless Steel
Helm Seats Ullman 2x Daytona Crew Model Suspension Seat
Hot Tub Jacuzzi or Equal Model Tbd
Exterior Teak Tables Custom Made 2x Teak Table With Stainless Steel Legs
Exterior Bar Stools Custom Made 3x Pedestal Stools
Exterior Cushions Ferrari Stamoid Color Tbd
Exterior Marbles Corian Color Tbd
Swimming Ladder Custom Made Aisi 316l Stainless Steel
Deck Washes Osculati 2x Deck Washing Bayonet
Deck Showers Whale 2x Whale Twist Shower
Yacht Name Custom Made Aisi 316l Stainless Steel
Ventilation Grills Custom Made Aisi 316l Stainless Steel

ELECTRICAL EQUIPMENT

Cables Untel, Erse or Equal Marine Type Certificated
Switchboards and Dps Custom Made Schnieder, Siemens, Carling Components
Shore Power Marinco 63a Shore Connection & 10m Shore Cable
Battery Bank Victron 2x 12v/220a Start Agm8x 12v/220a Service (24v/880a) Gel
Battery Chargers Victron 1x 80a Start Batt. Charger1x 24v/100a Service Batt. Charger
Inverter Victron 1x 24/5000va
Converter Victron Tbd

NAVIGATION AND COMMUNICATION EQUIPMENT

Navigation Lights Lopolight Led Navigation Lights
Radar Raymarine 4kw 24″ Hd Color Radome
Gps Chart Plotter Raymarine 2x 12″ Axiom 12 Rv Mfd Integrated Realvision 3d Sonar
Autopilot Raymarine Evolution Autopilot, Gyro Compass, Drive Unit
Multi Displays Raymarine 2x I70s Multi-function Color Display
Transducers, Sensors Raymarine Depth, Speed, Temperature, Wind, Rudder Angle
AIS Raymarine Ais650 Class B Transreceiver
VHF Raymarine Ray50 Vhf Radio
CCTV Raymarine 4x Cam220 Eyeball Cctv Day & Night Ip Camera
Horn Fiamm Stainless Steel
Magnetic Compass Plastimo Horizon 135

INSULATION

Fire Insulation Rockwool 50mm Rockwool With Aluminum Foil
Thermal Insulation Glass Wool 50mm Glass Wool With Aluminum Foil
Bonding Plates Custom Made Perforated, Painted Aluminum Panel (Er Ceiling and Bulkheads Only)
Technical Area Floors Custom Made Aluminum Diamond Panel
Pipe Insulation Armaflex
Bulkhead Penetration Fiwa Rise Water/fire Sealing

SAFETY AND FIREFIGHTING EQUIPMENT

Engine Room Co2 System Fsm 2x Automatic Co2 System
Firefighting Hoses Fsm 2x Fire Box With 15m Hose
Fire Extinguishers Fsm 10x 2kg Powder, 5x 5kg Co2 Extinguishers
Life Raft Lalizas or Equal 12 Pax
Life Vests Plastimo 14x Life Vests, 2x Horseshoe Lifebuoy Kits
Safety Equipment Ikaros Kit

PAINT

Exterior Paint Awlgrip Awlcraft 2000 Topcoat Paint System
Anti-fouling Paint International Micron 77 Antifouling System
Bilge & Tank Paint International Special Bilge and Tank Paints

INTERIOR

Furniture Veneer Color Tbd
Upholstery Fabric, Leather Color Tbd
Carpets Custom Color Tbd
Hardware Hafale or Equal Full Set
Lighting Fixtures Casolux Led, 24v
Switch, Sockets Vimar Model Tbd
Curtains, Blinds Custom Color Tbd
Beds Custom Color Tbd
Bathroom Countertops Corian Color Tbd
Toilets Tecma 4x 24v, Model Tbd
Shower Trays Vitra 4x Set
Washbasins Vitra 4x Set
Faucets Grohe 4x Set
Bathroom Accessories Grohe 4x Set

GALLEY EQUIPMENT

Washing machine/drier Bosch Wash&Dry 7/4kg WKD28541EU
Dishwasher Bosch SMI68IS02T
Oven Bosch HRA518BS1
Top plate Bosch PKG775FP1E
Hood Bosch WB67LM50
Fridges Bosch KIS87AF30N
Galley sink & taps Franke / Grohe model tbd
Exterior bar sink & taps Corian / Grohe model tbd
Ice maker (bar) Indel Webasto Drawer 130 inox
Fridge (bar) Indel Webasto IceDrink White inox
Barbeque Bosch Domino PKU375CA1E
