278′ Custom 85M 2026

SPECIFICATIONS

Length: 278′ 10″ (85.00)
Beam: 45′ 6″ (13.87m)
Draft: 14′ 10″ (4.52m)
Year: 2026
Builder: Custom
Model: 85m
Hull Material: Steel
Gross Tonnage: 2800
Engines: 2x Caterpillar
Cruising speed: 13 Knots
Max speed: 17 Knots
Staterooms: 6
Guests: 12
Total Crew: 22
Location: Italy

OVERVIEW

This Custom Yacht Was Designed by Christopher Seymour in Close Cooperation With Design Consultant Carl Esch, and Features Interior Styling by the Acclaimed Evan K Marshall. Part of Our Company Collection, This Yacht Is Designed for a Shipyard Build of the Clients Choice. Seymour Has Produced Versatile Concepts to Suit the Tastes of His Clients ­ranging From the Traditional to the Radical. This Provides Bold Inspiration for Any Owner Looking to Stand Out From the Crowd. Equally Focused on Engineering and Creativity, the Concepts in Christopher Seymour Designs’ Portfolio Mixes Advanced Hull Forms to the Latest Propulsion Systems.

INTERIOR AND ACCOMMODATION

Luxury Staircase Serving Four Decks
Square Elevator Serving Four Decks
Enclosed Luxury Wellness Area With Bottom-hinged Beach Platform and Tender Mooring Platform to Receive Guests on Starboard Side, With Direct Access to Other Luxury Area’s
Central Galley on Main Deck, With Direct Connection to Pantry and Main Saloon
Large Pantry on Owner´s & Bridge Deck
Owners Suite, With Dressing & Bathroom, and Private Office/library
Large Open Sun Deck With Large Bar and Access Stairway
(5) Large Luxurious Guest Cabins on Main Deck
Food Lifts Serving Four Decks (on Request)
Tender Garage Which Can Be Converted Into a Leisure Area for Guests With Bar

Interior Space
Guest Cabins Area on Main Deck Approx. 240 Sqm
Owners Area on Bridge Deck Approx. 160 Sqm
Wellness Area on Lower Deck Approx. 65 Sqm
Sun Deck Area (Outside) Approx. 180 Sqm
Captain’s Cabin Approx. 18 Sqm
Total Living Area Owners and Guests Approx. 1.145 Sqm
Service Spaces Approx. 130 Sqm
Crew Area’s (Without Technical Areas) Approx. 345 Sqm

Noise Levels
Guest Cabins at 80% MCR on Main Deck Approx. 54 Db(a)
Owners Area at 80% MCR on Bridge Deck Approx. 47 Db(a)
Guest and Owners Area’s in Harbor Mode Approx. 46 Db(a)

Ceiling Heights
Main Deck 2.3 M
Bridge Deck 2.3 M
Wellness Area Lower Deck 2.10 M
Sun Deck 2.20 M

DECK EQUIPMENT

Stern Passerelle
Side Boarding Ladder on Starboard With Self-leveling Teak Steps
(2) Vertical Anchor Winches With Warping Head
Dedicated Rescue Boat Storage Under Foredeck, Accessible via Hatch
Capstans and Four (4) Bollards on Each Side at Main Deck
Overhead Crane Beams Used for Launching the Tender Boats and Wave Runners on Portside
Knuckle-boom Crane for Launching the Rescue Tender
Telescopic Foremast
Jacuzzi on Sun Deck With Seats and Sun Beds
Pool on Main Deck Aft and (1) Pool on Bridge Deck, Both With Mosaic Inlay and Dedicated Pool Tank
Anchor Mooring Hatches for Better Crew Visibility During Anchoring and Mooring
A Customized Luxury Exterior Led Lighting Scheme Based on the Exterior Design
Transom Area

TRANSOM AREA

A Foldable Platform Is Incorporated in the Swimming Platform to Enlarge the Aft Area.

MAIN MACHINERY

The Main Propulsion Plant Consists of Two (2) Approx. 1770 Kw (Each) Diesel Engines (Caterpillar or Equivalent), Each Coupled to a Fixed Pitch Propeller (FPP) Through Reduction Gearbox and Shaft Line. Each Main Propulsion Diesel Engine Is Foreseen With Single Elastic Mounting and Elastic Coupling to Gearbox. Gearboxes Will Be Hard Elastic Mount. Maximum Speed Is 17,0 Knots.

The Exhaust Gases of the Propulsion Engines Will Be Led Underwater to the Side Shell, Bypass for Low Operations Will Be Lead to the Side Shell Above the Waterline. The Exhaust Gases of the Diesel Generators Will Be Dry Type, Fitted With Sea Water Injection, and Running Through the Hull Sides Above the Waterline. Dry Silencers and Urea-based Selective Catalyst Reduction (Scr) Systems Will Be Fitted on All Exhaust Lines to Fulfill the Imo Tier Ill Rules Requirements on Nox Emissions, Soot Filters Are Foreseen on the Diesel Generators Exhaust Lines.

Bow and Stern Thruster
Electrically Driven, Allowing for Dynamic Positioning (Dp0).

Stabilizers
Zero Speed Stabilizer Non-retractable (Design Speed 12.5 Knots).

Air Conditioning
A Centralized, Single Duct (Variable Air Volume (Vav) in the Owner’s and Guest Areas) Air Conditioning System for Interior Owner/guest/crew Living Areas With the Following Design Conditions:

Ext. Temp – Summer +35°
External R.H. – 75%
Seawater Temp – +32°C
Internal Temp – +22°C
Internal R.H. – 55%
Ext. Temp – Winter -5°C
External R.H. – (-%)
Seawater Temp – 0°C Internal Temp – +20°C
Internal R.H. – 50%

WATER SYSTEMS

(2) Hydrophore Pumps
(3) Hot-water Boilers
Hot and Cold-water Circulation System
(2) Reverse-osmosis Water Makers With Sufficient Capacity
Vacuum Toilet Sanitary System
Black-water Treatment
Waste Heat Recovery for Potable Water, Whirlpool Heating and Hvac Reheating

NAVIGATION AND COMMUNICATION EQUIPMENT

Communication According to GMDSS Area 3, Inmarsat F, Intercom, Telephone Installation.

Integrated Navigation System
Gyro and Magnetic Compass
X-band Radar
S-band Radar
Autopilot
Speed Log
Echo Sounder
Dgps
Ecdis
Conning
Wind Measurement Equipment
Ais

ENTERTAINMENT SYSTEMS

Full Entertainment System With Satellite Tv, Audio and Video on Demand, Internet in Saloons,guest Cabins and Owners’ Areas.

FIRE FIGHTING, SAFETY AND SECURITY EQUIPMENT

A High-pressure Water Mist Fire Extinguishing System Is Fitted to Protect the Accommodation,service and Machinery Spaces.automatic Watertight Sliding Doors to Divide the Ship in Case of Hull Damage With Appropriate Means of Escape in Case of Emergency. An Alarm and Monitoring System Is Provided.

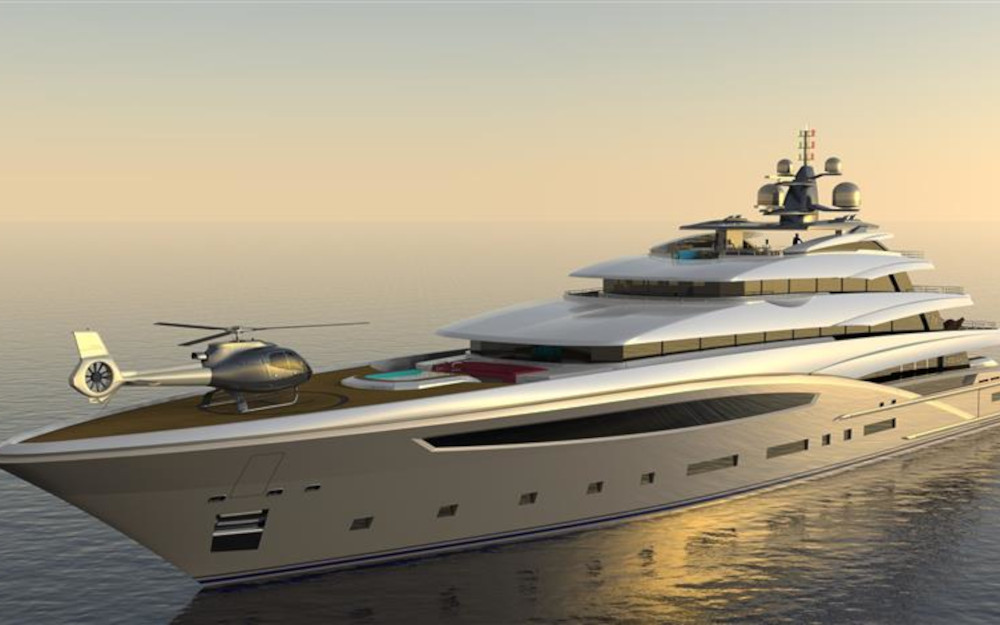

HELICOPTER PAD

A Non-certified Helicopter Landing Place on Bridge Deck Forward, Suitable to Support a Helicopter Oftype Ec130 or Equal.

TENDER AND TOYS

Enclosed Aft Ship Tender Store With Bottom-hinged Side Doors Suitable for:

(2) 9.0-meter Tenders
(4) Jet Skis
Water Toys
