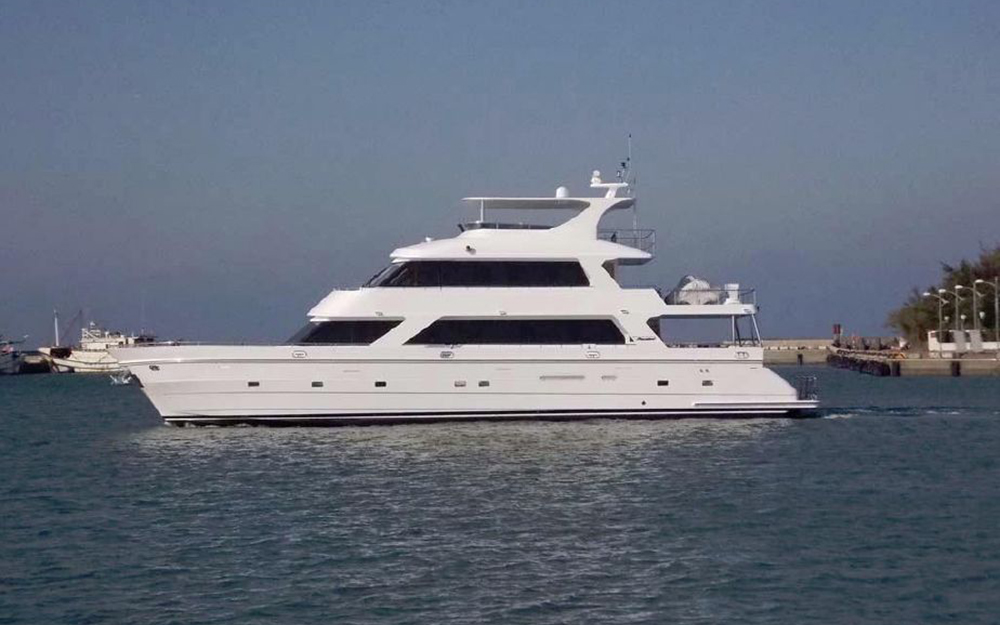

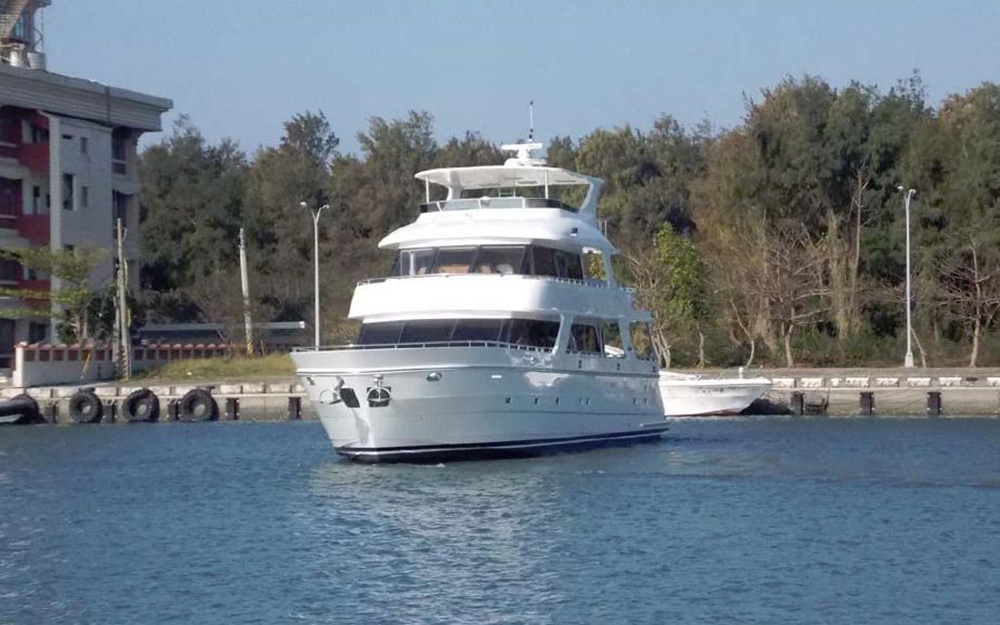

2020 PRESIDENT 870 TRI DECK LRC LORRETTA

DESCRIPTION

Year: 2020
Length: 87′
Engine/Fuel Type: Twin / diesel
Located In: Stuart, FL
Hull Material: Fiberglass
YW#:59909-3569852

NEW 2020 87ft President Trideck Motor Yacht features 4 Stateroom and 7 Heads plus full Crew Quarters. Powered by twin John Deere 425HP Diesels, LORETTA has a range of 2400 nautical miles, cruising at 1400 RPM, 11 knots. A truly opulent yacht with all the latest electronics and systems expected of a world-class long-range cruising yacht.

BOAT NAME

Loretta

SPECS

Builder: President
Flag of Registry: Jamaica
Hull Shape: Semi-Displacement

DIMENSIONS

LOA: 87 ft 2 in
Beam: 20 ft 7 in
LWL: 80 ft 3 in
Minimum Draft: 6 ft 1 in
Maximum Draft: 6 ft 10 in
Displacement: 198000 lbs

ENGINES

Total Power: 850 HP

Engine 1:
Engine Brand: John Deere
Year Built: 2019
Engine Model: 6135SFM85
Engine Type: Inboard
Engine/Fuel Type: Diesel
Location: Starboard
Engine Hours: 25
Drive Type: Direct Drive
Engine Power: 425 HP
Engine 2:
Engine Brand: John Deere
Year Built: 2019
Engine Model: 6135SFM85
Engine Type: Inboard
Engine/Fuel Type: Diesel
Location: Port
Engine Hours: 25
Drive Type: Direct Drive
Engine Power: 425 HP

Cruising Speed: 11 knots @ 1400 RPM
Maximum Speed: 17 knots

TANKS

Fresh Water Tanks: (600 Gallons)
Fuel Tanks: (2700 Gallons)

ACCOMODATIONS

Number of cabins: 4
Number of heads: 7

CONSTRUCTION

• Aroway® LR (Lloyd’s Register) approval white color gelcoat on hull and superstructure
• All fiberglass throughout the boat by vacuum bag composite lamination construction
• Modified V-hull bottom
• Stitched multi-axial reinforced single skin hull bottom
• USA Reichhold® Hydrex vinylester resin for hull skin-coats
• USA ATC® Corecell PVC Foam sandwich vacuum bag lamination construction for hull topsides
• USA ATC® Corecell PVC foam sandwich, vacuum bag lamination construction
• Transverse and longitudinal fiberglass stringers hull bottom reinforcement
• Hull and deck bolted joint with fiberglass laminate reinforcement
• USA Sound Down® engine room soundproofing system construction
• The interior of hull bottom painted out with white PU paint protection
• USA International® Epoxy osmosis protect primer
• USA International® Bottom paint anti-fouling, black color
• Hull boot stripe, black color
• Propeller tunnels
• Bulbous bow

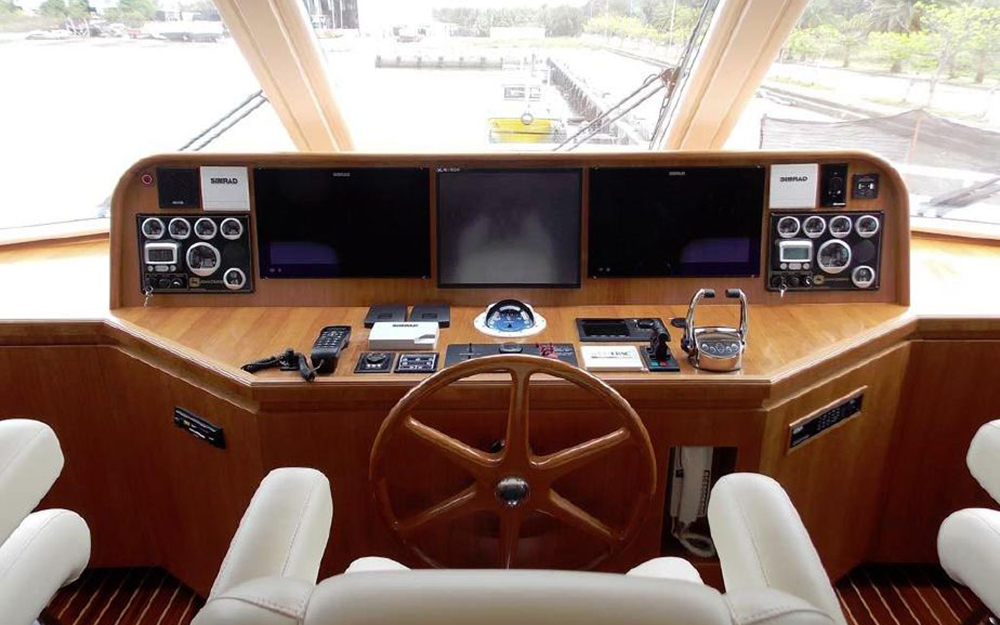

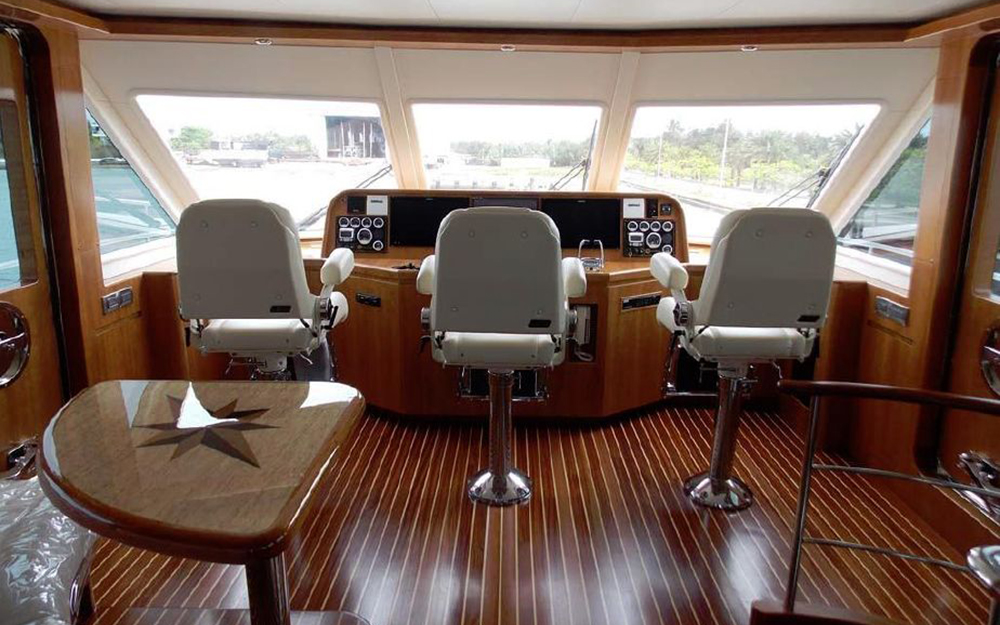

PILOTHOUSE

• Instrument console with complete instrumentation
• Front frameless windows with clear/tinted tempered laminated safety glasses
• FRP side doors (2)
• Aft hinged open access door (1)
• FPR Staircase down to salon
• USA STIDD® helm chairs with S/S frames (3)
• Sofa and dinette table as attached pictures and layout
• Speakers (2)
• Sofa with cushions, dining table with s/s fixed leg
• High quality mahogany/holly stripe cabin sole
• Steering wheel
• Locker/cabinet
• Wet bar
• USA Sub-zero® 700BR, refrigerator
• USA U-line ® Ice maker

PILOTHOUSE DAY HEAD

• Veneer wall covering and sole pattern design material as attached pictures
• Medicine cabinet with mirror
• USA Headhunter® super bowl toilet
• Lights (2)
• 120VAC waterproof GFCI duplex outlet
• Basin with single lever faucet

INTERIOR

• 9” spring mattress with standard fabric and best quality memory foam (latex)
• Cherry wood interior wall covering with satin finishing
• High quality mahogany/holly stripe cabin sole throughout except crew quarter and shower rooms
• FRP white non-skid cabin sole for crew quarter
• Vinyl on ceiling
• Hunter-Douglas style blind shape curtains

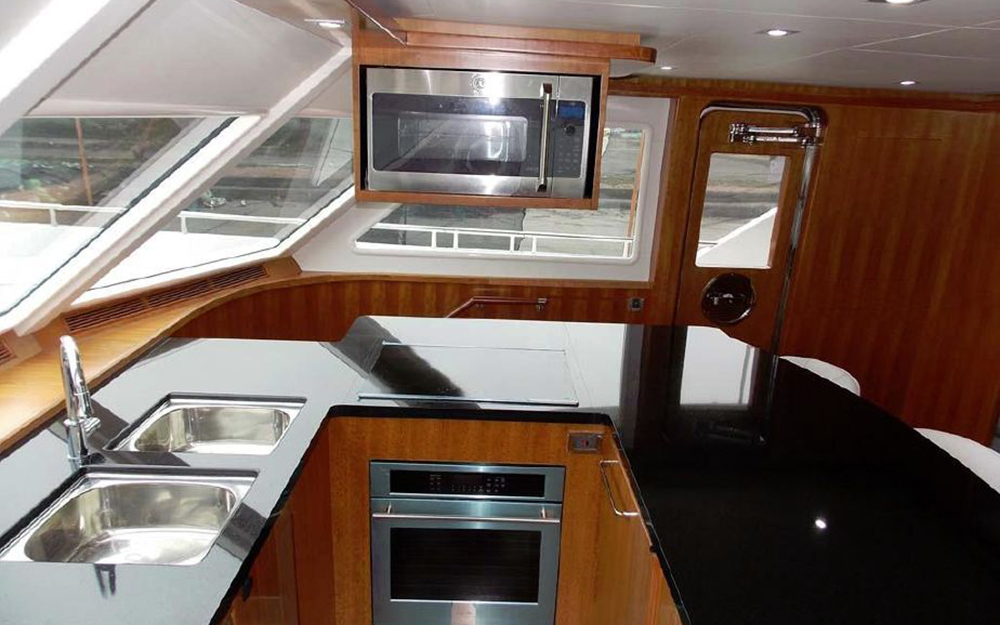

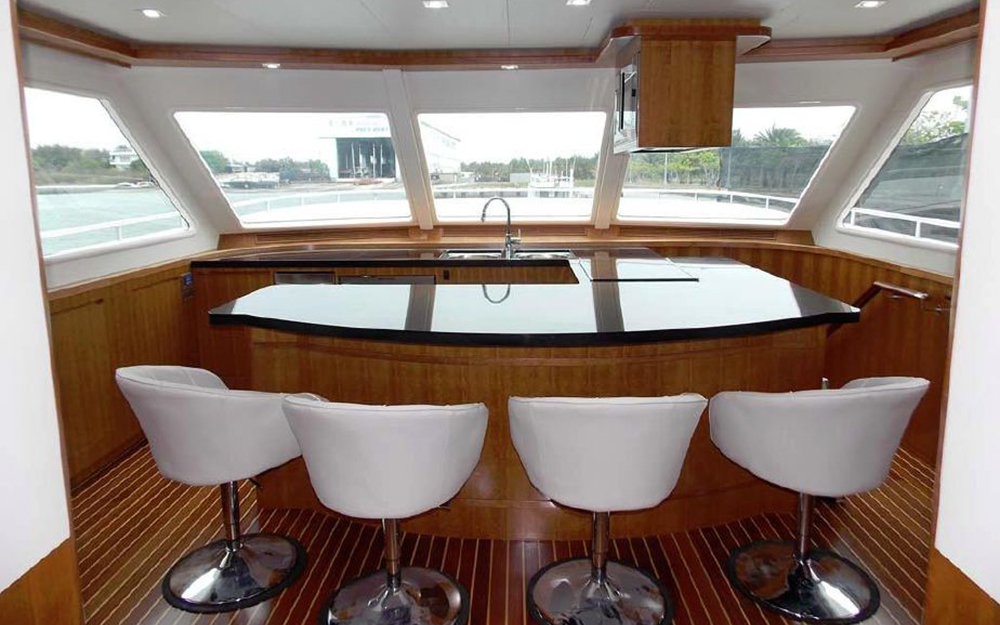

GALLEY

• USA Subzero® 700BFI, freezer unit with automatic ice maker
• USA Subzero® 700BR drawer refrigerator (2)
• S/S double sink
• Electric cook top
• Electrical convection oven under cook top
• Microwave
• Dishwasher
• Disposal under sink S/S excel evolution Insinkerator® garbage disposal
• Trash compactor
• Locker & drawer
• DC 24V light (6)
• AC 120V outlet (4)
• Marble countertop
• Single level kitchen faucet
• FRP side doors (2)
• Four chairs (about Width: 46cm, Depth: 44cm) (pedestal fixed)
• Counter height: 78cm (by the side of 4 chairs)

DINETTE

• Table with 2 legs
• DC 24V light (4)
• Storage
• AC 120V outlet (4)

SALON

• S/S frame electrical automatic access sliding door
• Stereo cabinet w/wiring
• 50” LED TV with remote fold-down facility on the ceiling
• Storage locker on both sides
• DC 24V light (6)
• AC 120V light (12)
• AC 120V outlet (4)
• Stairs with S/S frame and railing up to pilothouse
• Settee and oval table on port side

MAIN DECK DAY HEAD

• Mirror (1)
• USA Headhunter® super bowl toilet
• High quality mahogany/holly stripe cabin sole
• Lights (2)
• 120VAC waterproof GFCI duplex outlet
• Marble countertop
• Basin with single lever faucet

LOWER STATEROOM PASSAGEWAY

• Built-in handrail
• USA Whirlpool® washer and dryer

FORWARD VIP STATEROOM

• (2) Bunk beds 1.35m (approx. 4.4 ft.) wide with storage under
• Hanging locker
• Private door to head
• Vanity with mirror
• DC 24V light (5)
• AC 120V light (6)
• AC 120V outlet (2)
• Drawer (2)
• Reading light (2)

FORWARD VIP HEAD

• Medicine cabinet with mirror
• USA Headhunter® super bowl toilet
• High quality mahogany/holly stripe cabin sole
• Separate stall shower with tile floor
• Portlight
• DC 24V light (3)
• AC 120V outlet (4)
• Single level faucet and basin
• Marble countertop

PORT GUEST STATEROOM

• (2) Bunk beds 1.35m (approx. 4.4 ft.) wide with storage under
• Hanging locker
• Drawer storage under berth
• S/S opening portlight
• DC 24V light (4)
• AC 120V light (2)
• AC 120V outlet (4)
• Reading light (2)

PORT GUEST HEAD

• USA Headhunter® super bowl toilet
• High quality mahogany/holly stripe cabin sole
• Opening portlight
• DC 24V light (3)
• AC 120V outlet (2)
• Single level faucet and basin
• Mirror
• Marble countertop

STATEBOARD GUEST STATEROOM

• (2) Bunk beds 1.35m (approx. 4.4 ft.) wide with storage under
• Hanging locker
• Portlight
• DC 24V light (4)
• AC 120V light (2)
• AC 120V outlet (4)
• Reading light (2)

STARBOARD GUEST HEAD

• Headhunter® super bowl toilet
• High quality mahogany/holly stripe cabin sole
• Opening portlight
• DC 24V light (3)
• AC 120V outlet (2)
• Single level faucet and basin
• Mirror
• Marble countertop

MASTER STAETEROOM

• (2) Queen beds 1.35m (approx. 4.4 ft.) wide with storage under
• Hanging locker (2)
• Vanity with mirror and chair
• Drawers and lockers
• Opening portlight (2)
• DC 24V light (6)
• AC 120V light (8)
• AC 120V outlet (4)
• 32” LED TV
• Settee in fabric
• Spring mattress
• Reading light (2)

MASTER HEAD

• Medicine cabinet with mirror
• USA Headhunter® super bowl toilet
• High quality mahogany/holly stripe cabin sole
• Opening portlight
• Stall shower with tile floor and shower door
• DC 24V light (4)
• Marble countertop
• Single level faucet and basin

CREW QUARTERS

• FRP transom door
• Formica® wall covering
• Opening side door to after deck
• S/S frame door to engine room

CREW STATEROOM

• (2) Upper and (2) lower single berths (total 4 berths)
• Drawers under berths
• Formica wall covering with wood trim
• Cedar-lined hanging locker
• Fabric covered mattress
• AC and DC lighting
• Reading light (2)
• 120VAC receptacles

CREW HEAD

• USA Headhunter® super bowl toilet
• Separate shower with FRP non-skid floor and wood veneer door
• Single faucet
• Corian countertop
• Ceramic sink
• 120VAC receptacle
• Mirror
• 24VDC lighting

CREW GALLEY/DINING

• Formica wall covering
• S/S single sink
• Corian countertop
• USA Sharp® R820BK microwave
• Cooktop
• USA U-line ® Combo 29A, refrigerator/ice maker
• Separate shower with FRP non-skid floor and door
• Porthole with S/S emergency cover
• S/S frame hatch on stern
• Dining seat with storage underneath
• Wall table, fold down
• 120VAC receptacles
• Power/antenna socket for TV
• 24” LED TV set
• Stereo set with speakers (2)

FOREDECK

• Stainless steel anchor roller
• Chain locker with F.R.P. hatch (2)
• Watertight chain locker with PU painted
• S/S hawse pipe with double rollers (2)
• S/S mooring cleat (2)
• S/S flagpole socket
• Teak flag staff 30” length (1)
• Courtesy light 24VDC (4)
• Fresh water and raw water washdown faucet
• Molded non-skid deck
• Round shape settee with table
• S/S plow anchor; 110lbs (2)
• Anchor chain; ½” HDP (hot dipped galvanized), 400 ft. (2)
• S/S handrail; round pipe 1-1/2” dia.

UPPER PORTUGUESE DECK

• Molded FRP non-skid deck surface
• Storage
• Courtesy light 24VDC (4)
• FRP Non-skid deck

SIDE DECKS

• S/S hawse pipe with cleat (6)
• Courtesy light 24VDC (4)
• Two bulwark doors on side deck opening inboard side
• Molded non-skid deck

FLYBRIDGE

• Flybridge fiberglass hardtop with 24VDC lights
• Fiberglass radar mast on rear hard top
• USA STIDD® helm chairs with S/S frames (3)
• Molded instrument console with complete instrumentation and cover
• Molded non-skid deck
• Wet bar with ice maker/refrigerator
• Tinted venture windshield with grab rail
• Electronic dual level engine controls
• Steering wheel S/S 20”
• Curved bench seats with vinyl cushions and storage beneath on port side with curved fiberglass table.
• Waterproof speakers (2)
• Intercom (1)
• 120VAC waterproof receptacle (4)
• Courtesy light (6)
• Freshwater wash down faucets (2)
• S/S handrail and safety guard railing on the rear side

BOAT DECK

• FRP Non-skid deck
• DC 24V light (3) under radar mast/arch
• Fresh water washdown faucet
• FRP Staircase to aft deck with hinged-up hatch
• Deck box storage on port side
• BBQ
• Canvas sunshade cover with s/s poles on rear side
• Hydraulic 2,500 Lbs. capacity crane davit system

AFT DECK

• S/S hawse pipe with double rollers (2)
• S/S mooring cleat (2)
• S/S frame salon electrical automatic access sliding door to aft deck
• Teak deck
• Extend hard top over deck with S/S support and lights (6)
• Transom door (2)
• FRP bench with cushion for seating and back
• FRP wet bar
• USA U-line® 2075R, Refrigerator
• Storage

SWIM PLATFORM

• After-body swim platform
• Teak deck
• FRP watertight door access door (1) to crew quarter
• 2-1/2” Dia. U-rail on back of swim platform
• Courtesy light 24VDC (4), port and starboard steps
• Freshwater shower hose

ELECTRICAL EQUIPMENT AND ELECTRONICS

• USA Allcraft® VR20, water heater w/heat exchanger 20 gals. (2)
• AC and DC circuit control breakers
• Norway Aqua signal® 55 serial, navigation light (5) commercial type (6”L x 6”W x 7.9”H) black housing
• USA Kahlenberg®D-1, dual electric horn
• USA Geltech® 8G8D, gel battery 225AH DC 12V (10) with F.R.P. battery boxes
• Bonding system with zinc anodes on transom, 1/8” thickness copper strip
• USA Cablemaster® CM-8, 100A shore power cable system (2)
• USA Shore power cable, 100 ft. in yellow color (2)
• USA Glendinning® electric engine control system
• USA Newmar® PT-24-95F, 24V/95A automatic battery charger (1)
• USA Newmar® PT-40, 12V/40A automatic battery charger (1)
• Stereo wiring with speakers (18)
• Crew quarter with separated stereo set and 2 speakers for crew stateroom and 2 speakers for crew galley
• Netherlands Exalto® windshield wiper with separated washer (3)
• CCTV in aft deck, swim platform and engine room. Screen on Navigation display of pilothouse.
• USA Ritchie® SS5000 flush mount compass (2)
• Engine room light 24VDC (6) and 120AC fluorescent light (6)
• All Color-coded wiring system
• Battery selector switch

ENGINE AND MECHANICAL DETAILS

• John Deere® 6135SFM85 diesel engine, M1-rating 425hp x 2
• Transmission ZF360, gear ratio: 2.917/1
• Northern Lights® M984K generator, 33KW, 120VAC/240VAC, 60HZ, 2 sets
• Exhaust/water separator for each generator
• Engine under water exhaust system with bypass mufflers
• USA Cruisair® chilled water air conditioning, 180,000 BTU chiller capacity
• Four blades Nibral propellers
• USA Aqualoy® 22HS Propeller shafts, 2-1/2” diameter
• American bow thruster® TRAC 300/9X square feet digital STAR stabilizer and 12”- 38 HP bow and stern thruster system
• Hydraulic 2,500 Lbs. capacity crane davit system
• Maxwell®, HWVC3500/hydraulic reversible windlass, dual anchor handing and vertical warping drum (1), chain stopper (2)

MECHANICAL EQUIPMENT

• USA Racor®, 75/1000MAX, fuel filter (2) for engines
• USA Racor®, 75/900MAX, fuel filter (2) for generator
• USA Alfa Laval®, fuel purifier
• Power assisted hydraulic steering system
• Sea water strainer
• Bronze thru-hull fitting
• F.R.P. holding tank
• USA Headhunter® tank sentry system for fuel, fresh water and holding tanks
• Hot and cold water pressure system
• S/S water tank with gauge (2)
• S/S I-strut (2)
• Dual shore water connection
• Engine room fire detector (4) sensor
• Bilge water level detector (5)
• F.R.P. drip pans under engines
• Sump tank with pump
• Blower for shower room (4)
• Y-valve for heads
• Engine room light DC 24V (6)
• Aluminum fuel tank
• Hot and cold water pressure system with USA Headhunter® M5-115 120VAC water pump (2) and Headhunter® HHJX-2400, 24VDC water pump (1)
• USA Rule® 16A, 3700GPH automatic bilge pump DC 24V(6); (2) engine room, (2) forward stateroom areas, (1) aft crew quarters, (1) aft transom area
• USA Sea recovery® AM900-2; watermaker with remote control
• USA Reverso®, GP806; Oil-change system for main engines and generators
• USA Fireboy®, GA-2000-227; Fire extinguishing system with manual and automatic discharge
• Stainless steel engine footing
• Hot water in red color pipes and cold water in blue color pipes

OPTIONS

• Navigation Equipment Simrad
• Satellite TV Dome (KVH® or another brand)
• Canvas covers for exterior seats, salon and pilothouse front windshield glass
• Germany Hamann® Sewage water treatment plant
• ENDP high efficiency silence propeller
• Dometic® Eskimo Ice EI540D fishbox ice system
• Under water LED light with color Blue Light add two lights to total ten lights (original eight under water LED lights in the specifications)
• S/S swim ladder upgrade to portable high side handrail swim ladder
• Foldable six step boarding ladder
• Two towing S/S cleats on the swim platform
• Six S/S fishing holders for railings
• All the bed mattresses to be Visco-Elastic memory foam
• “Maretron” monitor system
• Search light (ACR:RCL-300A)
• •Two sets of Simrad monitors with 19” touch monitor and NSO evo2 marine processors
• Propeller rope cutter
• Two ROCNA70 154 lbs. Anchors with Added 15’ S/S 316 chain to each ½ HDP (hot dipped galvanized) total length 400’ (two sets)all anchor chain
• Highfield DL 390 (deluxe) in white color with ORCH HYPALON tube fabric.
• Mooring whips on swim platform • Two additional 30” freezer drawers in pilothouse
• Custom granite galley counter • Larger larger galley bar chairs with four ottomans
• Two “NUC” lights
• Extra transom door alarm and five cameras
• Port and starboard guest room under lower berth space have two extra drawers for storage.
• Custom push latches on all the drawers, cabinets and closets.
