171′ 10″ Palmer Johnson 2016/2024 SANAM

SPECIFICATIONS

Length: 171′ 10″ (52.40m)
Beam: 29′ 10″ (9.10m)
Draft: 6′ 10″ (2.10m)
Year: 2016
Refit: 2024
Builder: Palmer Johnson
Model: SportYacht 170 series
Hull Configuration: Semi Displacement
Hull Material: Aluminum
Flag: Malta
Classification:
Lloyds Register 100A1 SSC YACHT MONO HSC G6
LMC
Engines: 2x MTU, Model: 16V4000 M93L, 4,613hp
Fuel: 58000 L / 15321.99 Gal
Water: 6900 L / 1822.79 Gal
Cruising speed: 17.5 Knots
Max speed: 31 Knots
Staterooms: 6
Guests: 15
Total Crew: 10
Location: Monaco

OVERVIEW

Experience luxury and performance with SANAM, the latest Palmer Johnson ever built now available for a new owner. With 495GT of interior volume, SANAM effortlessly combines high-speed performance with flexible accommodations, offering space for up to 15 guests across six spacious staterooms. SANAM has been meticulously maintained in her original ownership and always kept private.

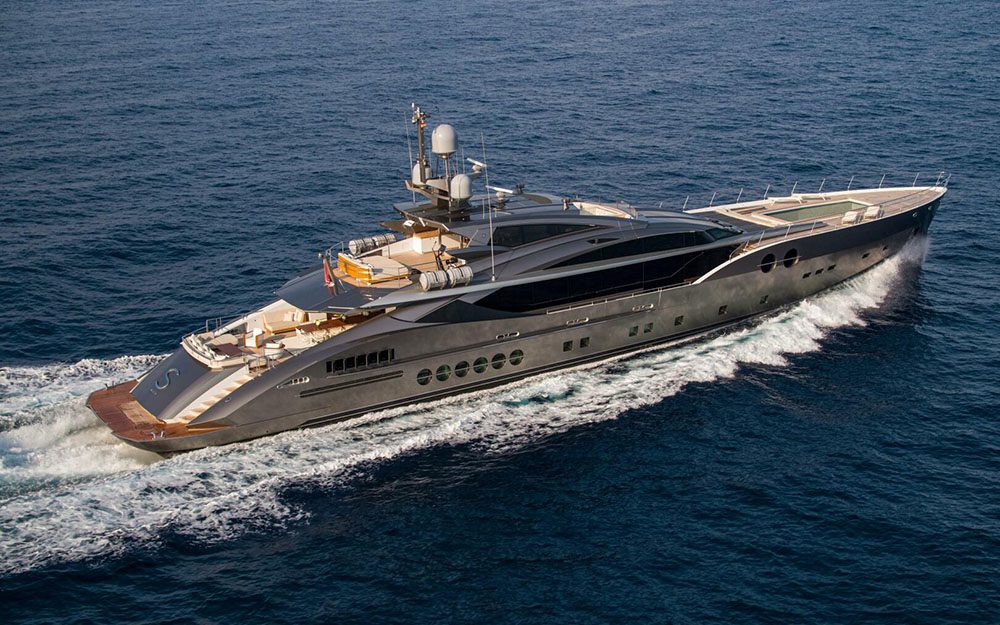

As Hull 3 of the SportYacht 170 Series, sistership to the recently sold DB9, SANAM stands out as one of the most versatile superyachts in her category. Designed by Nuvolari & Lenard, her modern aesthetic features a shallow draft and a transatlantic range of 4,600nm, making her capable of reaching some of the world’s most remote locations. Powered by twin 4613hp MTU engines, SANAM boasts a top speed of 31 knots and cruises comfortably at 17.5 knots, complemented by four Seakeeper Gyro stabilizers for exceptional comfort at anchor.
SANAM represents a unique opportunity to acquire a sport yacht with six staterooms and many distinctive features, all under the same owner and captain since delivery.
Upon boarding via the hidden swimming platform gangway, guests are welcomed into the beach club area. This space is perfect for preparing water toys while staying shaded from the sun. The spacious swimming platform provides easy access to the water and the tender.

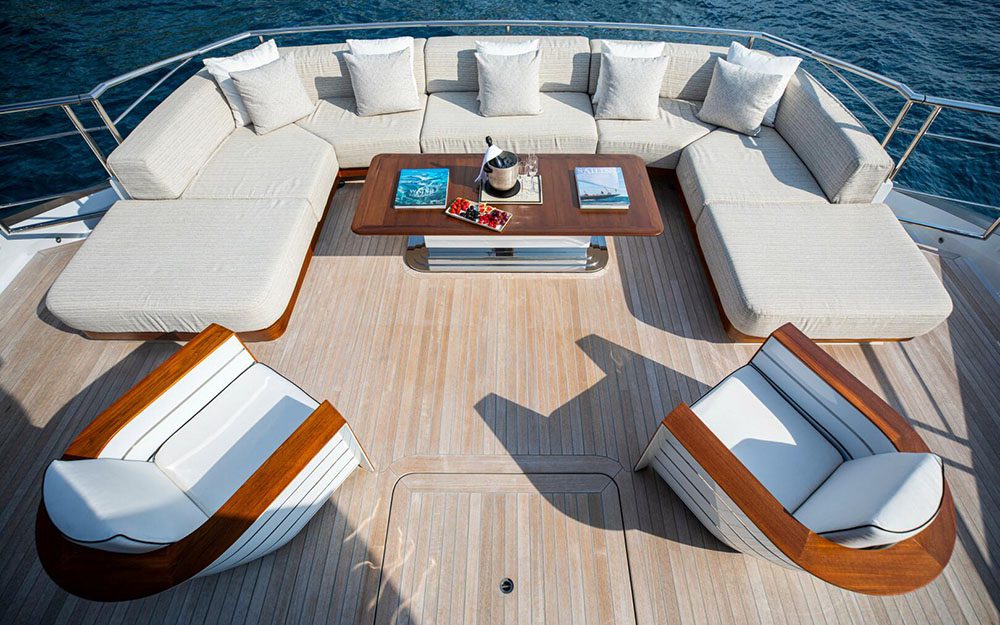

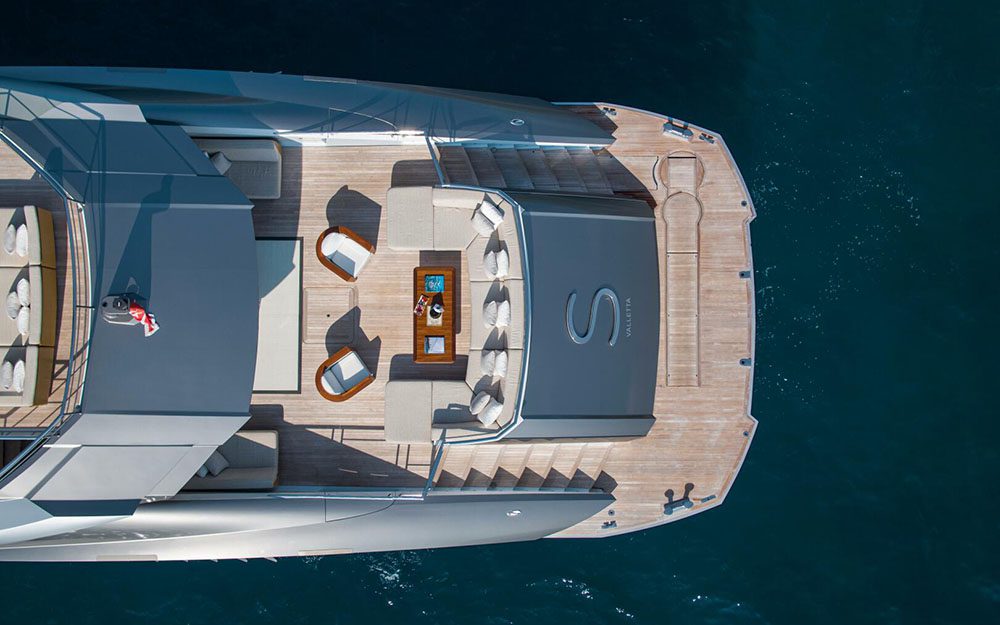

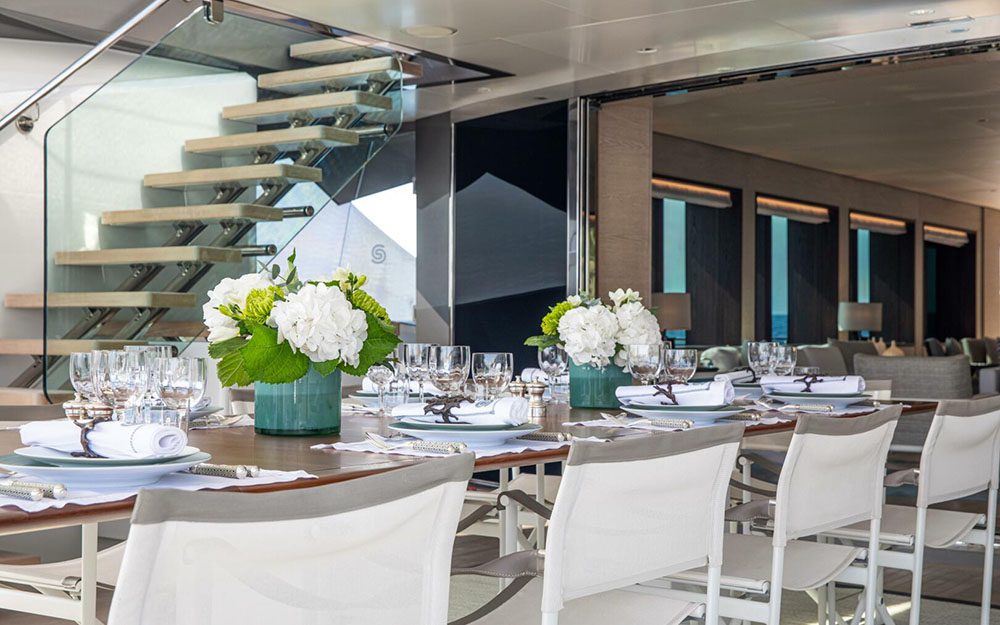

Moving up to the main deck aft, guests will be impressed by the expansive exterior space featuring a large alfresco dining table and a lounge area with a low table. The vast aft deck offers ample space for lounging and dining outdoors.

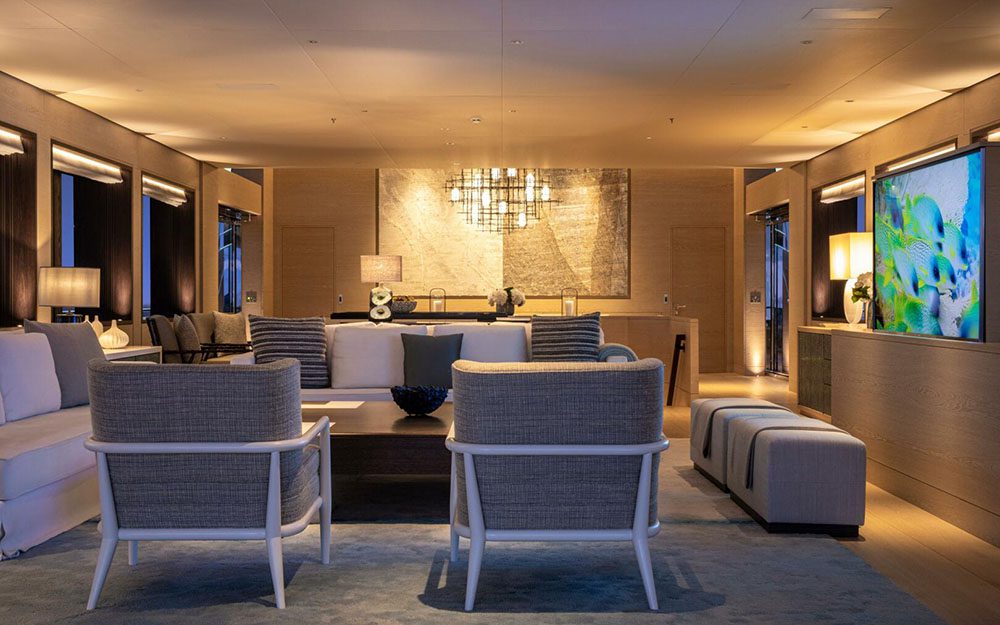

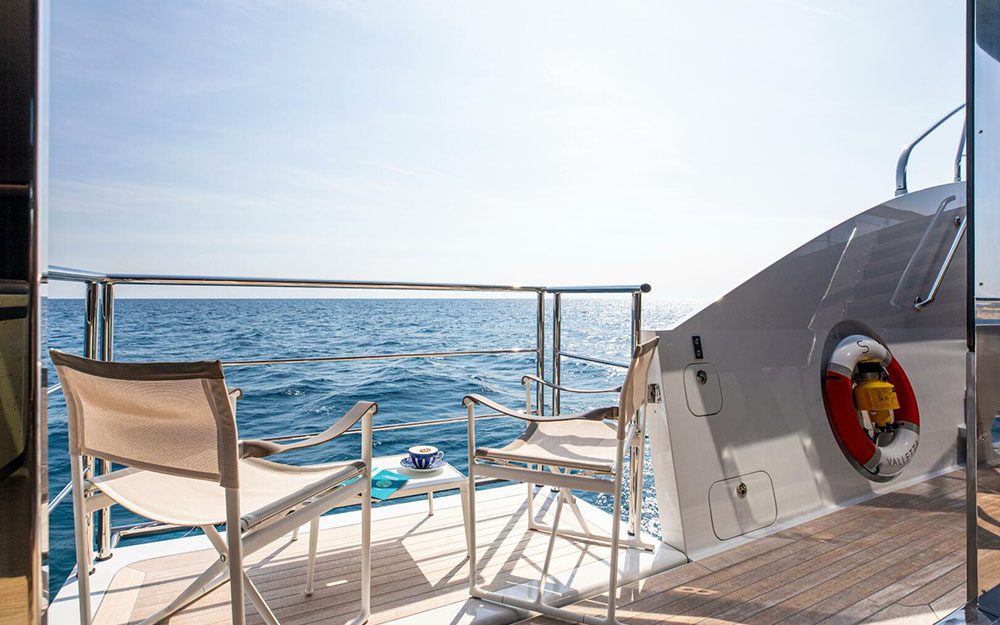

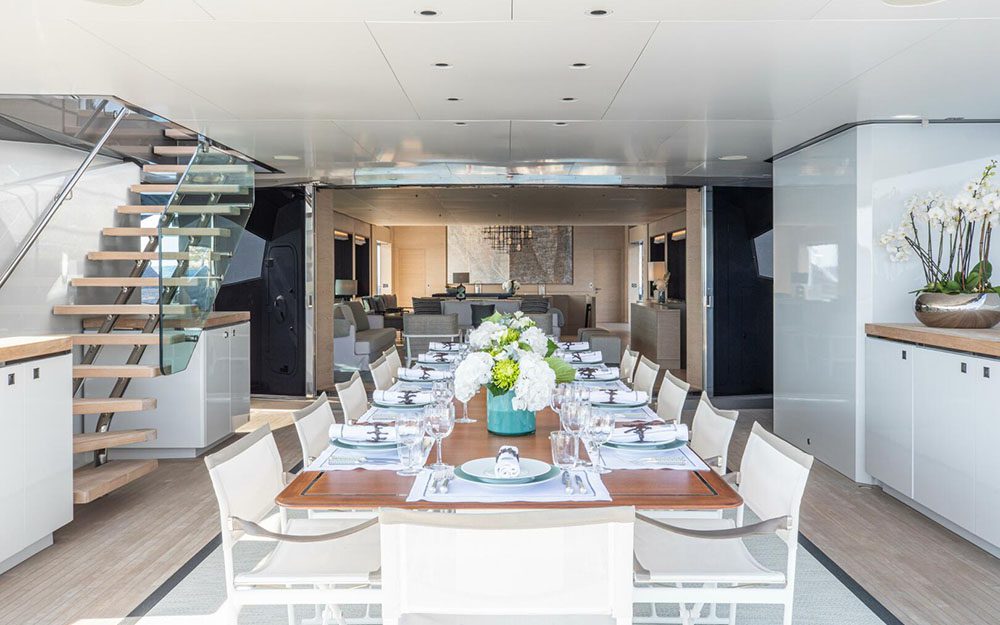

Inside, the main deck salon boasts large windows that create an immersive experience of being outside while enjoying the interior comforts. The dining table, located beneath a double-height ceiling, enhances the sense of openness, further accentuated by floor-to-ceiling windows and exterior opening balconies on each side, providing unobstructed sea views. A guest stateroom is situated forward of the main salon, with the remaining five staterooms on the lower deck.
SANAM’s interiors, crafted by the renowned British design studio Todhunter Earle Interiors, feature a soothing palette of neutrals and soft blues, illuminated by ample natural light from the large picture windows. This creates a calm and inviting atmosphere throughout the yacht.

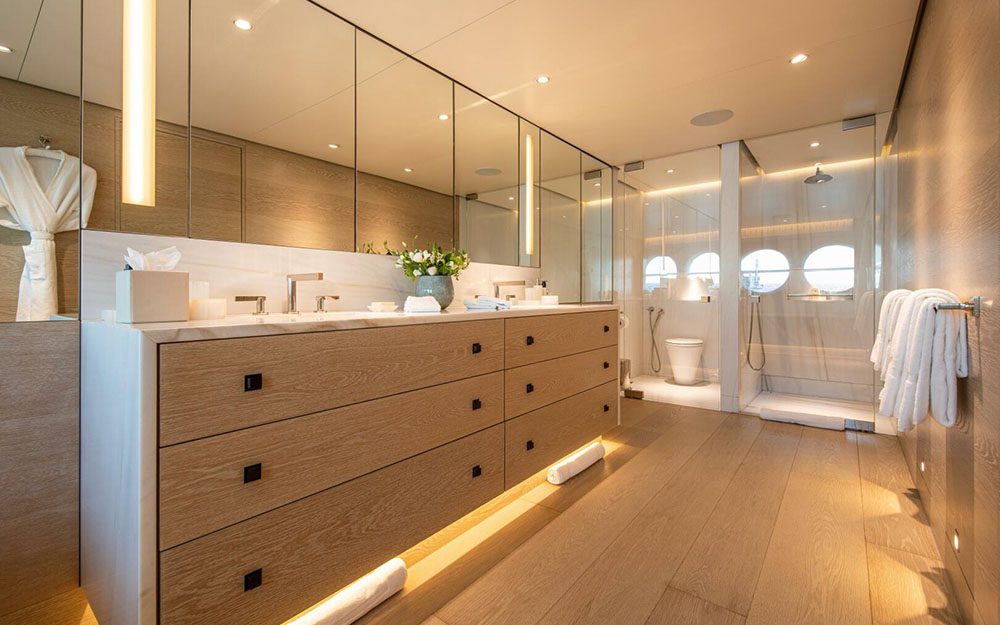

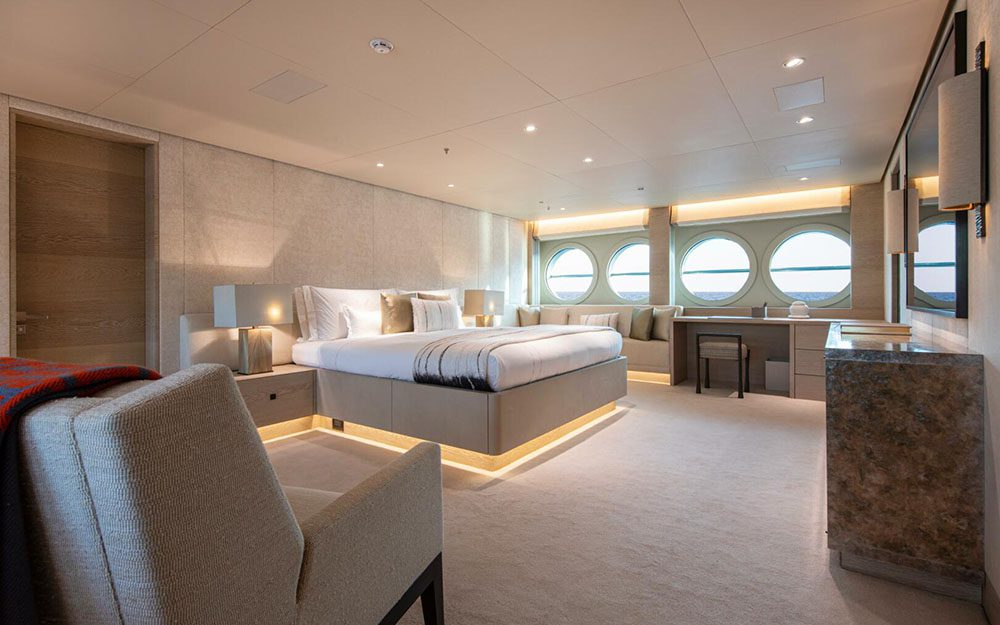

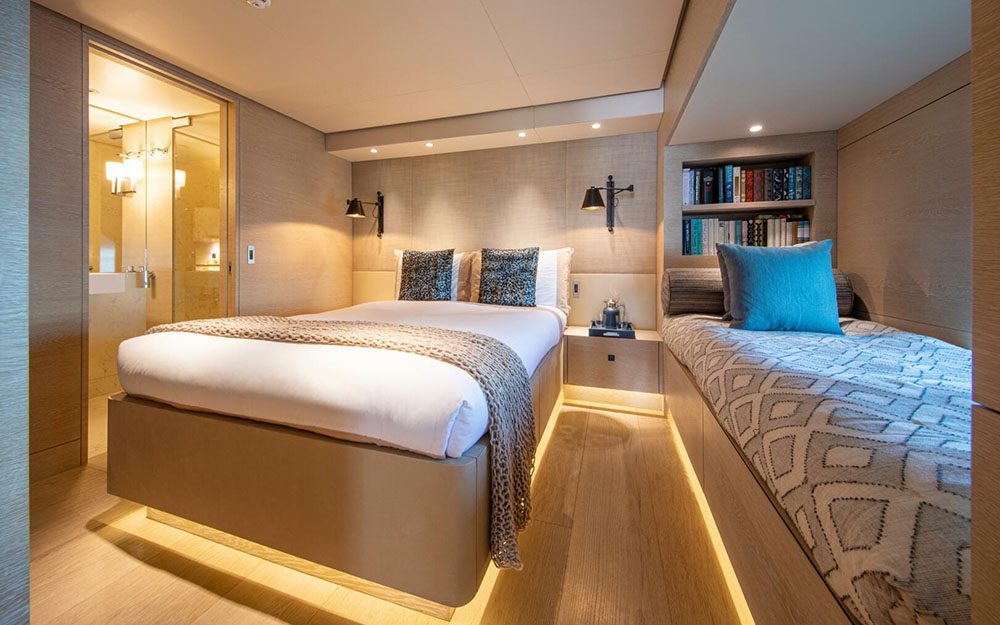

Accommodating 12+3 guests, SANAM offers a full-beam master suite on the lower deck with a walk-in wardrobe, two additional double staterooms, and two twin staterooms each with a Pullman berth.

Key Features:
Last Palmer Johnson ever built
EU VAT Paid
2024 refit
Sleeping 15 guests in 6 cabins
Versatile Yacht able of low fuel consumption or to reach 31 knots
One owner since launched, and same key crews

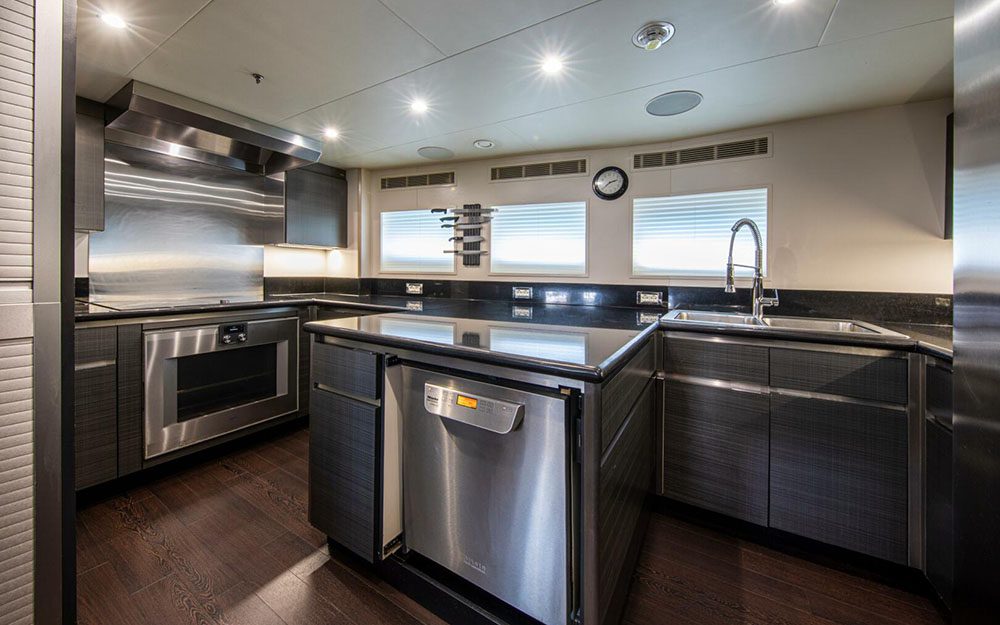

GALLEY/HELM/PILOTHOUSE

1 x Gaggenau BM 4551100 Combi Microwave Oven
1 x Gaggenau BO451111 Oven
1 x Gaggenau 1 X ws462110 warming draw
1 x Gaggenau BO4801111 Oven
1 x Miele PG8056UAE Dish Washer
1 x Cuisinart Rice Maker
1 x Makro Deep Fryer
1 x Miele PG8056UAE Dish washer
1 x Juia We8 coffee machine
1 x De Longhi Nespresso Machine
1 x Blendtec juice/ smoothie machine
1 x Hoshizaki ice machine

ENTERTAINMENT EQUIPMENT

Flat screen Tv, LED, HD, USB relay, MEC Ctrl – (salon, sundeck)
Poly Planar Subwoofer (salon, sundeck)
Bose rectangular speakers (sundeck, fore deck)
Mirror flatscreen tv (owner/guest cabins)
Ceiling sonance XTR speaker systems (owner/guest cabins)
Modular Entertainment Center (owner/guest cabins)
YES application streaming (guest cabin aft)
Ceiling speaker Dali phantom mount system (Galley/Laundry)
Flat screen Tv, LED, HD, USB relay, MEC Ctrl – (salon, sundeck)
Poly Planar Subwoofer (salon, sundeck)
Bose rectangular speakers (sundeck, fore deck)
Mirror flatscreen tv (owner/guest cabins)
Ceiling sonance XTR speaker systems (owner/guest cabins)
Modular Entertainment Center (owner/guest cabins)
YES application streaming (guest cabin aft)
Ceiling speaker Dali phantom mount system (Galley/Laundry)

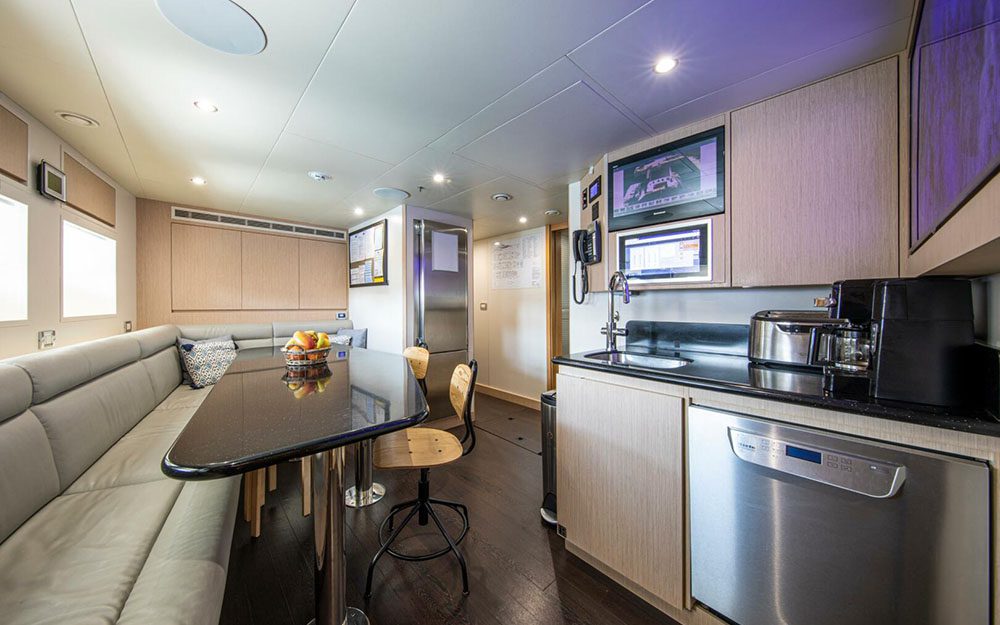

CREW QUATERS

Portable macbooks
3 x Miele PT7153C Vario Clothes Dryer
3 x Miele PW60605 Vario Clothes Washer
2 x Dyson handheld vaccum
1 x Rowenta steam clean iron
1 x Frigoboat G53780U fridge/freezer
1 x Delonghi BCO410.1 Coffee Machine
1 x Furnuno BNWAS BR 540 Cabin Panel
1 x Furnuno HG 8900 VHF Handset Hanger
1 x Samsung flatscreen TV
1 x kitchen aid kettle
1 x Caso 4 slice toaster
1 x Miele PG8056UAE dish washer

COMMUNICATION/NAVIGATION EQUIPMENT

Jastram rudder angle indicators
2 x Furuno 056014 SATCOM
Panasonic cellular system
2x Furuno Fm-8900s VHF Radiotelephones
1x Fs-2575C SSB Radiotelephone
BNWAS BR 510 Watchkeeping
SART x 1 aircraft emergency
Bridge, ER and crew mess – fixed Panasonic KXT7625 – W telephone, engine room has Peltor MT7H79A-C0103 2-way headset telephone
Panasonic KXTDA 151 Cell station ( currently not used)
12 x Hytera XP1 UHF communications
Ritchie Marine magnetic compass
1 x Simrad GC80/85 Gyro compass
1 x Simrad AP 80 Autopilot
1 x B&G H5000 log
1 x Furuno FE-800 Echo sounder
2 x Furuno RCU-014 radar
1 x Transas maxi sailor 4000 chart plotter
2 x Furuno GPS GP 150
1 x Furnuno NX 700 Navtex
1 x wind speed/ direction meter B&G wind instrument
1 x Furuno FA-15 AIS

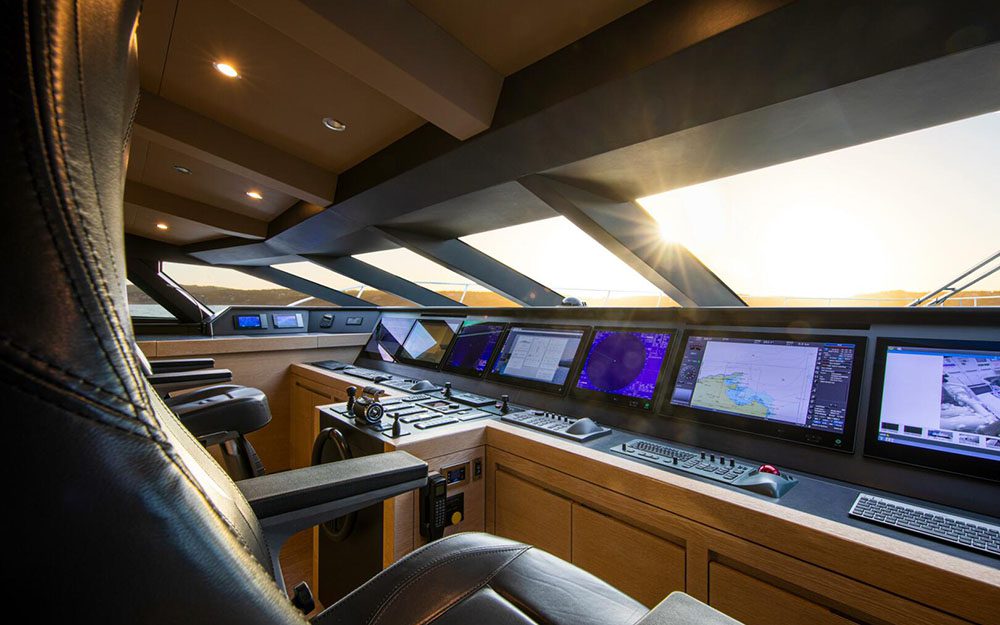

BRIDGE DECK

Epson Inkjet printer/scanner
Ships computer: Lantic server, idea computer
3 x sub zero iCBID 30cl draw fridge/freezer
1 x sub zero wine fridge

SUNDECK

1 x Vitrifrigo C75RXDA4-F fridge
1 x Hoshizaki ice machine

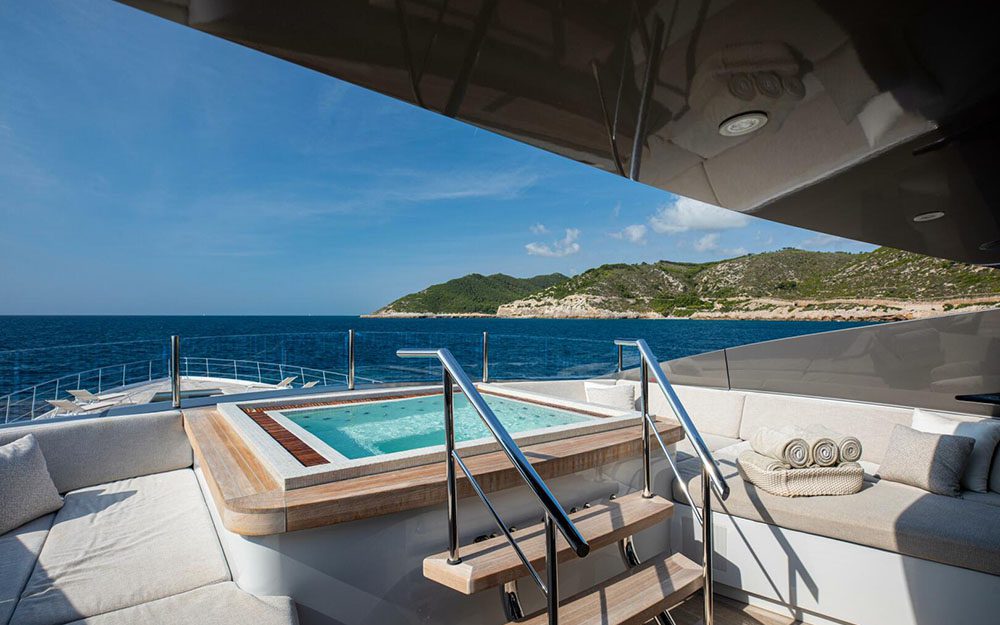

Jacuzzi dip pool
Pool

DECK EQUIPMENT

2 x Maxwell Hydraulic windglass with gypsies and drpe drums
2 x Maxwell electric capstans on aft deck
Anchor, SS316L, HHP, Kedge, 250KG Manson ground tackle
1 x Bow crane
2 x Maxwell Hydraulic windglass with gypsies and drpe drums
2 x Maxwell electric capstans on aft deck
Anchor, SS316L, HHP, Kedge, 250KG Manson ground tackle
1 x Bow crane

SWIM PLATFORM

Opacmare swimming ladder
Fixed garage for water sports access

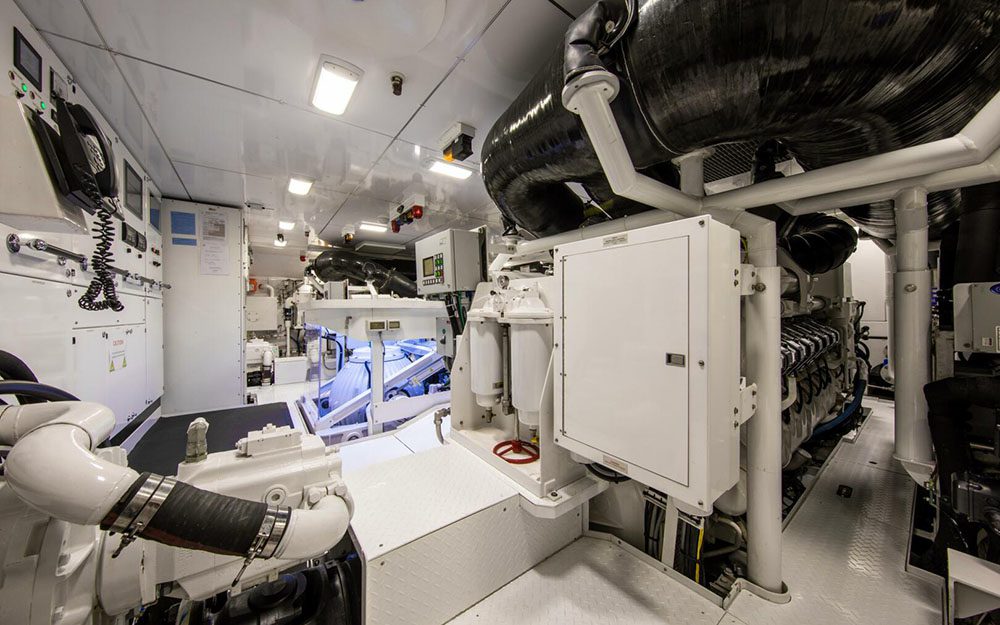

ENGINE ROOM

(2) MTU 16V4000 M93L engines/ 3440kw 4615 BHP at 2100 rpm each – Port side (4714 hours), Starboard (4671 hours)
Chrome Package
Pre lube pumps
(2) ZF 9050V reduction gears at 2.958:1 gear boxes
Stainless steel 316, Teignbridge shaft
5 Blade, S class, Fixed Pitch Rolla SP Propeller
Delta T Control system Manual and Auto with pressure sensor and temperature sensor in engine room

MECHANICAL EQUIPMENT

2 x Kohler generators, RG 608 John Deere 125 KVA, 100KW each – Port side (12,058 hours), Starboard (12,539)
Generators rebuilt at 10,000h including new injectors and injector pumps, new turbos, new intercoolers, all new valves and guides
2 x Hot flow Pre heaters
Jastram steering system
ABT-Trac bow thruster
Seakeepers SK35 gyro stabilizers x 4
Trim Tabs (interceptors)
Racor fuel filters
Fuel oil separator Alfa Lavel MMB304S-11
Bilgmon 488 Oil/Water separator (Bors Ecologix Environmental System)
2 x ABB 3 Phase motor M3AA 132 SMD 4 bilge pump
2 x Hubbell MSE50-0-11SL T3-xx 50 gallons Boilers
Tidalwave HMX Headhunter sewage treatment
Tecma with Planus touch button controllers WC’s
Condaria 450,000 BTU airconditioning
21kx boiler for heating
WW.W.I. Proytec corrosion monitoring system/induced system/Cathelco antifouling system

ANCILLARY EQUIPMENT

1 x set of free weights
1 x TRX

ELECTRICAL EQUIPMENT

1 Shore Power Converter, 125 kva (99kw), 400V, 3 phase and neutral 50 Hz
AGM Batteries, 24VDC, Life Line GPL-315 T Battery charges

SAFETY, SECURITY AND FIREFIGHTING EQUIPMENT

2 X ABB 3 phase M3AA 132 SMD 4 fire pump
Safety
4 x 25 persons liferafts Zodiac
2 x life rings with smoke
39 SOLAS life jackets adults
8 SOLAS life jackets child
4 x line throwers
6 x eebd
Med Air. SOLAS B kit (under annual subscription
39 fire extinguishers fixed fire systems: ultra fog fire suppression system throughout accommodation space and FM200 in Engine Room
Flow marine/ Etouch integrated alarm system
Security
CCTV on Mast, MD Aft, Side decks and engine room
FLIR: Infrared camera on mast for search and rescue
Digital electronic safes

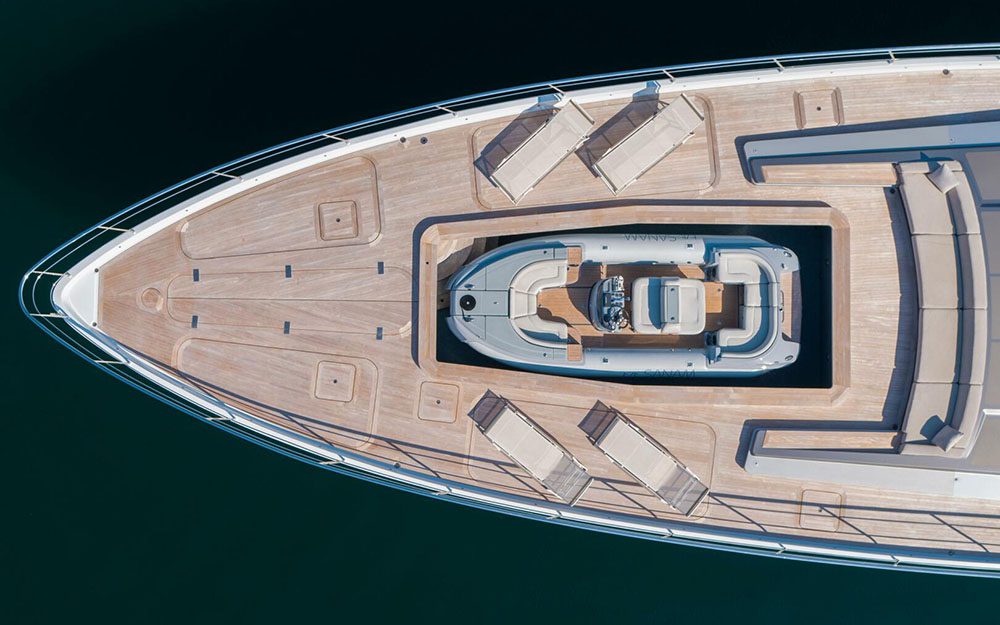

TENDERS AND TOY

Castoldi Rescue tender Jet 21LC, 260 HP, turbo drive water jet
2 x Sea Doo 2020 RXPX 300 HP
3 x full set dive gear
2 x Sea Bobs F5S
1 x Inflatable Slide FunAir
1 x Inflatable floating dock FunAir
1 x Inflatable 12 meters swimming pool FunAir
1 x Water ski (Adult)
1 x Water ski (Kid)
3 x Ripcurl stand up paddle boards
2 x Jobe wake boards
1 x Spinner “Spinera endless ride” Tow toy
2 x water donuts

UPGRADES/REFITS – 2024

Intermediate Lloyds survey with haul out in MB92. Lloyds found no issues, no signs of corrosion.
Including but not limited to
Paint of antifouling.
Check rudder clearances
Remove and dynamically balance propellers to 1350 RPM (cruising RPM) and redo Prop speed on exterior prop line
Service: Humphries trim tabs
Redo the vinyl cover on the hull.
New air conditioning units x 3
Professionally cleaned Galley extraction and all air-conditioning units.
Install ECDIS compliant electronic chart system in bridge with battery (still finalising agreement with Malta flag on battery back up but system in place and working)
Full regular maintenance on all major engineering component parts including stripping down large items like Passerrelle, re-coating, servicing and coating.
Professional service on Gyro stabilisers, Generators and Main Engines.
Full maintenance of
Lighting
Electric main salon sliding doors (removed and rewired, checked, repaired where necessary).
Hydraulics of balcony doors and winches.
Castoldi sent to EAMS for full strip down and rebuilt (over 100k Euros)
Sea Bobs and e-foils sent for annual maintenance and checks
Programming updates of AMS and AV/ IT
Interior and furnishing
New wall covering and carpets in Master Cabin (underlay removed and cabin received deep professional / industrial cleaning before installing new carpet).
Normal winter maintenance including full clean and polish of all marble.
