2025 DE HAVILLAND TWIN OTTER DHC-6-300G S/N 1001
Price
Price On Request
Description
HIGHLIGHTS
Brand New – Limited Time to Spec
VIP, Shuttle, and Float Options Available
Full Factory Warranty
Full Factory Training Provisions
Multiple Configurations Available
Delivery in Early 2025
Proven Twin Otter Performance with Updated Avionics
AIRFRAME
| Total Time Since New | — |
| Entry into Service Date | May 2025 |
| Home Base | Calgary, AB, Canada |
| Program Coverage | Program |
| Certification | Currently Operated – FAR Part 91 / Part 135 / EU OPS |
ENGINES
| Left Engine | Right Engine | |
| Description | Pratt & Whitney Canada – PT6A-27 | |
| Serial Number(s) | TBD | TBD |
| Total Hours Since New | — | — |
| Total Cycles Since New | — | — |
| HSI Due / Overhaul Due | 2,000 hr. Hot Section / 4,000 hr. Overhaul | |
| Program Coverage | Pratty & Whitney ESP Program Available | |
PROPELLERS
| Left Propeller | Right Propeller | |
| Serial Number(s) | TBD | TBD |
| Total Hours Since New | — | — |
| Overhaul Due | 3,000 hr. Overhaul | |

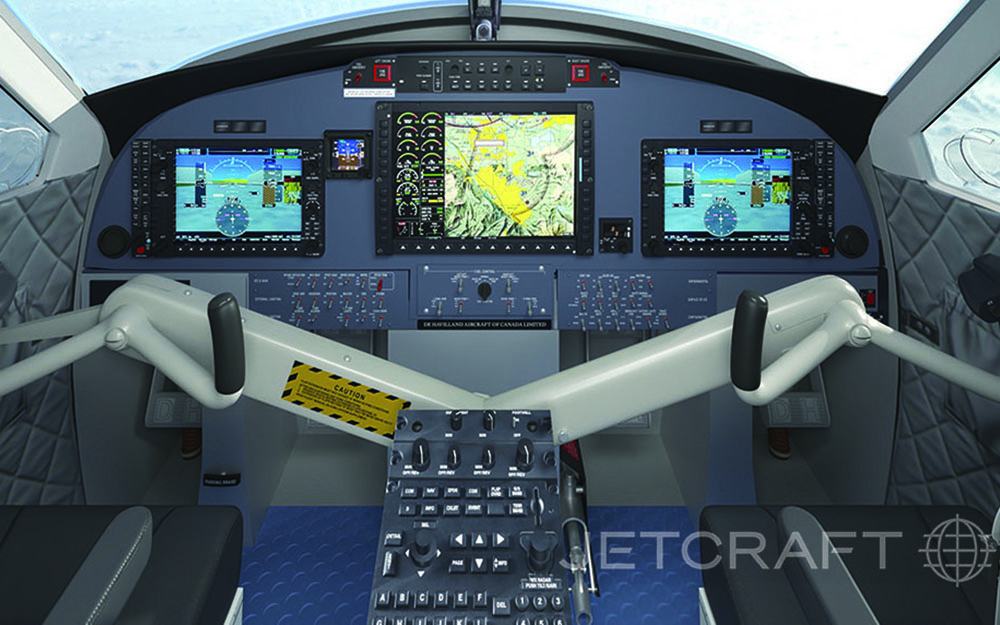

AVIONICS
The BASE De Havilland DHC-6-300G is equipped with an integrated, Garmin G1000NXi avionics suite. A general summary of this aircraft’s avionics suite is as follows:
| Type of Unit |
| – Pilot/Co-Pilot Primary Flight Displays (PDF) (10-inch) |
| – Central Multi-Function Display (MFD) (15-inch) |
| – FMS Controller |
| – Flight Director Mode Controller |
| – Dual Air Data, Attitude, Heading Reference System (ADAHRS) |
| – Dual Magnetometers |
| – Dual Integrated Avionics Units
o Single VHF COM Transceiver o GNSS and SBAS certified receivers o VOR/ILS localizer o ILS glide slope receiver |
| – Dual Engine & Airframe Units |
| – Dual Audio Control Panels |
| – Single Mode-S Diversity Transponder (ADS-B In/Out) |
| – Electronic Standby Instrument System (ESIS) |
| – One Magnetic Standby Compass |
| – 406 MHz ELT with Navigation Interface |
| – Combined Cockpit Voice and Flight Data Recorder with Recorder Independent Power Supply IPS) |
| – Aural Warning System |
| – Cockpit USB Charging Ports |
| – Electronic Flight Bag (EFB) |
MAJOR INSPECTION STATUS
| Inspection | Last Performed | Next Due |
| A Check | n/a | 125 Flight Hours |
| B Check | n/a | 250 Flight Hours |
| C Check | n/a | 500 Flight Hours |
| D Check | n/a | 6,000 Flight Hours |
| 5 Year Check | n/a | May 2030 |
| 10 Year Check | n/a | May 2035 |
| Landing Gear Overhaul | n/a | May 2035 |
OTHER NOTABLE FEATURES
| Float Provisions |
| Stainless Steel Flight Control Cables |
| Airstair Door |
| Additional Corrosion Protection |
| Optional Entry-Into-Service Packages are available |
| Additional Avionics Warranty can be purchased directly with Garmin |
| Additional Configurations available including VIP and Amphibious Floats |
| STOL Capable |
| Single or Dual pilot capable. |
WEIGHTS
| Aircraft Weights | Kgs | Lbs |
| Max Take Off Weight | 5,670 | 12,500 |
| Max Landing Weight | 12,300 | |
| Operating Weight | 3,175 | 7,000 |
WARRANTY
De Havilland Canada offers a comprehensive and fully transferable warranty generally outlined as follows:
| Expiration | |
| Aircraft Limited Warranty – De Havilland Canada | 3-years or 3,000 flying hours |
| Engines – Pratt & Whitney Canada | 1,000 flight hours (regardless of calendar time) |
| Propeller – Hartzell | 2-years or 1,000 flight hours |
| Propeller – Hartzell (de-ice boots) | 18-months or 2,000 flight hours (upon original installation) |
| Avionics – Garmin | 2-years or 800 flight hours (upon certification of the aircraft) |

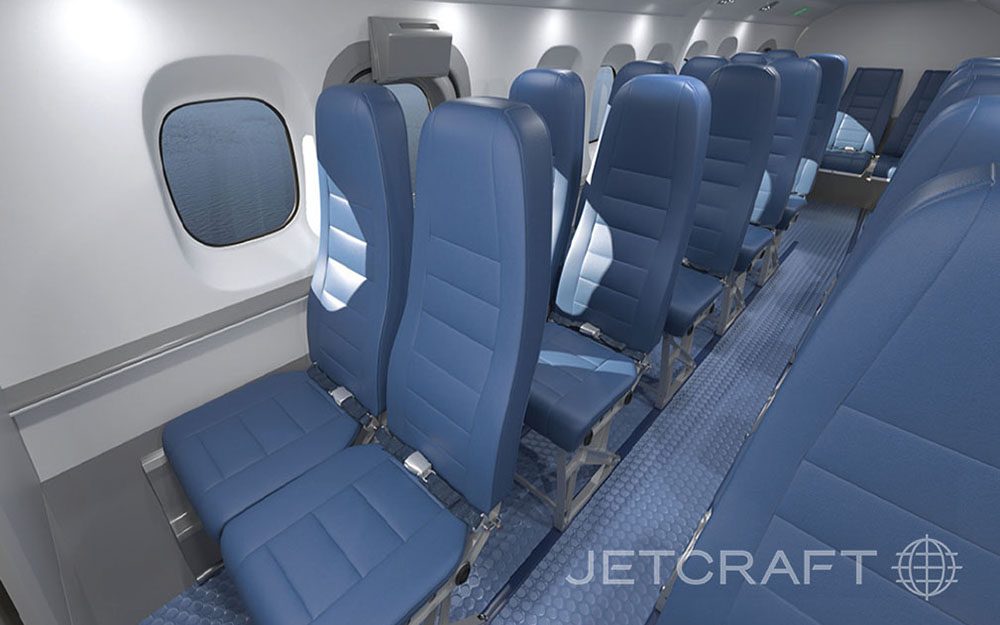

INTERIOR
| Number of Passengers | 19 Passenger Standard Configuration |
| Forward Cabin Configuration | 5 Rows of 1 x 2 Economy Seats |
| Aft Cabin Configuration | Single Economy Seat opp. Entry Door with Aft 3 Place Economy Seat Bench |
| Other Notable Feature(s) | Provisions for under seat stowage of hand baggage. Lap type safety belts, LED overhead lighting, and cabin air outlets are available at each seat position. |
| Last Refurbished Date | New Delivery |
EXTERIOR
| Base Paint Color(s) | All-over White with black exhaust stacks |
| Stripe Color(s) | Available on request |
| Last Painted Date | New Delivery |
