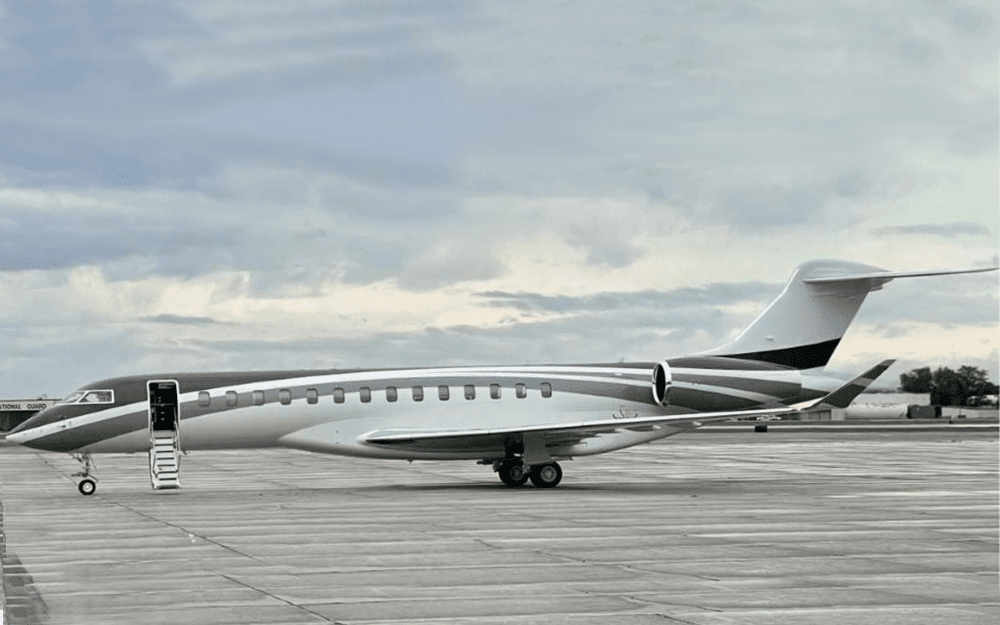

2022 GLOBAL 7500 S/N 70114

HIGHLIGHTS

US Based & Registered
Entry Into Service Late 2022
372 Hours TT
Full Manufacturer Warranty Transferable
Full Programs
KA Band Wi-Fi
Completing 12 Month Inspection (Aug-23)
Permagard Paint Sealant (Aug-23)
40″ HD Monitor on Credenza
Vertical Weather
Predictive Windshear
Surface Management System
Aft Stateroom with Large Bed

AIRFRAME

372 Hours Since New
139 Landings

ENGINES

GENERAL ELECTRIC PASSPORT

Engine 1
Total Hours: 364
Total Cycles: 136

Engine 2
Total Hours: 364
Total Cycles: 136

APU

SAFRAN SPU300[BA]

AVIONICS

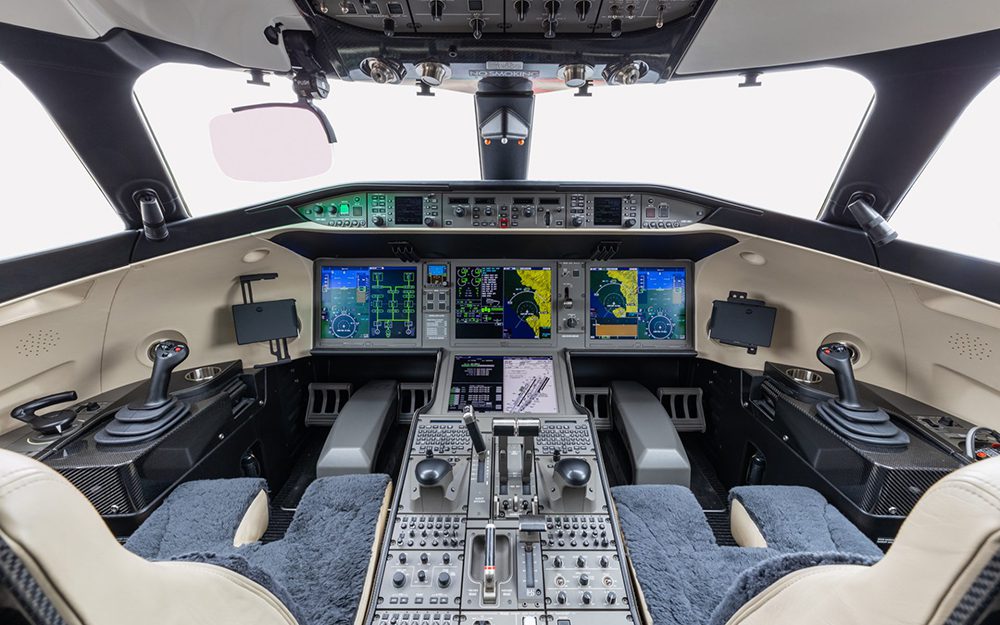

The full fly-by-wire (FBW) flight control system features the Bombardier Vision Flight Deck:
Four 14” x 11” AMLCS – LCD Adaptive Flight Displays
Three (3) VHF communication radios
Two (2) HF transceivers
One (1) dual SELCAL system capable of monitoring
three (3) VHF and two (2) HF radios
One (1) Iridium Satellite Comm. Sys. with two (2) voice channels and one (1) ata Channel
One (1) dual channel interphone system
Two (2) Integrated Flight Information System (IFIS) with dual File Server Unit
One (1) Head-Up Display (HUD) System
One (1) Enhanced Vision System (EVS)
One (1) Synthetic Vision System (SVS)
One (1) Electronic Integrated Standby Instrument (ISI)
One (1) Air Data System (ADS) composed of four (4)
Air Data Smart Probes (ADSP)
One (1) Weather Radar
Three (3) Inertial Reference Systems (IRS)
Two (2) GPS WAAS receivers
Two (2) VHF navigation receivers
Two (2) ADF receivers
Two (2) DME transceivers
One (1) Traffic Surveillance System and One (1) standalone Transponder capable of:
 Dual transponder functionality
 TCAS II change 7.1
 ADS-B Out
Two (2) Radio Altimeter systems
One (1) Terrain Awareness and Warning Sys. (TAWS)
Three (3) Flight Management Systems (FMS)
Electronic Flight Instrument System (EFIS)
Electronic Checklist (ECL)
Dual synchronized digital GPS clocks
Engine Indication and Crew Awareness Sys. (EICAS)
Cockpit Voice Recorder (CVR)
Flight Data Recorder (FDR) with underwater location
Emergency Locator Transmitter (ELT)
Automatic Flight Control Systems (AFCS)
 Flight guidance;
 Autothrottle;
 Autopilot;
 Yaw damper;
 Automatic pitch trim.

ADDITIONAL OPTIONS

Surface Management System – Airport Moving Map
Predictive windshear
Vertical weather

EMERGENCY EQUIPMENT

Three (3) portable fire extinguishers
Crew and passenger life vests
Three (3) rafts with an integrated ELT
Three (3) smoke detectors with EICAS annunciation (lavs & Baggage Compartment)

OPTION # DESCRIPTION

2500-3027 Aft Stateroom
3435-0001 Surface Management System
3441-0002 Predictive Windshear
3441-0003 Vertical Weather

DESIGN ELEMENTS

Custom Carpet.
PSU handrail upholstered in Ultraleather.
Upholstered Aft Stateroom Bed headboard.

ENTRANCE

Jump Seat Sheep skin cover.
Crew Area Partition Access Door.
Crew Area Magazine Rack.

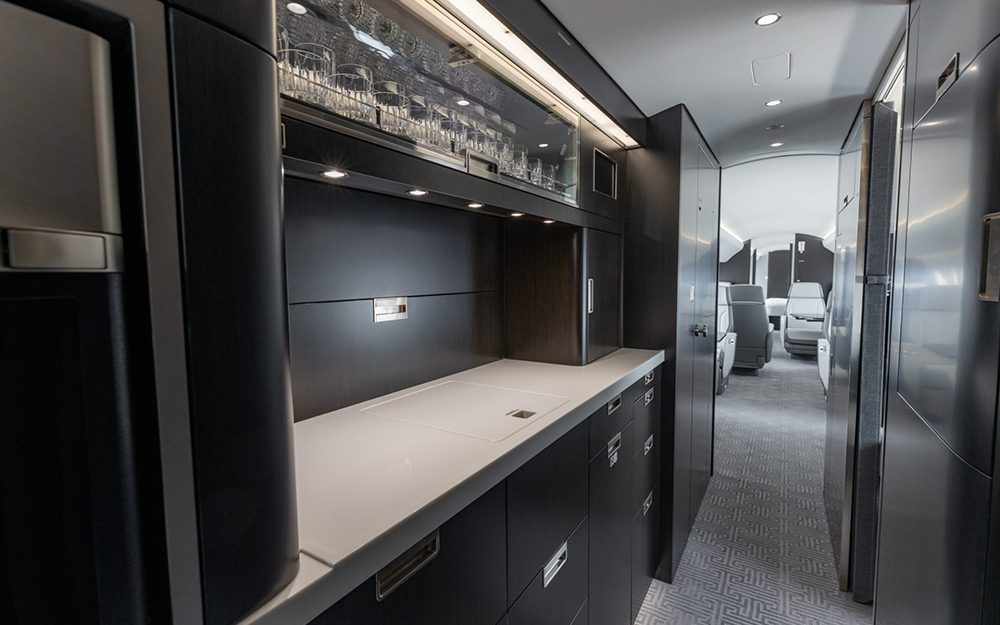

Additional Pull-Out Worksurface under microwave oven in the Galley.
Provisions for coffee maker in a Galley compartment with a slide-out tray behind a nesting door.

MISCELLANEOUS

Qty 6 “Bed-In-A-Bag” – loose equipment.

INTERIOR

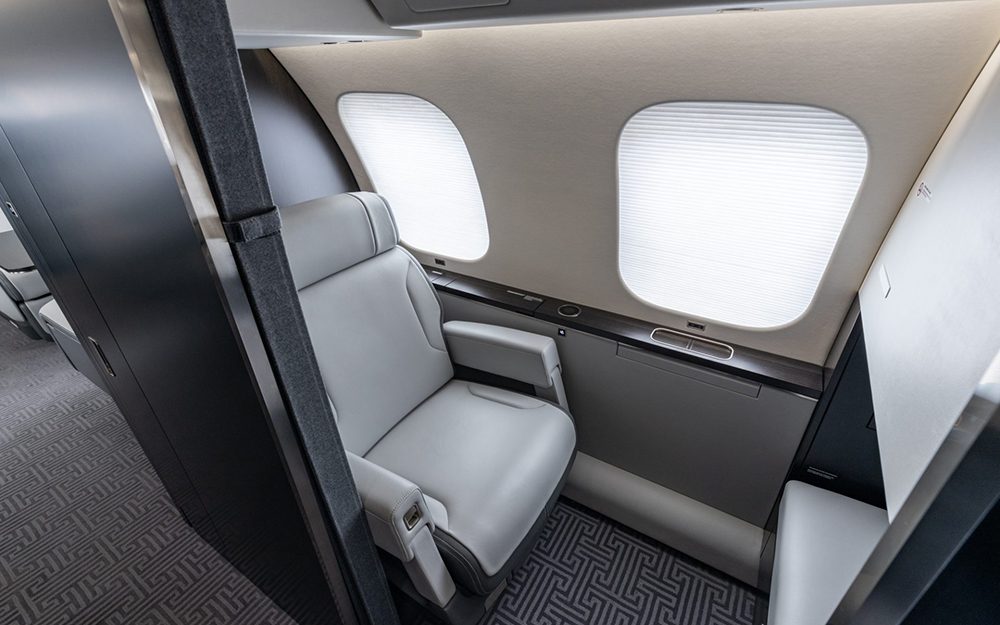

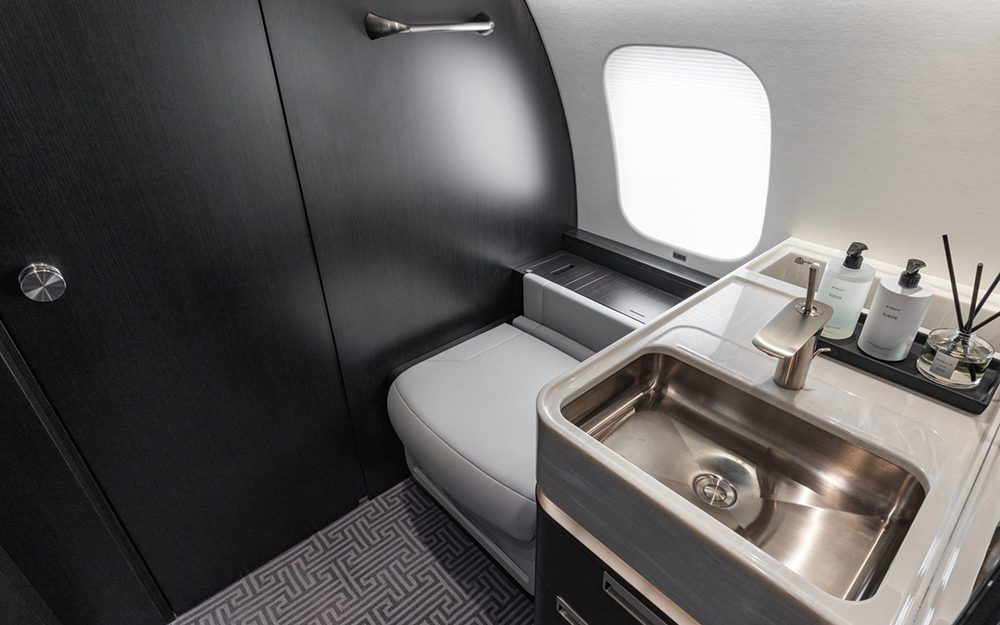

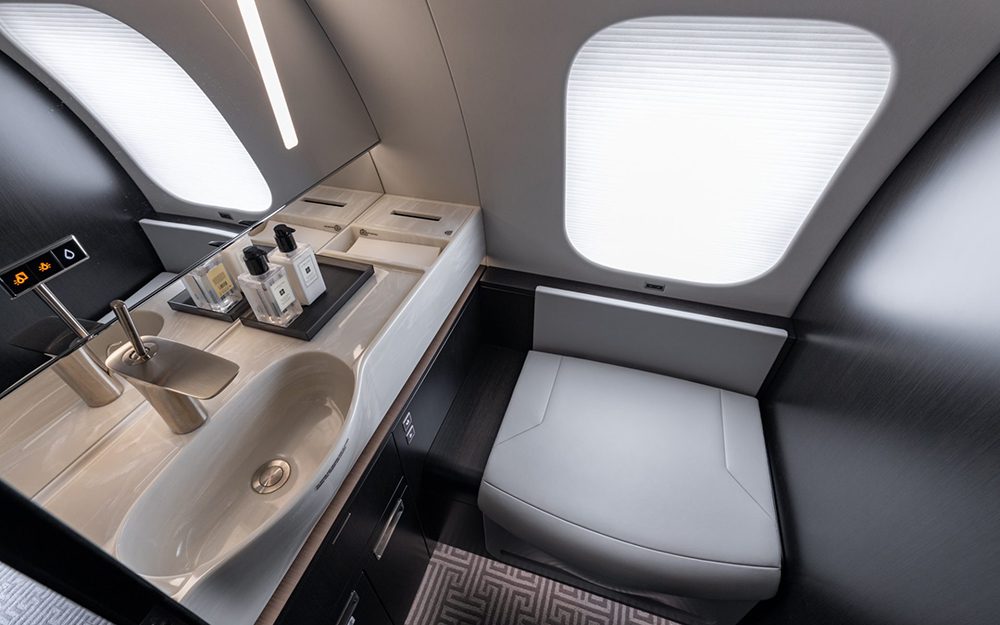

13-passenger plus bed. Forward galley, crew rest and lav. Aft main lav.

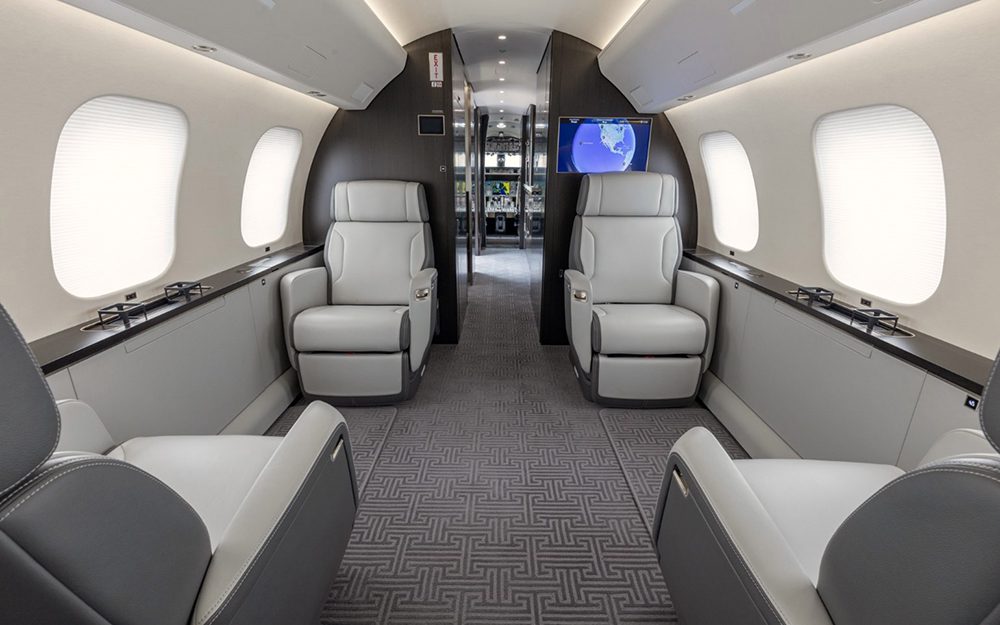

Zone 1: Fwd Cabin Bulkhead with LH Door and RH 24″ Flush Mounted Bulkhead Monitor.
RH & LH Single Lounge Seats.
Lounge Seats with Depth Adjustment.

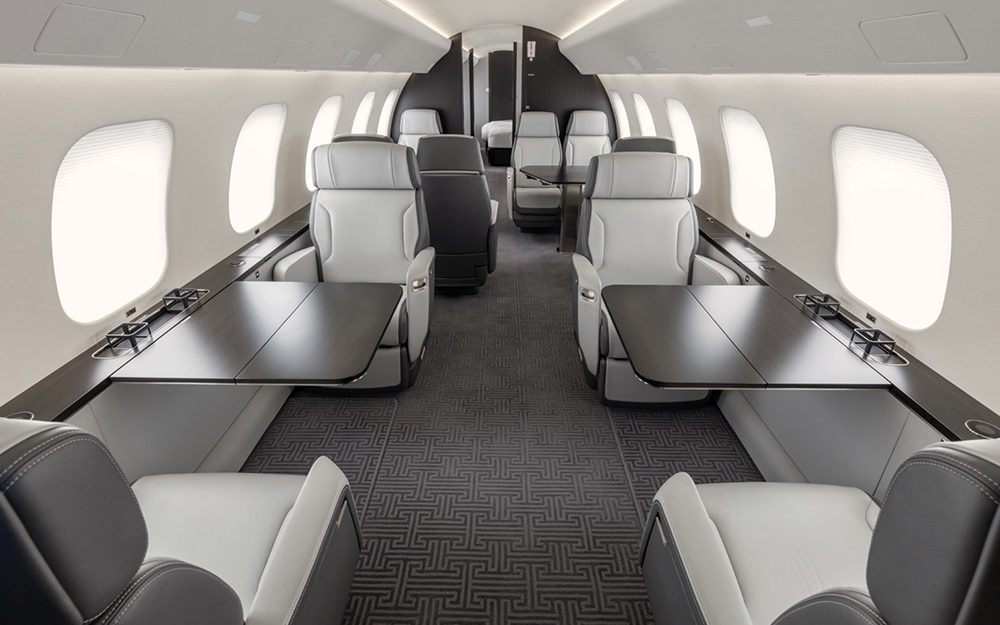

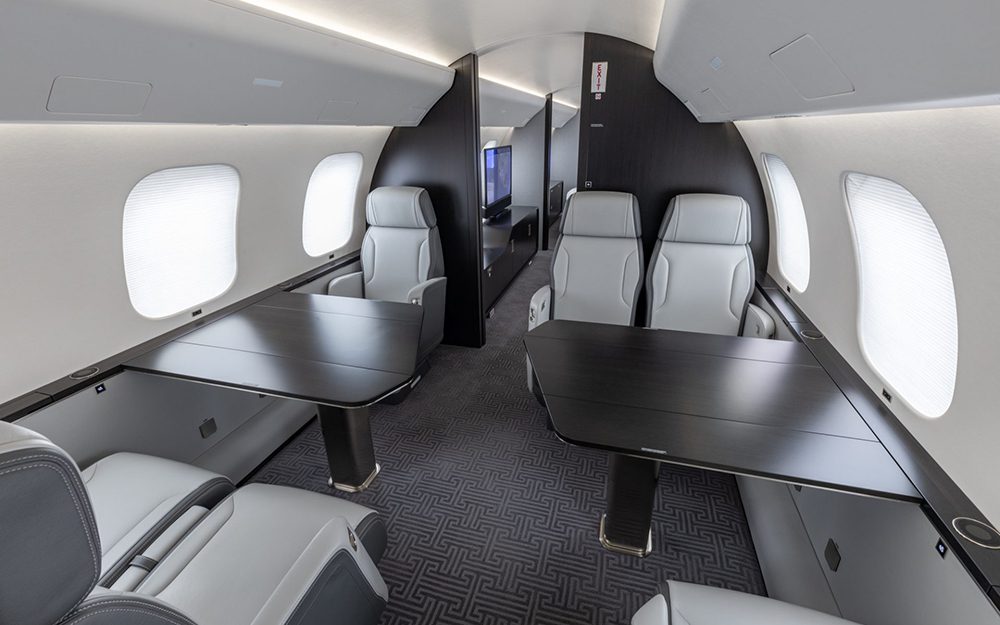

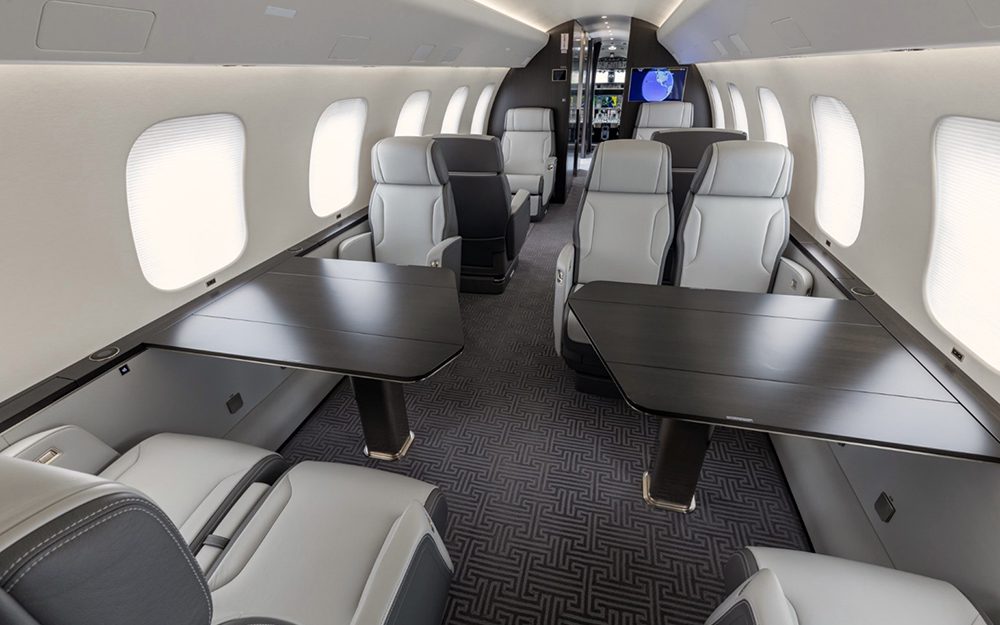

Zone 2: 6-place Angled Conference Grouping.

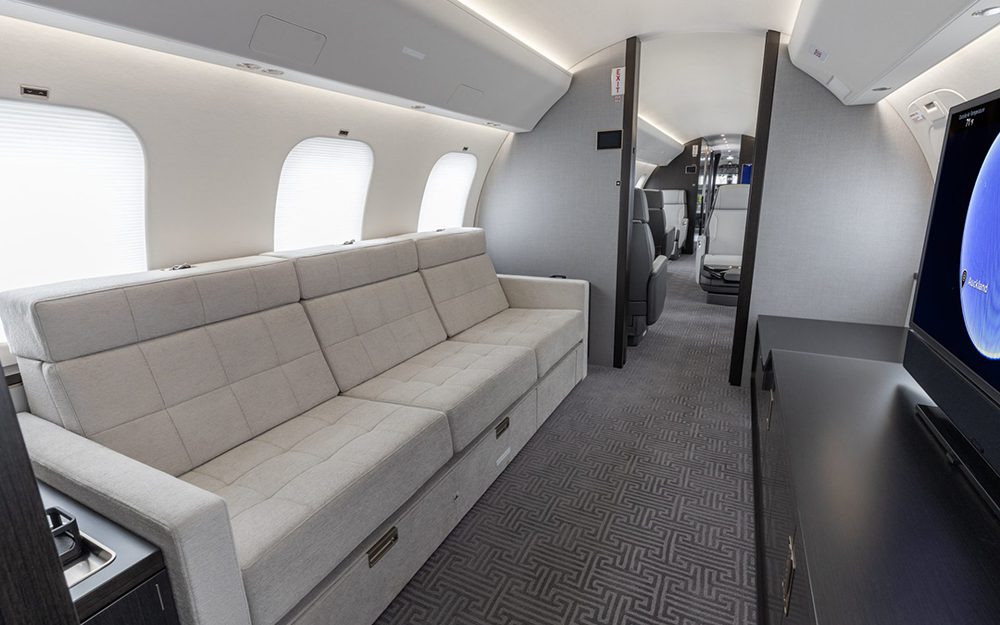

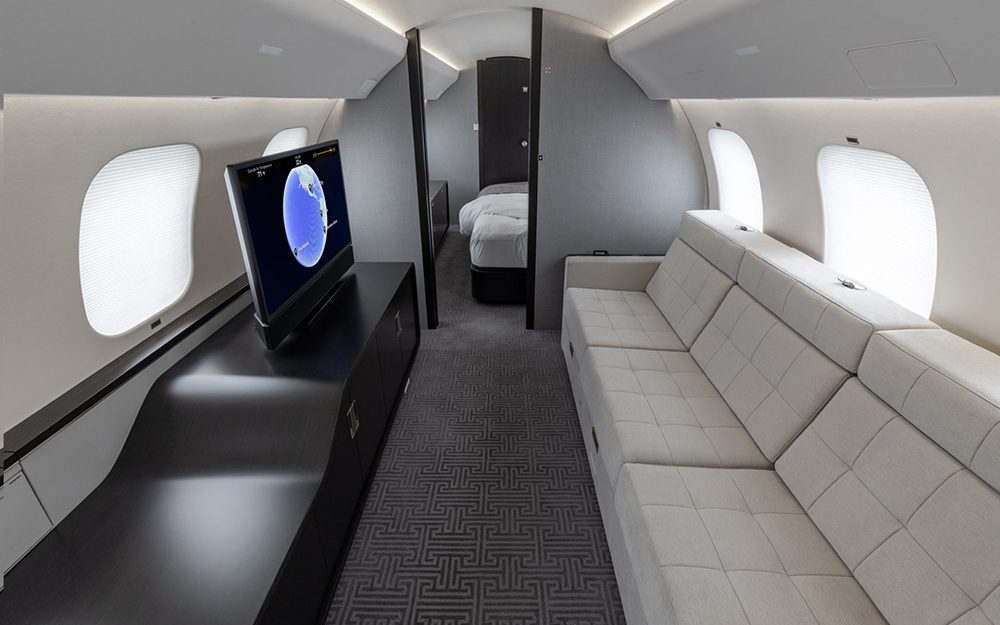

Zone 3: RH Credenza & LH Divan.
Top Mounted 40″ HD Monitor on Credenza.

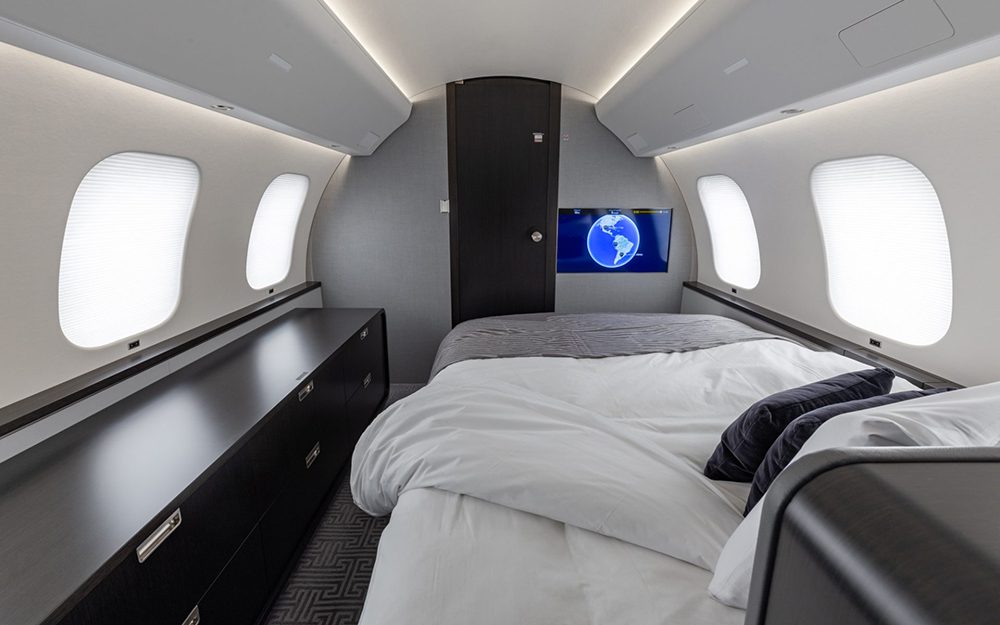

Zone 4: Aft Stateroom – RH Narrow Credenza with LH Large Bed.
Flush Mounted 32” HD Monitor on forward face aft LH Bulkhead.
Baggage: Additional Water Tank Enclosure Baggage Shelves.
Additional Baggage Coat Rod.
Cabin: Main Cabin Gaspers.
