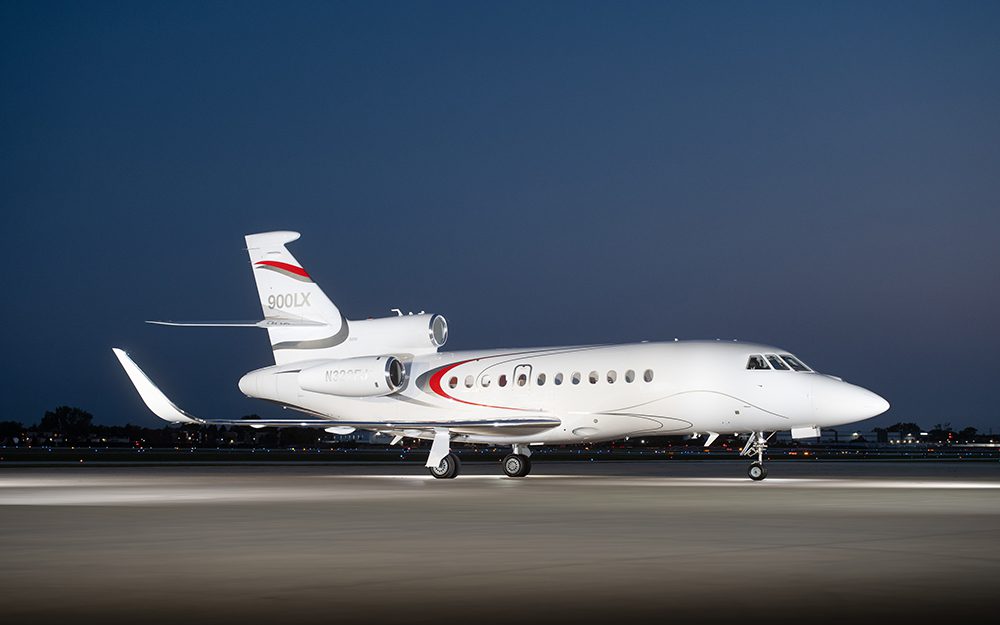

2020 DASSAULT FALCON 900LX S/N 322

HIGHLIGHTS

Outstanding One Owner US Pedigree
Fresh Pre-Purchase Evaluation – Dec 2024 by Dassault
Fresh 12 & 24 Month Inspections – Dec 2024 by Dassault
Factory Warranty Remaining
Beautiful Cosmetics in Excellent Condition
Preferred 14 Passenger Interior Configuration
Full Programs – FalconCare Elite & MSP Gold

AIRFRAME

Total Hours: 1794
Total Landings: 668

ENGINES

Honeywell TFE731-60

Engine #1
Serial Numbers: P-134276
Total Hours: 1794
Engine Cycles: 668

Engine #2
Serial Numbers: P-134268
Total Hours: 1794
Engine Cycles: 668

Engine #3
Serial Numbers: P-134273
Total Hours: 1794
Engine Cycles: 668

APU

Honeywell GTCP36-150F

Total Hours: 723
Serial Number: P-682

AVIONICS

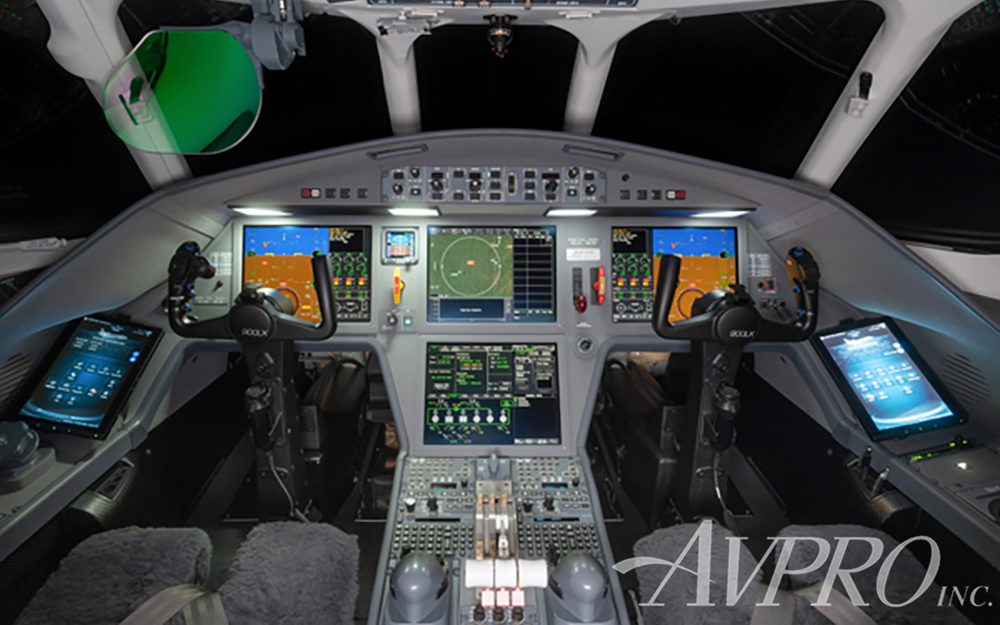

Falcon EASy II Flight Deck
Honeywell Flight Display & Management w/ 4 LCD Units + 2 Cursor Control Devices
Honeywell Flight Control System with Auto Throttle
Honeywell Communications Management Function (CMF) w/ FalconConnect
Honeywell Central Maintenance Computer
Honeywell Enhanced Avionics System – EASy II Cert 4 Upgrade w/ Push-to-Load Function
FalconEye Combined Vision System
o FalconEye Head-up Display (HUD) + Head-up Synthetic
Vision System (SVS)
o FalconEye Enhanced Vision System (EVS) + Combined Vision
System (CVS)
Honeywell Electronic Jeppesen Chart Capability
Dual Honeywell TR-866B VHF Communication Radios (COMM)
Third Honeywell TR-866B VDR (VHF Mode 2 Data Radio) VHF Voice & Flight Deck Data Link Communications System
Dual Honeywell VOR/ILS/Marker Navigation System (NAV)
Dual Honeywell Mode S Transponders (ADS-B Out ready)
Dual Honeywell DF-855 Automatic Direction Finder (ADF)
Dual Honeywell DM-855 Distance Measuring Equipment (DME)
Dual Honeywell AZ-200 Air Data Computer (ADC)
Dual Honeywell MAU-920 Modular Avionics Unit (MAU)
Dual Honeywell Flight Management Systems (FMS)
Dual Honeywell GPS (SBAS capable)
Triple Honeywell Laseref V Micro Inertial Reference Systems (IRS)
Triple Honeywell AV-900 Audio System (req’d for FAR Part 135)
Dual Rockwell Collins HF-9034A HF w/SELCAL
Honeywell Primus 880 Weather Radar
Honeywell RT-300 Radio Altimeter
Honeywell EASy EGPWS w/Windshear
ACCS TCAS 3000 w/Change 7.1
Honeywell SS Cockpit Voice Recorder (SSCVR)
CVR – Recorder Independent Power Supply (RIPS) Requirement
Honeywell Flight Data Recorder Upgrade to 88 Parameters
CMC CMA-1310 PilotView Electronic Flight Bags w/ Side Console Mount (pilot & copilot)
ELTA ADT-406 Emergency Locator (ELT) w/ Nav System Interface
Iridium Solution for Cockpit Data (FANS 1/A, AFIS)
Smiths Standby Magnetic Compass
Meggitt MK2 Secondary Flight Display
FalconBroadcast

LOADED WITH OPTIONAL EQUIPMENT

FalconEye Combined Vision System (HUD + EVS + SVS)
Ka-Band Satcom & High Speed Streaming Internet
CPDLC with FANS-1/A+ & ATN-B1
SBAS / LPV
Honeywell SmartRunway RAAS
88 Parameter FDR

NEXT GEN AVIONICS UPGRADES

Enhanced Avionics System
o EASy II Cert 4 w/ Push-to-Load Function
FalconEye Combined Vision System (HUD + EVS + SVS)
Honeywell SmartView Synthetic Vision System (SVS)
FANS-1/A+ Datalink (CPDLC & ADS-C)
ATN-B1 Datalink (Protected Mode CPDLC)
SBAS/LPV
Honeywell SmartRunway RAAS
VDR 3 Module Capable of VDL Mode 2
ADS-B Out

SAFETY OF FLIGHT BENEFITS

900LX w/FalconEye Combined Vision System
Falcon 900LX is certified for CAT II approaches & RNP AR (Authorization Required) approaches w/RF (Radius to Fix) legs down to RNP .3 MINIMA
FalconEye HUD qualifies for Operational Credit down to 100 feet TDZE (Touch Down Zone Elevation)
Steep approaches up to 6 degrees are approved (ex. London City)

CABIN ENTERTAINMENT / MANAGEMENT SYSTEM

Rockwell Collins Falcon Cabin Management System (FCMS)
Rockwell Collins Airshow 4000 Cabin / Flight Deck Display
Rockwell Collins 3D Interactive Map Database
Rockwell Collins 22” Widescreen HD LED Backlit Forward Bulkhead Monitor
Rockwell Collins 22” Widescreen HD LED Backlit Aft Bulkhead Monitor
Rockwell Collins 10.1” Widescreen LED Backlit Touch Screen Galley/ Entertainment Control
Rockwell Collins Touch Panel Controls
Rockwell Collins Media Server Unit (MSU) w/Dedicated USB
USB Charging, HDMI & Audio Jack Ports Throughout
PGA Hard Button Cabin controls with Plated Bezels
iPad (Remote Control) w/ U.S. Power Supply Plug
Six (6) Plug-In Retractable iPad Arms
Three (3) iPads
Two (2) Alto Amplifiers
Six (6) Alto Speakers
Three (3) Alto Subwoofer Speakers
One (1) Alto Speaker in Lavatory
Eight (8) Bose Noise Canceling Stereo Headsets

CONNECTIVITY

Honeywell JetWave Ka-Band MCS 8000 Satcom & High Speed Streaming Internet

FEATURES / OPTIONS

Enlarged Oxygen Bottle (115 Cu. Ft.)
Three (3) EROS One-Piece Convertible Full-Face Masks w/ Removeable Goggles
Smoke Hood Crew-Type (1 Each)
Two (2) Winslow Life Rafts (12-man) w/ 406 ELT Emergency Transceiver & Storage Provisions
Honeywell Flight Deck Video Interface
KGS Electronics 115 VAC 60 Hz 2000VA Inverter w/Eleven (11) Outlets
Main Batteries Charging from GPU
Avionics Master System
Cabin & Galley Masters
Cabin Temp Indicating System
Telescoping Tow Bar Installation
Second Main Entry Door (MED) Handrail
Two (2) Teleflex Recognition Lights
Two (2) DME Corp Rechargeable Flashlights

INSPECTION STATUS

Fresh Inspections by Dassault-St. Louis, December 2024 input: 12 & 24
Month, 800 & 1600 Hour, Pre-Purchase Evaluation (all options selected)
Inspection … Complied With … Next Due
12 Mo/800 hrs … Dec 2024/ ~1800 hrs … Oct 2025/ ~2600 hrs
24 Mo/1600 hrs … Dec 2024/ ~1800 hrs … Oct 2026/ ~3400 hrs
36 Mo/2400 hrs … Oct 2023/ 1307 hrs … Oct 2026/ 3707 hrs
12 Month … Oct 2024 … Oct 2025
24 Month … Oct 2024 … Oct 2026
36 Month … Oct 2023 … Oct 2026
1B (1600 hrs) … 1401 hrs … 3041 hrs
2B (3200 hrs) … N/A … 3200 hrs
1C (72 Mo / 3750 ldgs) … N/A … Oct 2026
2C (144 Mo / 7500 ldgs) … N/A … Aug 2032

MAINTENANCE PROGRAMS

Dassault FalconCare Elite Airframe Program (Parts & Labor)
Honeywell MSP Gold Engine Program
Honeywell MSP Gold APU Program
CAMP Maintenance Tracking Program

CABIN LAYOUT & AMENITIES

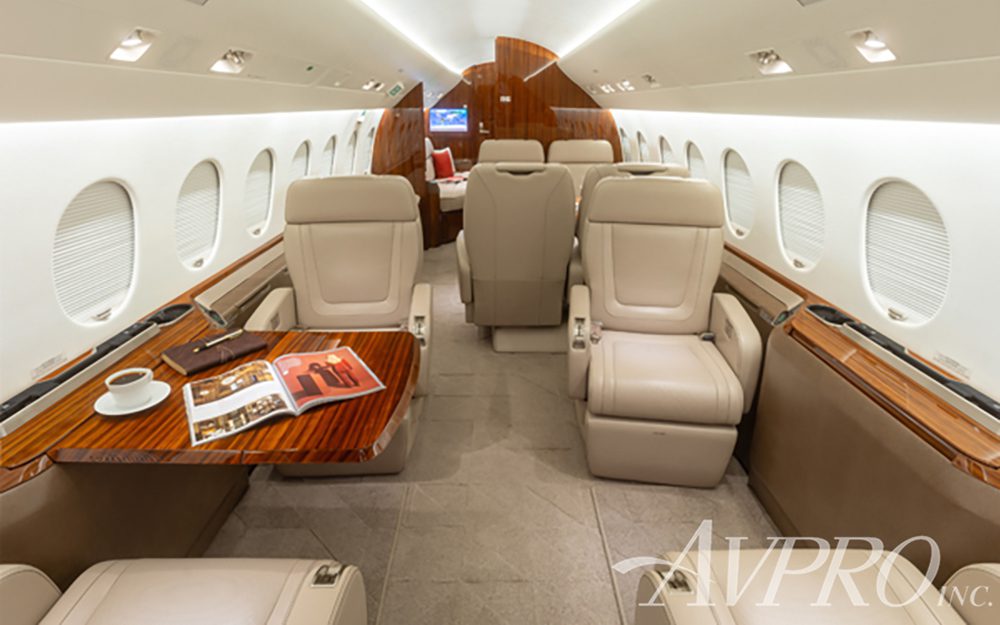

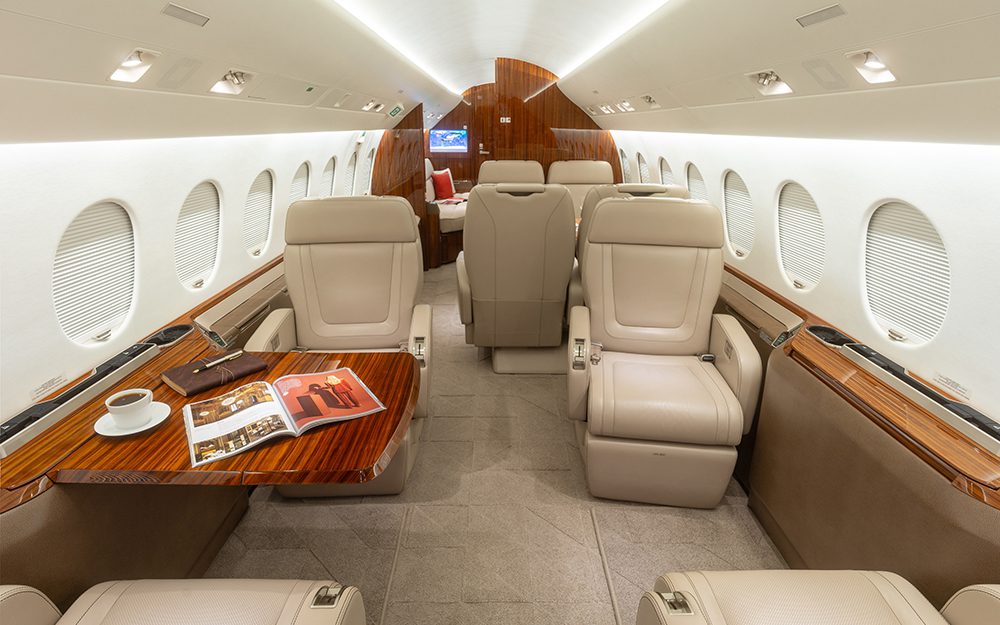

Fourteen (14) Passenger Configuration, Forward Double Club, Mid Cabin Dining/Conference Group and Credenza, Dual Aft Three-Place Divans, Forward Crew & Aft Lavatories
25” Right Hand Forward Lavatory w/ Fold-Down Sink Enclosed by a Tri-Fold Door

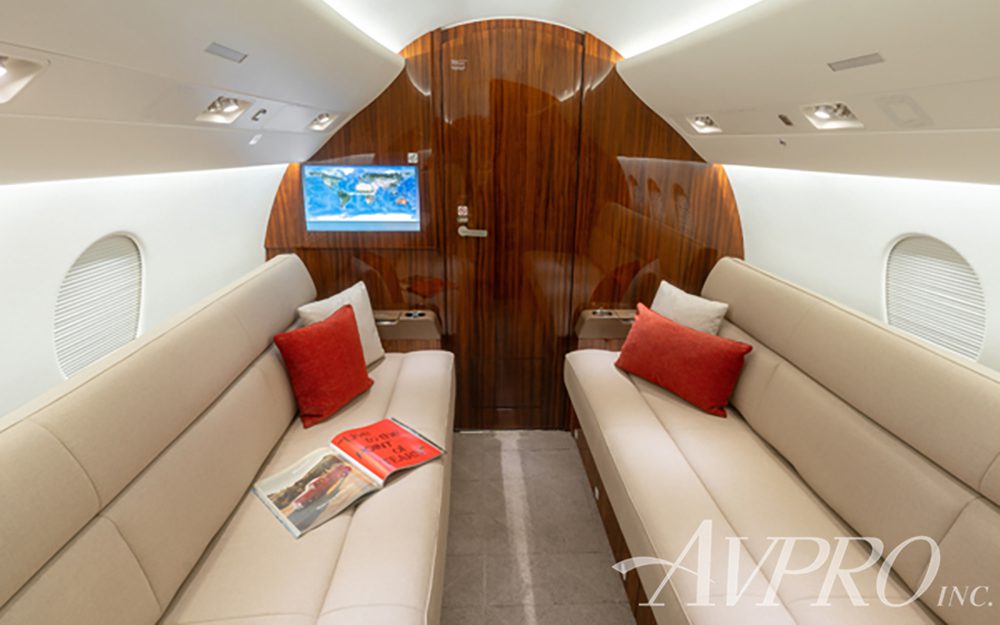

Dual Aft 76” Three Place Divans w/ 10” of Berthing, Storage for Life Raft & 4” Armrest Cabinets
Electrical Berthing for Three Place Divans

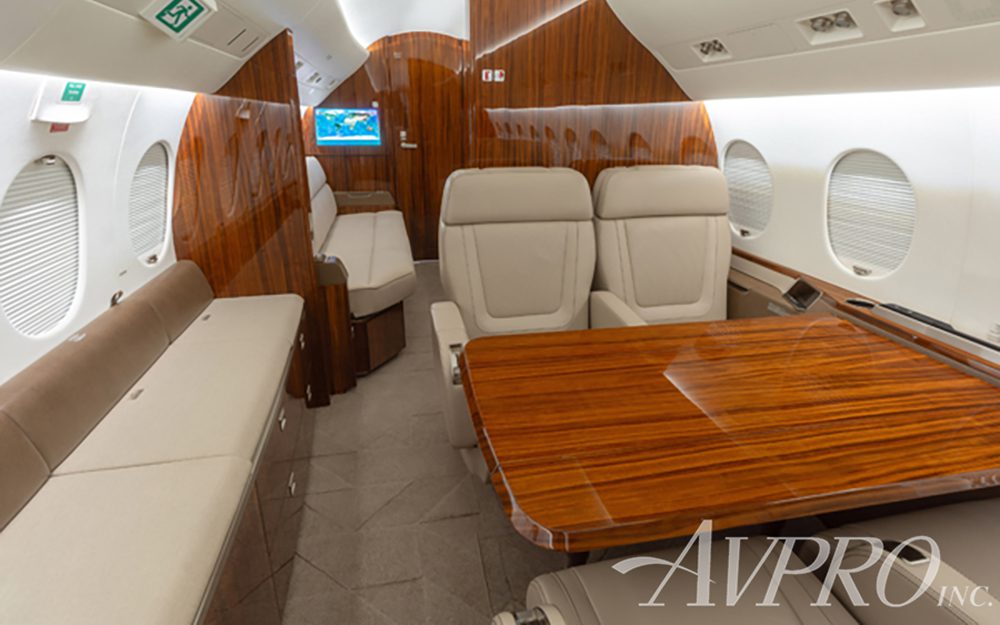

46” x 28” Dining / Conference Table w/ Removable 12” Leaf
Mid Cabin Multi-Purpose Storage Cabinet with Lift-Up Lid
Two (2) Electric Lumbar for Mechanical Single Seats
Two (2) Recliner Type Leg Rests (Pneumatic)
Aft Cabin Dividers with Manual Stowable Curtain
Sheepskin Inserts for Flight Deck Seats (includes 3rd Crew Seat)
3rd Flight Deck Seat w/ Storage Drawer & Fold Down Hanger Bar
LH Closet w/Horizontal Storage for Aircraft Manuals
Forward Bulkhead Cutaway for Pilot Seat Recline
Aft Left Hand Lavatory Vanity
Aft Right Hand Lavatory Toilet w/ Vacuum System
Solid Surface Countertops for Aft Lavatory, including Bullnose
Metal Plated Sink in Aft Lavatory
Fabric Protection Treatment

GALLEY EQUIPMENT

Forward 36” Right Hand Galley
Forward 30” Left Hand Auxiliary Galley (closet & entertainment cabinet)
Galley Pocket Sliding Door
Extra Wide High-Temperature Oven w/Digital Controller
Microwave Oven
Coffee Brewer
Hot Jug
Storage for standard glassware
Ice Drawer
Stainless Steel Sink
Cold Storage Drawer (cooled by cold air outlets)
Pivoting Swing-Out Work Surface
MED Aux Work Surface and Storage (2 each)
Wine Bottle Storage Drawer
Water Bottle Storage Rack

EXTERIOR

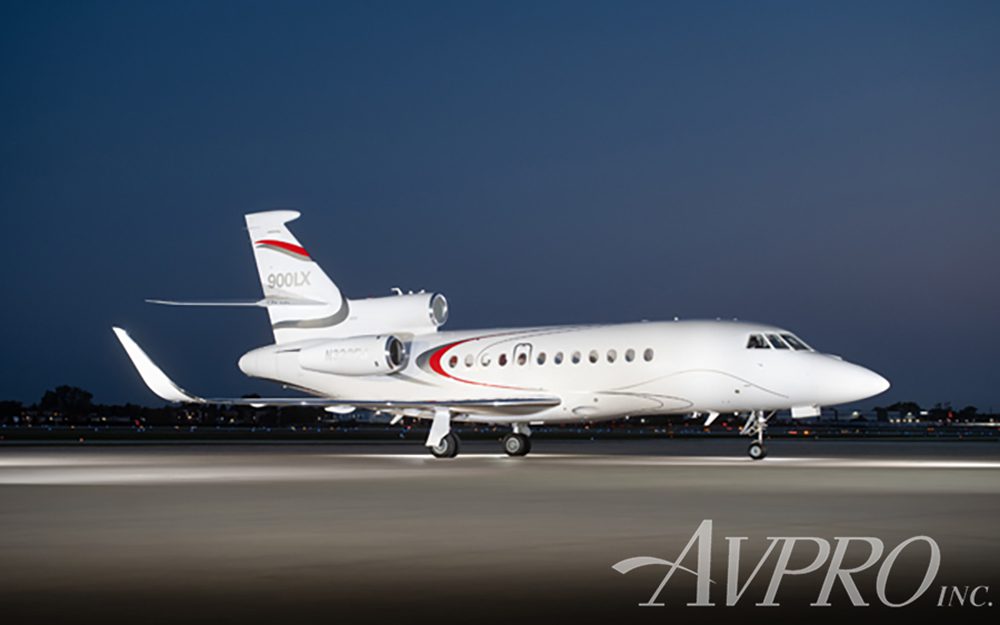

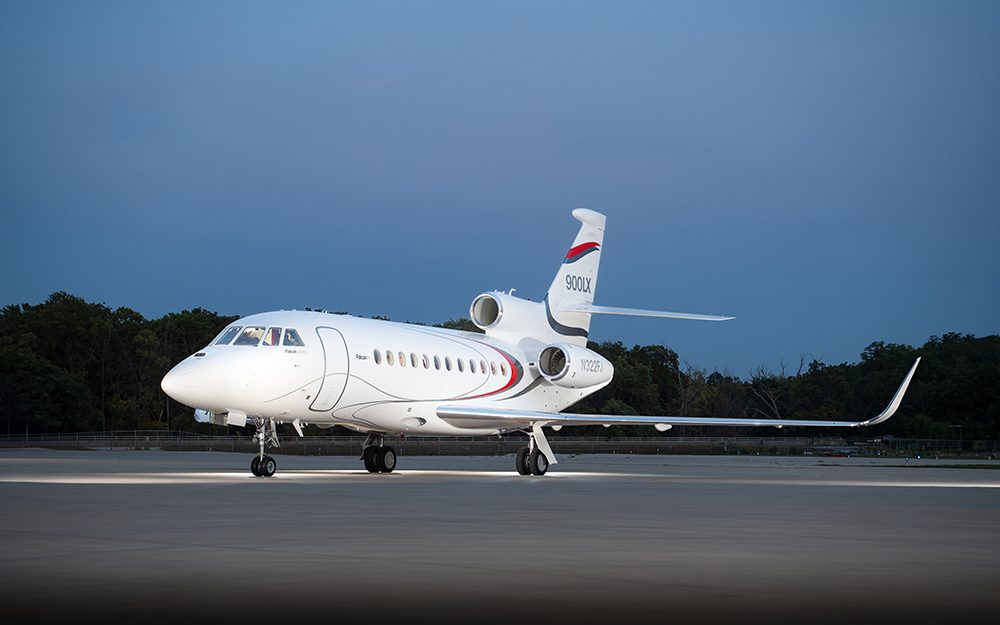

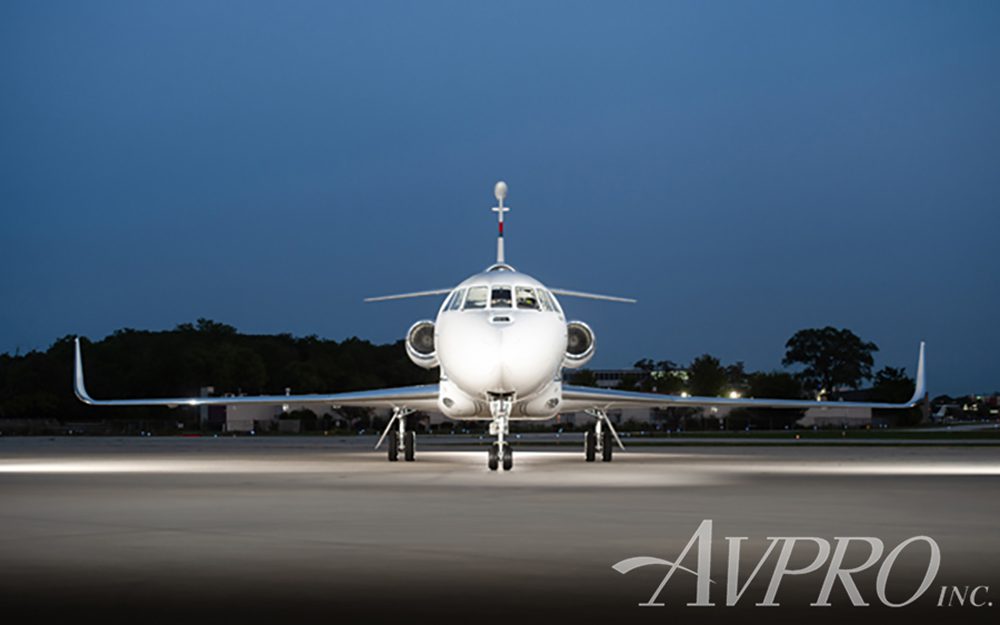

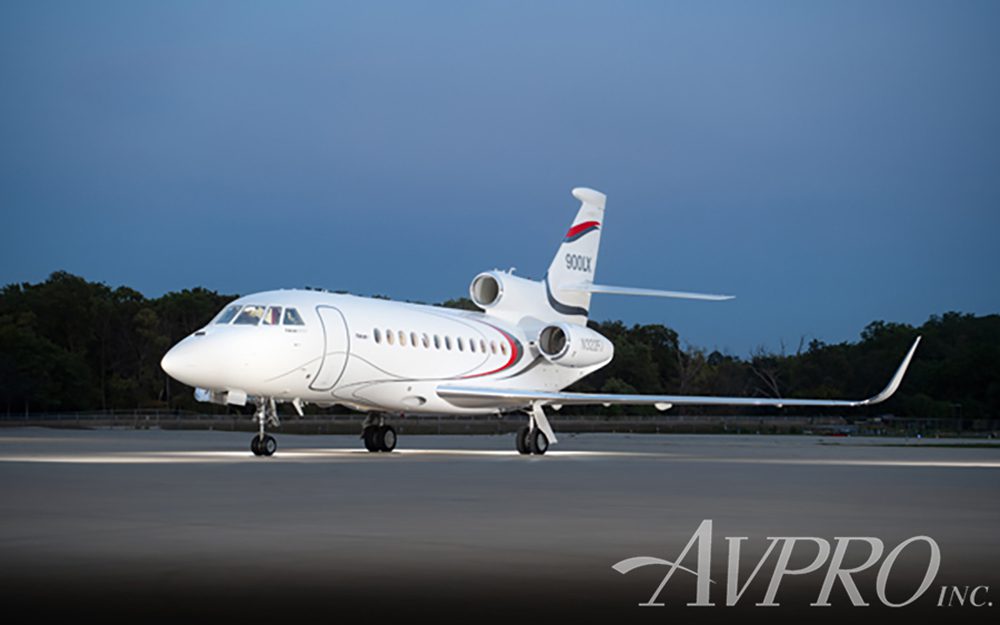

Matterhorn White with Sunfast Red, Medium Silver & Light Silver Accent Striping.
