2010 BOMBARDIER GLOBAL XRS S/N 9339

HIGHLIGHTS

Engines Enrolled on Rolls Royce Corporate Care
APU Enrolled on JSSI
HUD & EVS
Synthetic Vision System
Batch 3.4 FMS Upgrade
KA-Band Internet
Increased MTOW 99,500 LBS
Certification Date March 2010
Primus Elite DU-875 Avionics Upgrade including ADS-B, FANS 1A, & WAAS

AIRFRAME

Total Hours: 4805.9 Hours
Total Landings: 1608 Cycles

ENGINES

Rolls Royce BR-700-710A2-20
Enrolled on Rolls Royce Corporate Care

Left Engine
Serial Number: 12791
Time Since New: 4805.9 Hours
Cycles Since New: 1610 Cycles

Right Engine
Serial Number: PCE-JA0280
Time Since New: 4805.9 Hours
Cycles Since New: 1611 Cycles

APU

Honeywell RE-220 (GX)
Enrolled on JSSI

Serial Number: P-465
Total Time Since New: 4368.9 Hours

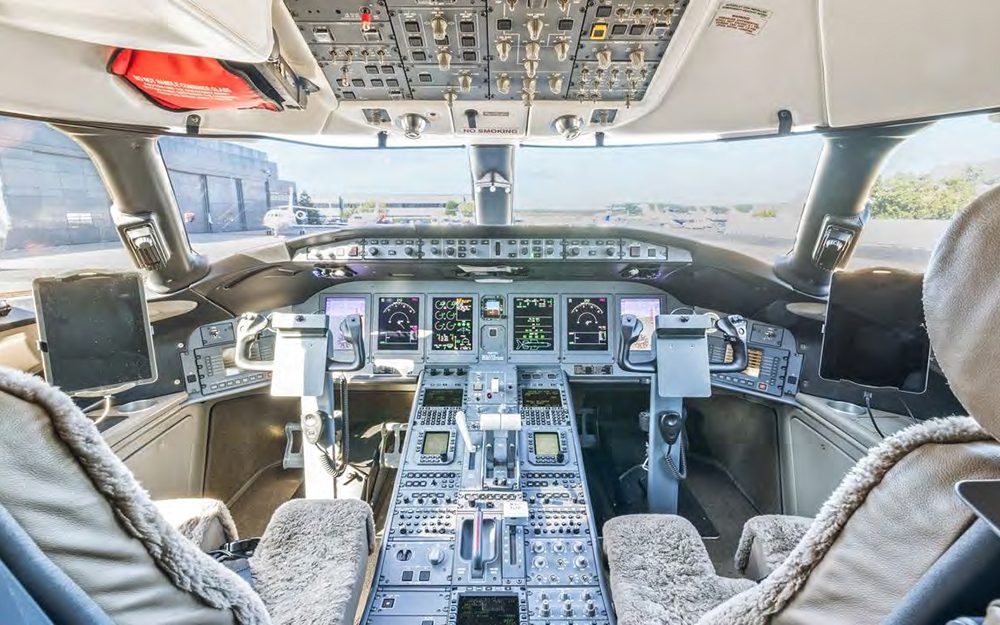

AVIONICS

EFIS (Electronic Flight Instrument System): Six Tube Honeywell DU-875 Color Displays w/ Jeppesen Charts & Maps
FMS (Flight Management System): Triple Honeywell CD-820
FLT DIR (Flight Director): Primus 2000XP IFCS w/ Triple IC-800
GPS (Global Positioning Device): Dual Honeywell HG-2021
EFB (Electronic Flight Bag): Dual Class II
Navigation Radio: Dual Honeywell RNZ-851
SVS (Synthetic Vision System): Dual Honeywell
EVS (Enhanced Vision System): GT546-001-7
HUD (Heads-Up Display): GT546-001-7
Autopilot: Dual Honeywell IC-800
VHF Com (Very High Frequency Communication): Triple Honeywell RCZ-833M
HF Com (High Frequency Communication): Dual Rockwell Collins HF-9031A w/ SELCAL CSD-714
ELT (Emergency Locator Transmitter): Artex 406 ELT
Radar: Honeywell Primus WU-880
EGPWS (Enhanced Ground Proximity Warning System): Honeywell
TCAS (Traffic Collision Avoidance System): ACSS TCAS-2000 w/ Change 7.1
LSS (Lighting Sensor System): Honeywell LP-860
CVR (Cockpit Voice Recorder): Honeywell 980-6022-001
FDR (Flight Data Recorder): Honeywell 980-4700-041

ADDITIONAL FEATURES

Ka-Band Internet
Dual 21.3” Bulkhead LCD Monitors FWD/AFT
Triple 10.4” Touch Screen LCD Monitors
Eight Receptacle Monitors
Single Rockwell Collins Airshow ASXi
Triple Rockwell Collins Dual CD/DVD Players
High Quality Cabin Speakers
Passenger Headphone System

ADDITIONAL EQUIPMENT

ADS-B Out: Automatic Dependent Surveillance – Broadcast Out
CPDLC: Controller Pilot Data Link Communications
FANS 1/A: Future Air Navigation System
WAAS: Wide Area Augmentation System
MNPS: Minimum Navigation Performance Specifications
RNP 4: Require Navigation Performance 4
RVSM: Reduced Vertical Separation Minimum

MAINTENANCE STATUS

Batch 3.4 FMS Upgrade
Engines enrolled on Rolls Royce Corporate Care
APU enrolled on Honeywell JSSI
Maintenance tracked by CAMP
15-Month Next Due June 2025
30-Month Next Due August 2025
60-Month Next Due October 2025
120-Month Next Due August 2030
180-Month Next Due August 2025
240-Month Next Due August 2030
500 Hour Check Next Due at 5202 Hours
750 Hour Check Next Due at 5575 Hours
1000 Hour Check Next Due at 5683 Hours
1500 Hour Check Next Due at 3233 Hours
2250 Hour Check Next Due at 5983 Hours
3000 Hour Check Next Due at 5969 Hours
4500 Hour Check Next Due at 8991 Hours

INTERIOR

New Soft Goods – May 2021
Thirteen Passengers (13)

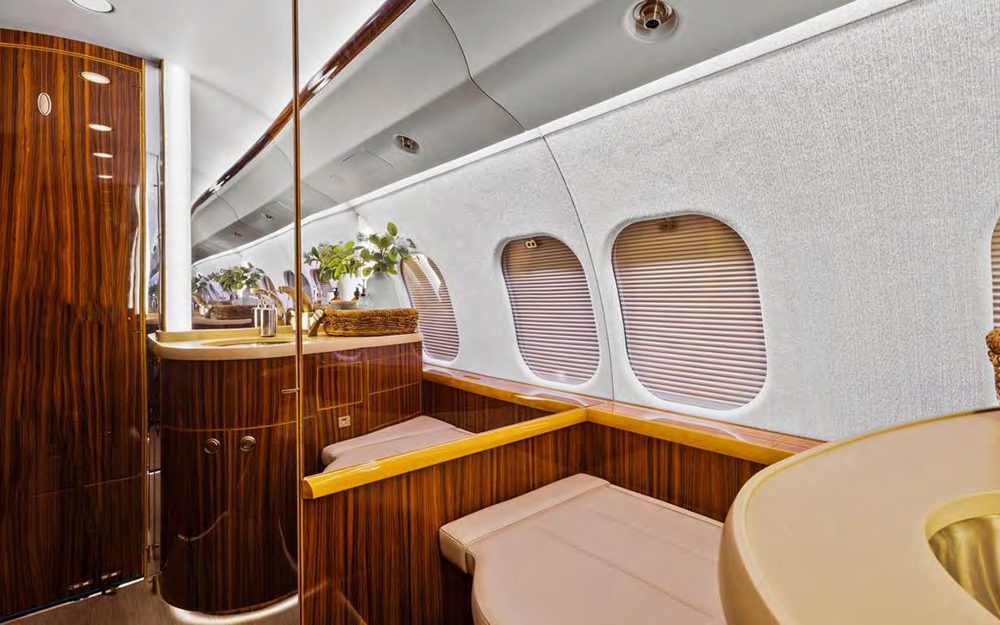

Spacious Forward Galley Area
Adjacent Crew Rest Area
Forward and Aft Lavatory

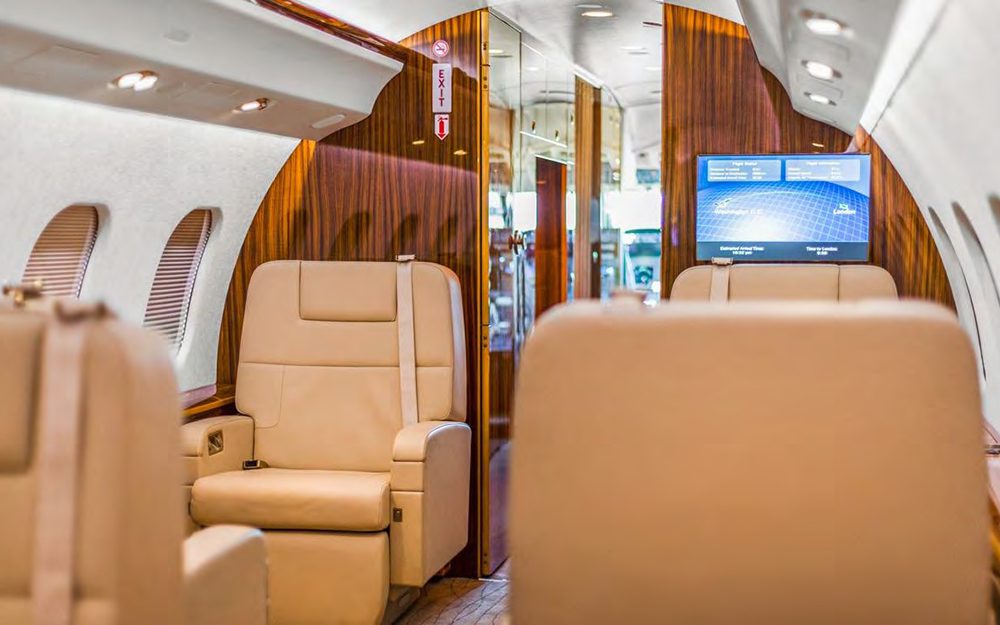

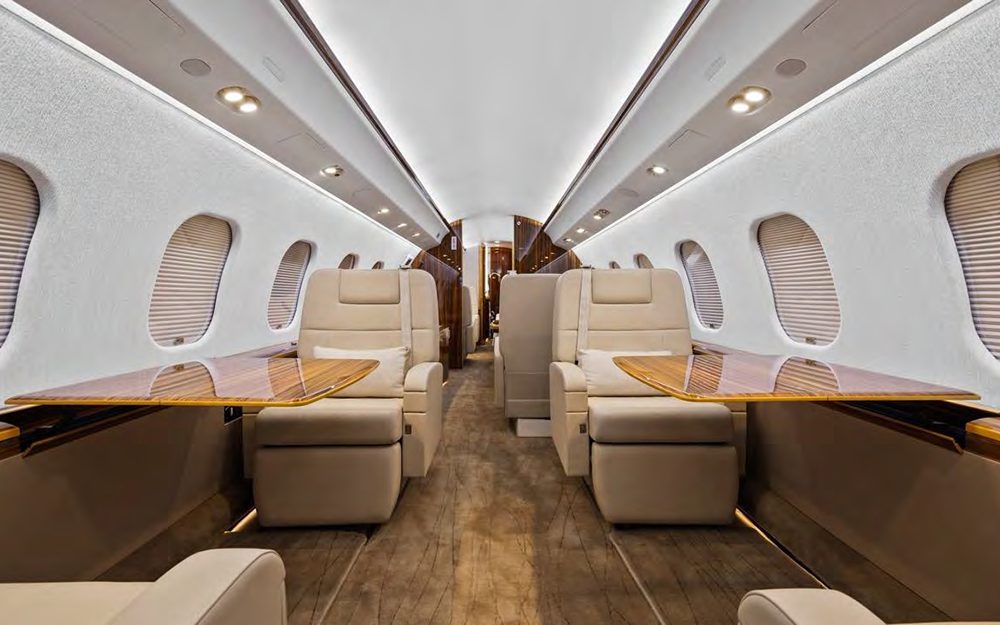

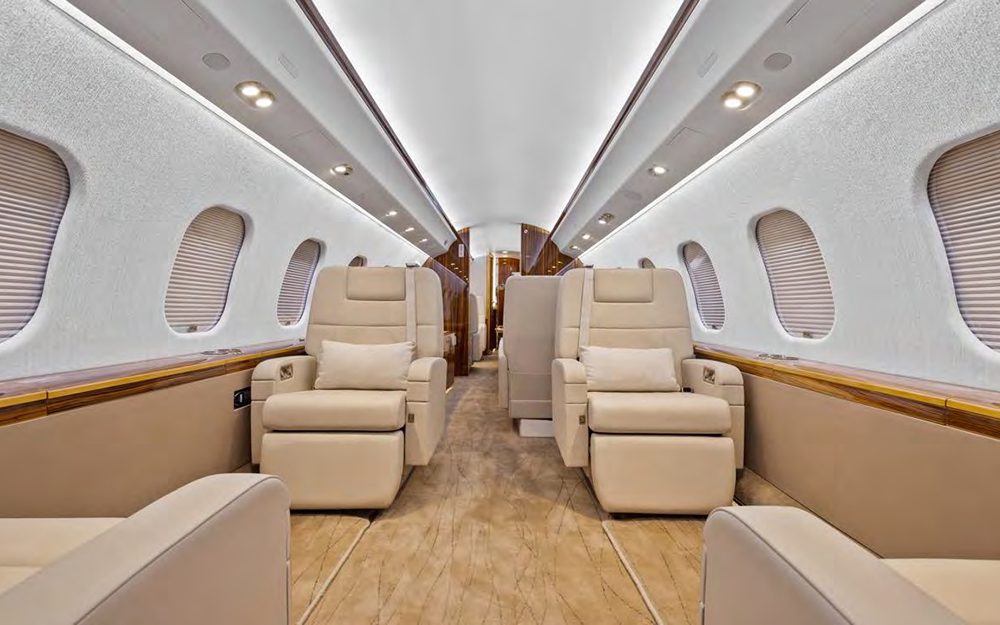

Forward Cabin with Four-Person Club Seat with Ledge Pull-Out Tables on Each Side

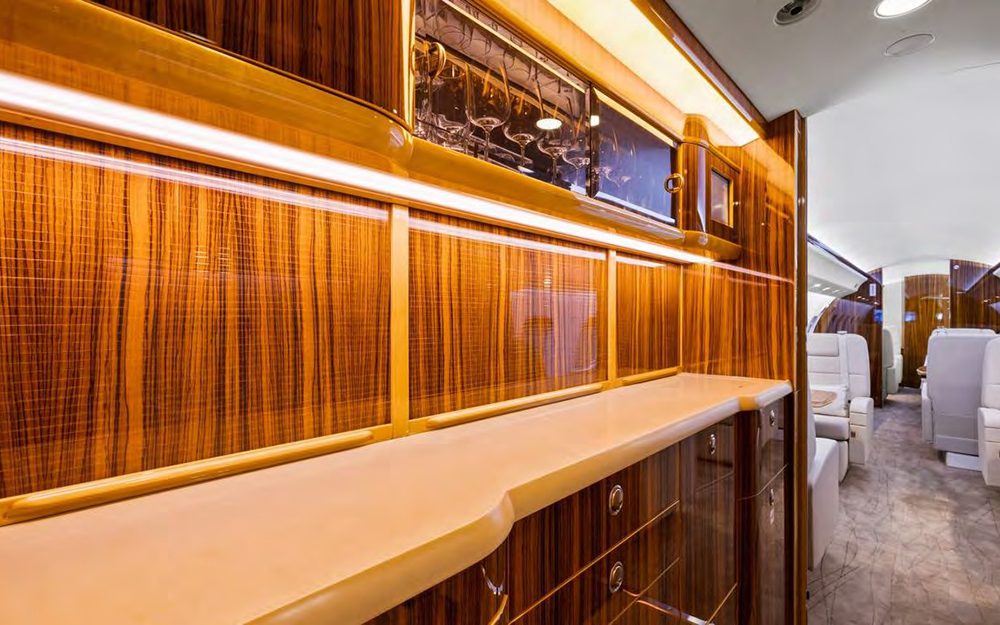

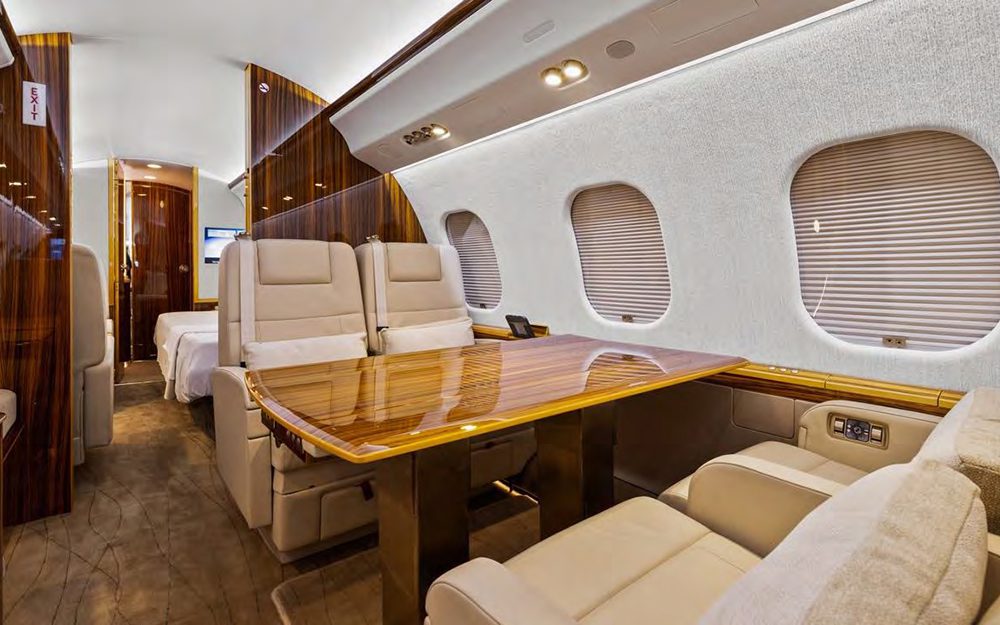

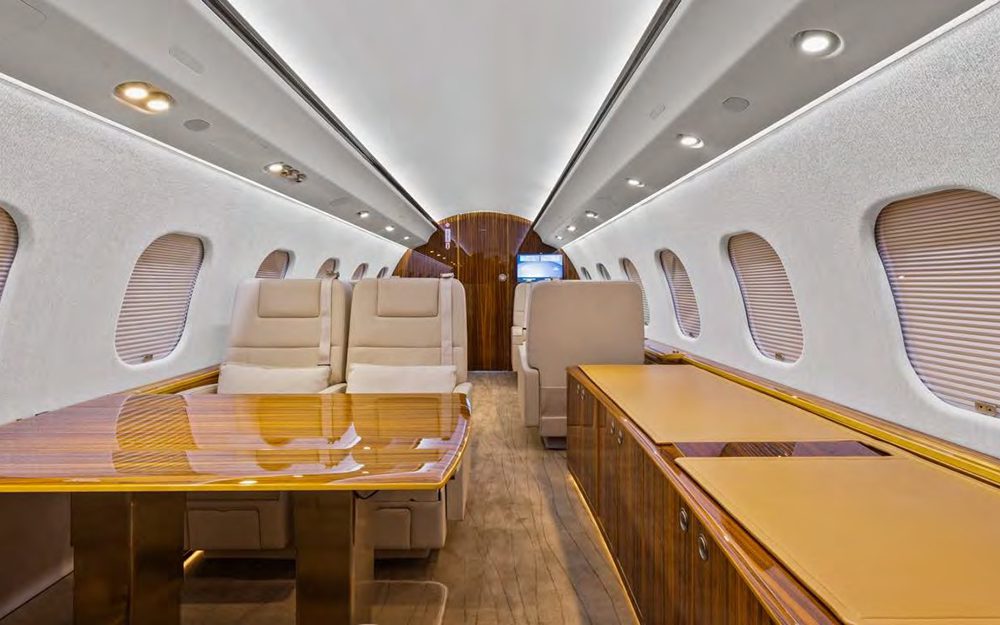

Mid- Cabin Four-Person Conference Area with Opposite Credenza

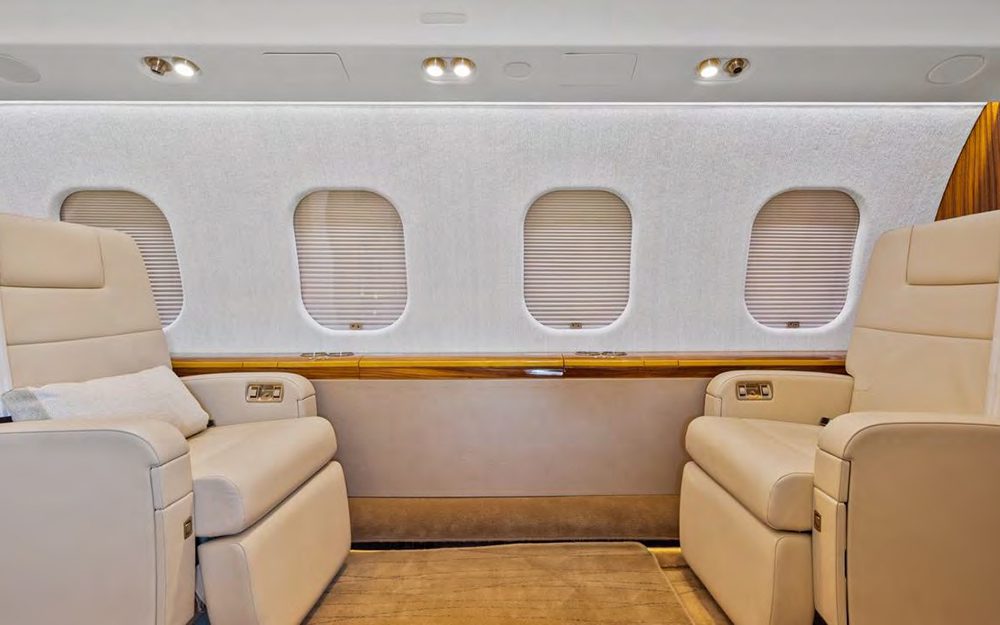

Aft Cabin Two Club Seats

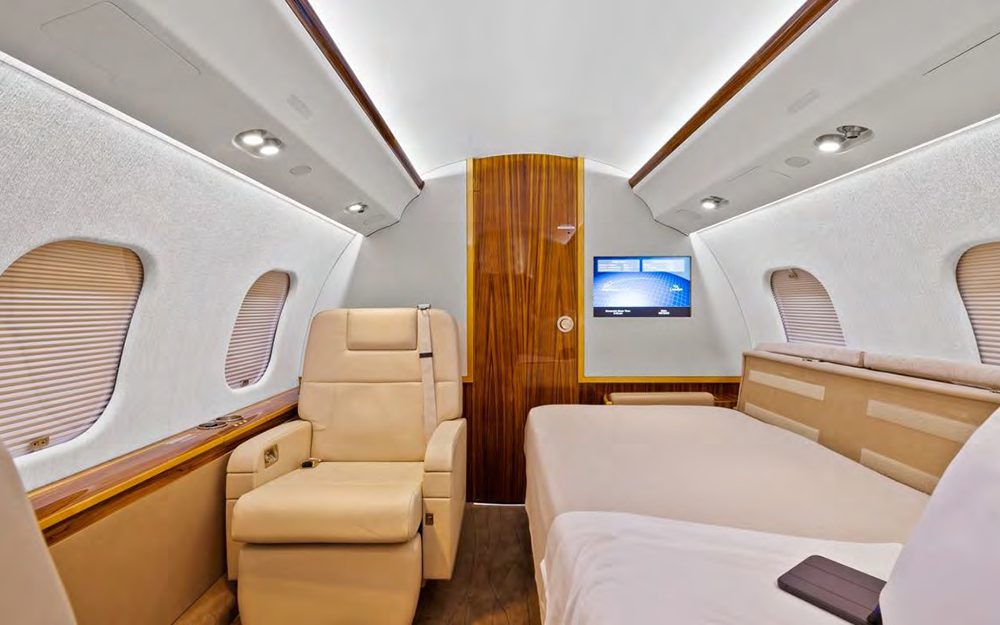

Aft Cabin Three-Person Divan (two seats certified for take-off and landing)
In-Flight Accessible Baggage Compartment

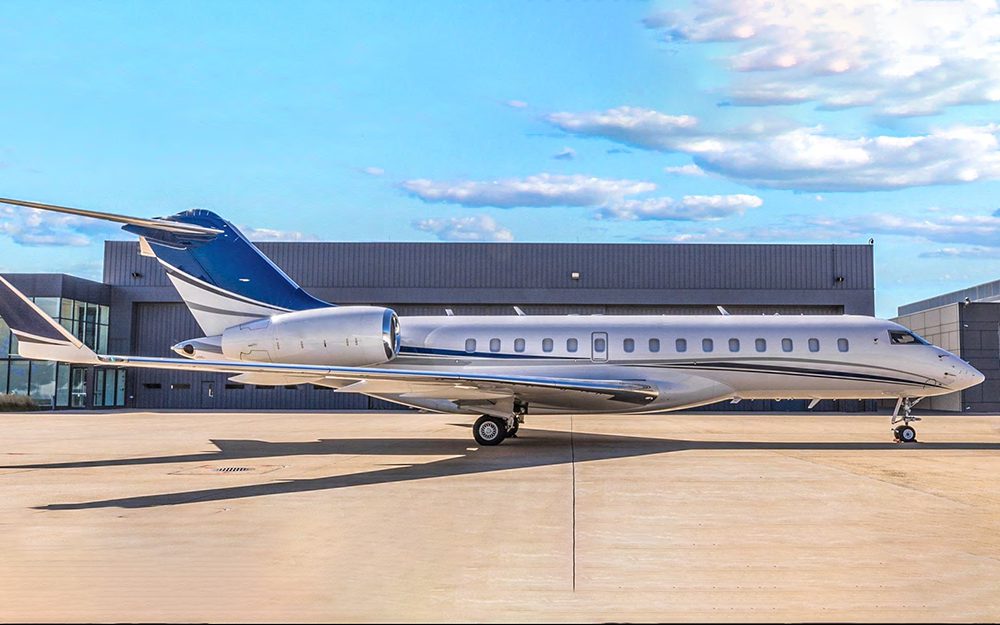

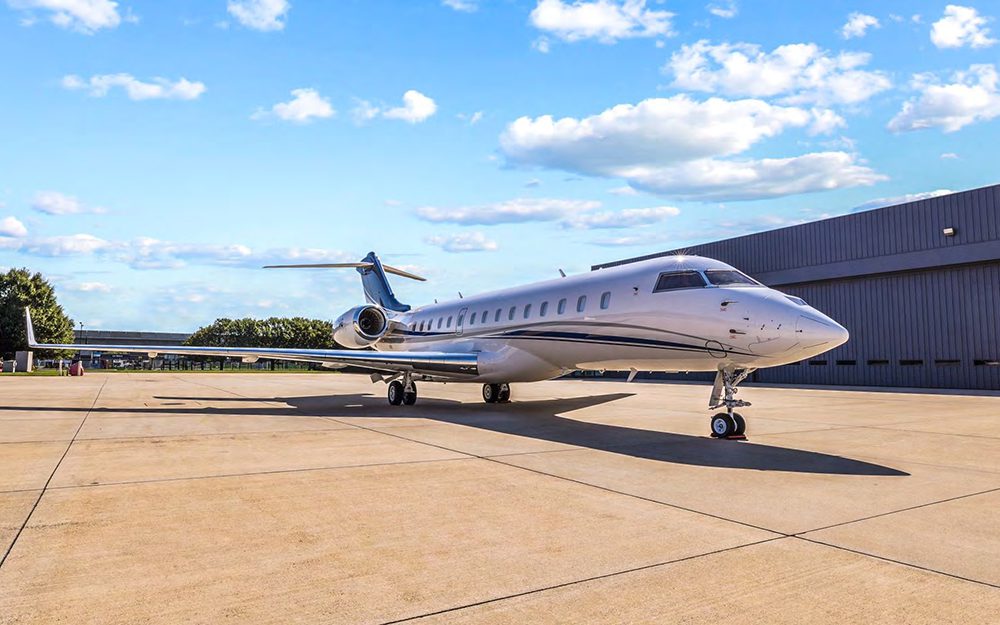

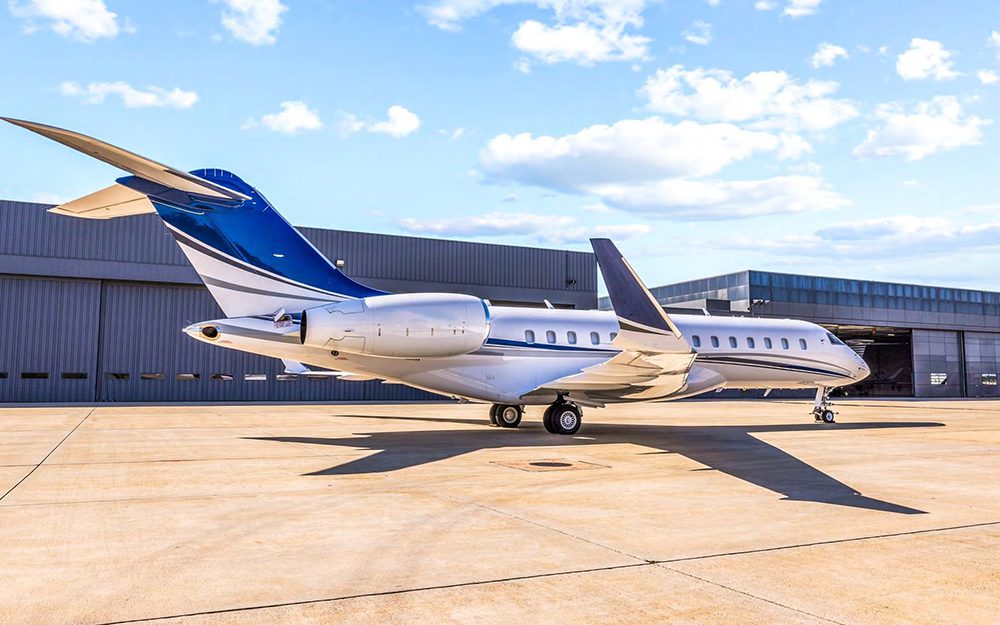

EXTERIOR

New Paint – October 2020
Matterhorn White with Medium Gray and Granite Accents
