2000 GULFSTREAM GV S/N 582

HIGHLIGHTS

Forward Galley
Crew Rest
Fresh 144 Month Inspections
ENGINES – Enrolled Rolls-Royce Corporate Care (RRCC)
APU – Enrolled Honeywell Maintenance Service Plan (MSP)
AVIONICS – Enrolled Honeywell Avionics Protection Plan (HAAP)
MAINTENANCE PROTECTION PLAN – Enrolled Honeywell (MPP)
CMP – Enrolled Maintenance Tracking Program (CMP)
Privately Operated
Excellent Paint and Interior

AIRFRAME

Total Time: 9,596.5
Total Landings: 2,650

ENGINES

BR700-710A1-10
Enrolled Rolls-Royce Corporate Care engine program

Left Engine
9,302.3 Hours Total Time
2,579 Total Cycles

Right Engine
9,278.9 Hours Total Time
2,567 Total Cycles

APU

Honeywell RE220
Enrolled on MSP APU Program
5,154 Hours Total Time

AVIONICS

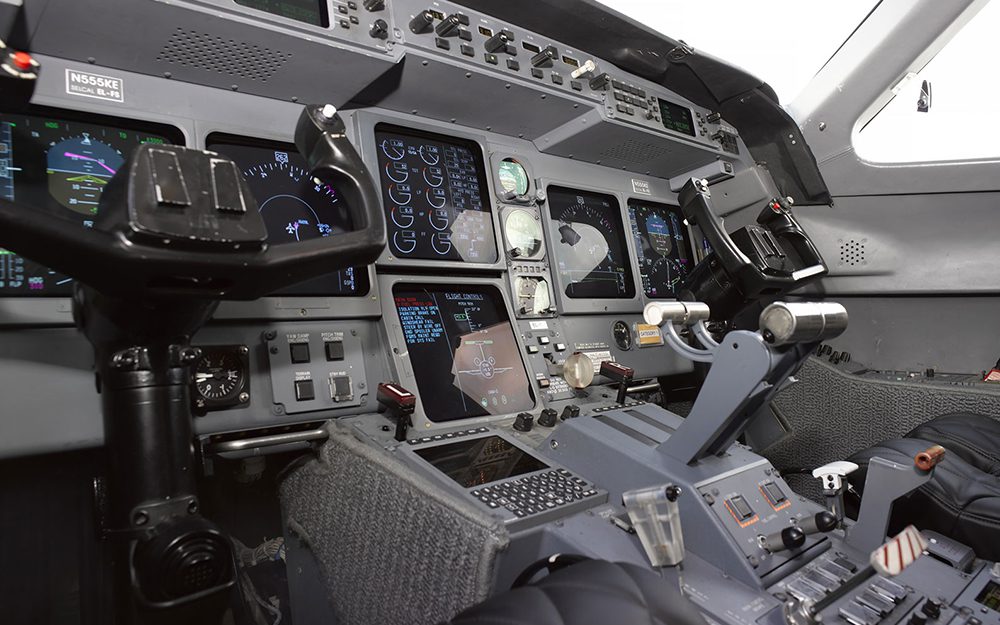

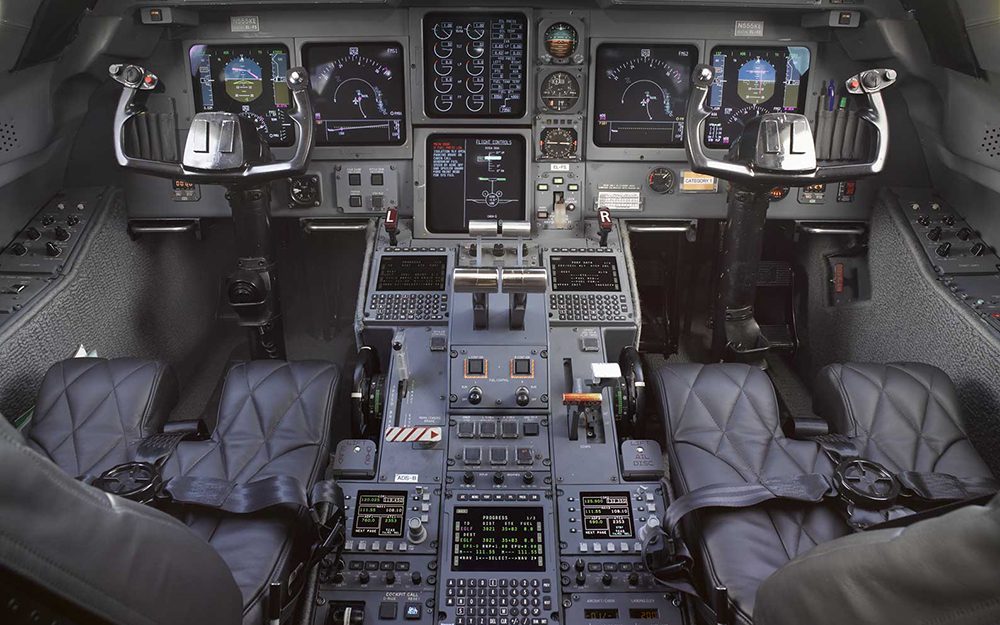

HONEYWELL PRIMUS SPZ-8500 FCS System w/ Six DU-880 Display Units
COMMUNICATION: Dual Collins VHF-422C Comms 8.33 kHz Spacing
VHF NAVIGATION: Dual Collins VIR-432 NAVIGATION
AUTOPILOT: Honeywell Primus SPZ-8500 Integrated Avionics System
WEATHER RADAR: Honeywell Primus 880 Color Weather Radar System
TRANSPONDER: Dual Collins TDR-94 Mode S Transponders
AUTOMATIC DIRECTION FINDER: Dual Collins ADF-462 ADF Systems
DISTANCE MEASURING EQUIPMENT: Dual Collins DME-422 DME Systems
HIGH FREQUENCY RADIO: Dual Collins HF-9000 HF Radio w/Selcal
RADIO ALTIMETER: Dual Honeywell RT-300 Radar Altimeter
AIR DATA COMPUTER: Triple Honeywell AZ-840 Air Data Computers
INERTIAL REFERENCE SYSTEM: Dual Honeywell Laseref III IRS
FLIGHT MANAGEMENT SYSTEMS: Triple Honeywell IC800FMS w/6.1 (WAAS/LPV)
TERMINAL COLLISION AVOIDANCE SYSTEM: Honeywell TPU67B, w/Change 7.1 (TCAS II)
TERRAIN AWARENESS AND WARNING SYSTEM: Honeywell Mark V EGPWS
EMERGENCY LOCATOR TRANSMITTER: ARTEX C406 ELT
FLIGHT DATA RECORDER: Teledyne P/N 91005-0031122
COCKPIT VOICE RECORDER: L3 Harris P/N 2100-1225-22 CVR STC 04030AT-D (FANS Compliant)
TELEPHONE: Iridium Aircel ST3100 Satcom

AVIONICS DESCRIPTION

The avionics package for the Gulfstream V is built around the Honeywell SPZ-8500 system, an integration of Primus 2000 equipment and the SPZ-8000 system. It includes six large-format CRT’s, triple Laseref III inertial reference systems, triple digital air data computers, and triple FMS, dual Collins VHF comm and nav radios with DME, dual Mode S Transponders, HF transceivers, ADF, radio altimeters, and a Primus 880 weather radar.

ADDITIONAL EQUIPMENT / OPTIONS

Honeywell AFIS w/SAT Link
Honeywell DL950 Data Loader
Honeywell MCS 7000 SATCOM
High Speed Data HD-710 Swift Broadband w/ CNX-200 Router w/WLAN
18” Monitor Mounted on the LH Forward Bulkhead
18” Monitor Mounted on the RH Rear Bulkhead
32” Monitor Mounted in the Credenza
Airshow Genesys
Therapeutic O2 outlet
Seven (7) Ea. 115vac/60hz Outlets in the Main Cabin
Manual Cabin Window Shades
CD/DVD Player
FANS 1/A+ (AFN,CPDLC, ADS-C)
Foxtronics Battery Temperature Indicating System
Garmin GSB-15 USB Ports (crew)
ACA Ionizer System
Precise Flight, Inc. Pulselight System

PROGRAMS

ENGINES – Enrolled Rolls-Royce Corporate Care (RRCC)
APU – Enrolled Honeywell Maintenance Service Plan (MSP)
AVIONICS – Enrolled Honeywell Avionics Protection Plan (HAPP)
MAINTENANCE PROTECTION PLAN – Enrolled Honeywell (MPP)
CAMP – Enrolled Maintenance Tracking Program (CAMP)

INTERIOR: 2015

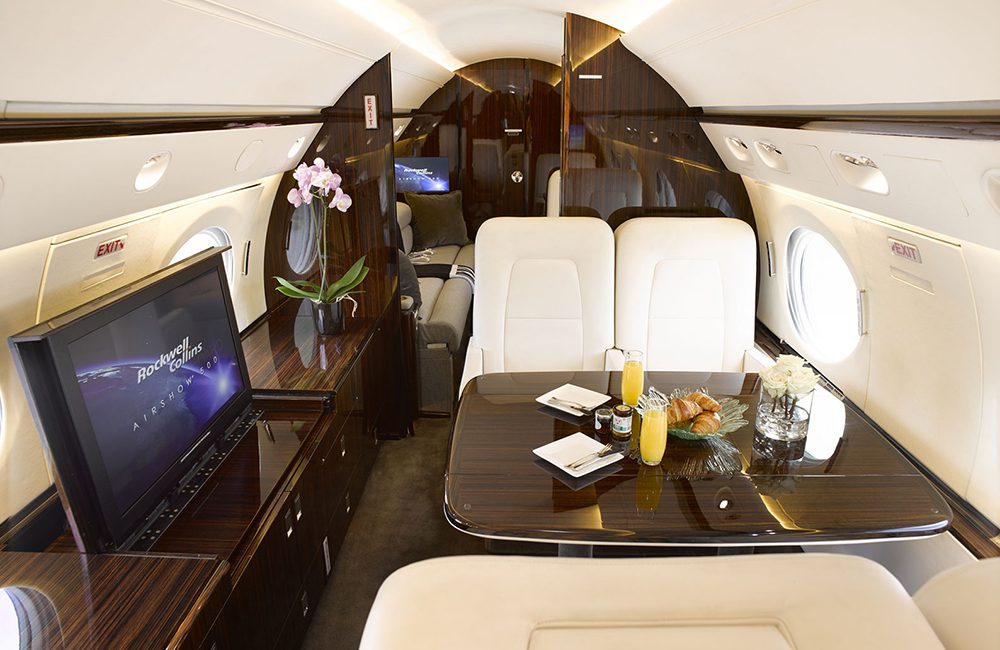

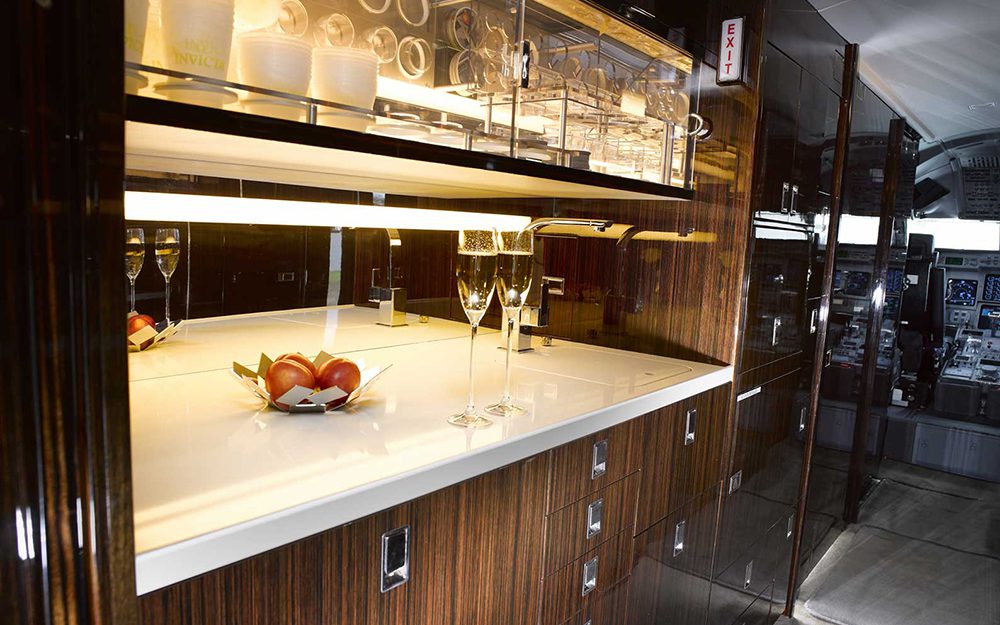

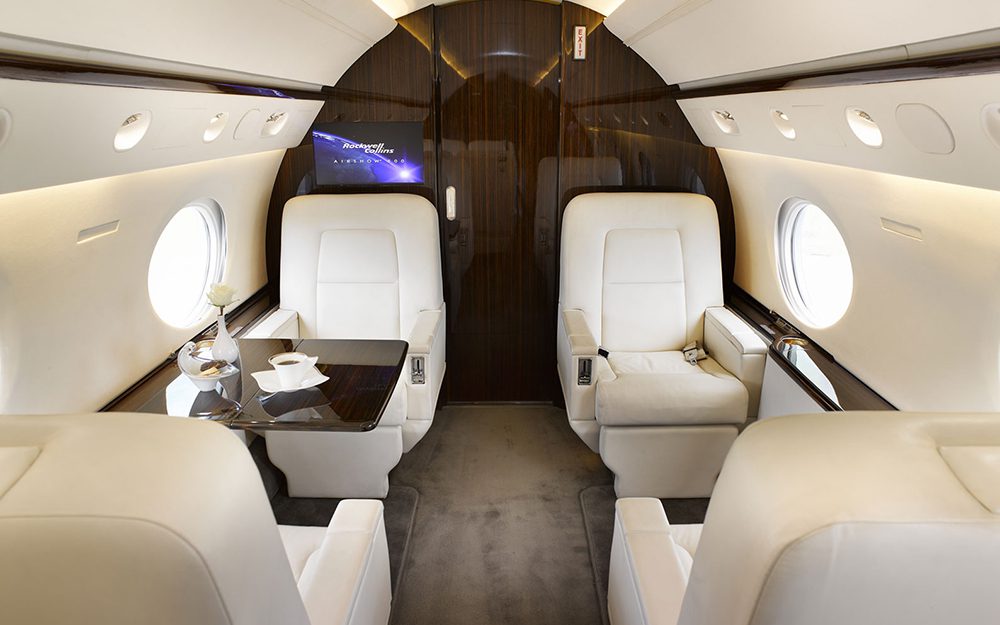

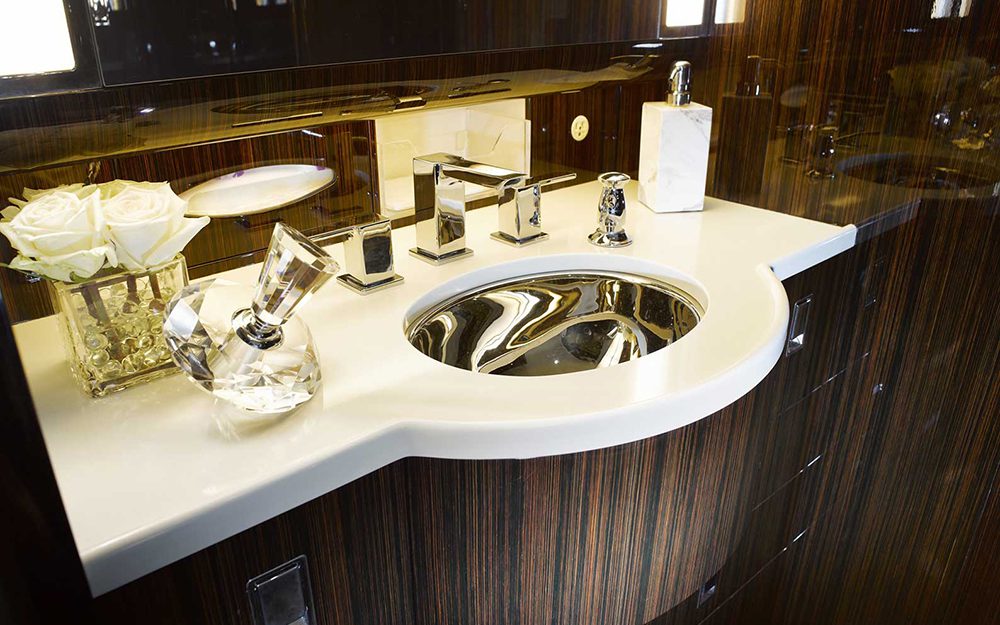

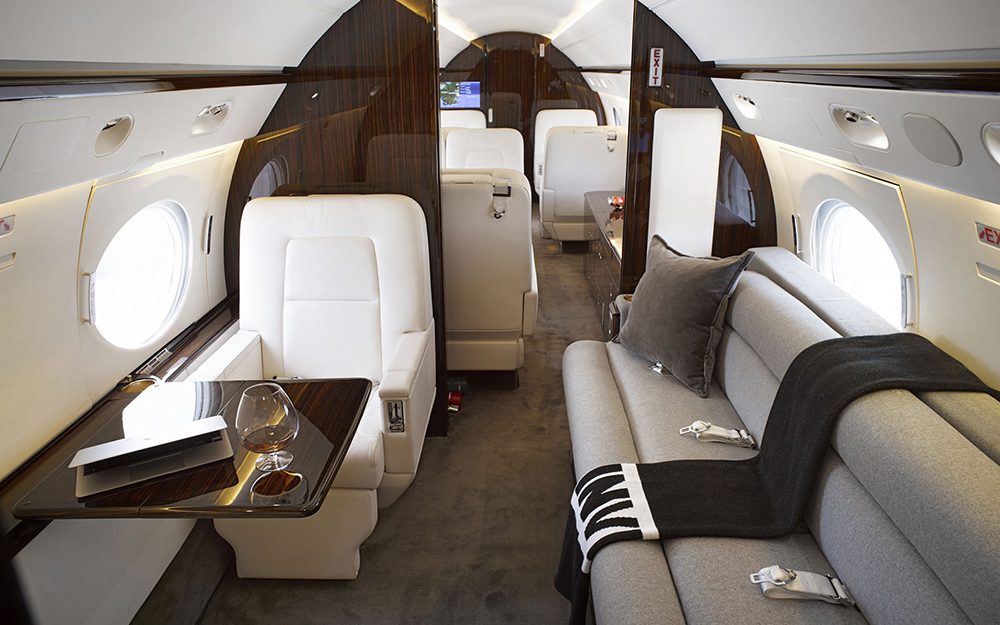

The cabin is configured for 14 passengers. Entering the aircraft is a forward right-hand full-service forward galley opposing the left side of the crew rest and lavatory. The main galley features included microwave, provisions for warming oven, ice drawers, cold storage drawer, and refrigerator unit. Moving into the main cabin is a four (4) place club with breathable seats and footrests followed by a right hand four (4) place dining/conference group that opposes a right-hand credenza containing all entertainment system components and 32” monitor. Continuing aft through the mid-cabin divider with pocket door is the stateroom with four (4) place divan on the left and two place club with breathable seats on right hand side, and footrests. Further aft is a shower room and a full-service lavatory with full length storage closets followed by the baggage compartment.

• All cabin seats are covered in Ermine leather
• The divans in the aft cabin are covered in Grey softer wool material
• Carpet throughout the cabin is Grey wool
• Headliner and sidewall throughout the cabin are White Dove ultra leather
• Woodwork is high gloss Qtr. Comp Brown Ebony veneer
• Hardware finishes throughout are polished Chrome
• Countertops in the main galley are Beige solid surface material

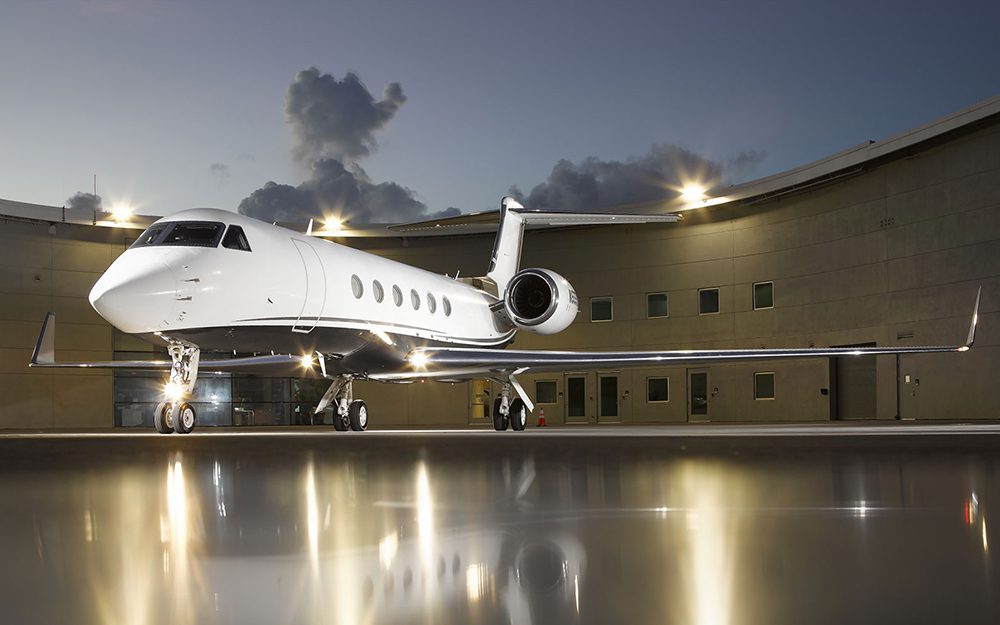

EXTERIOR: 2014

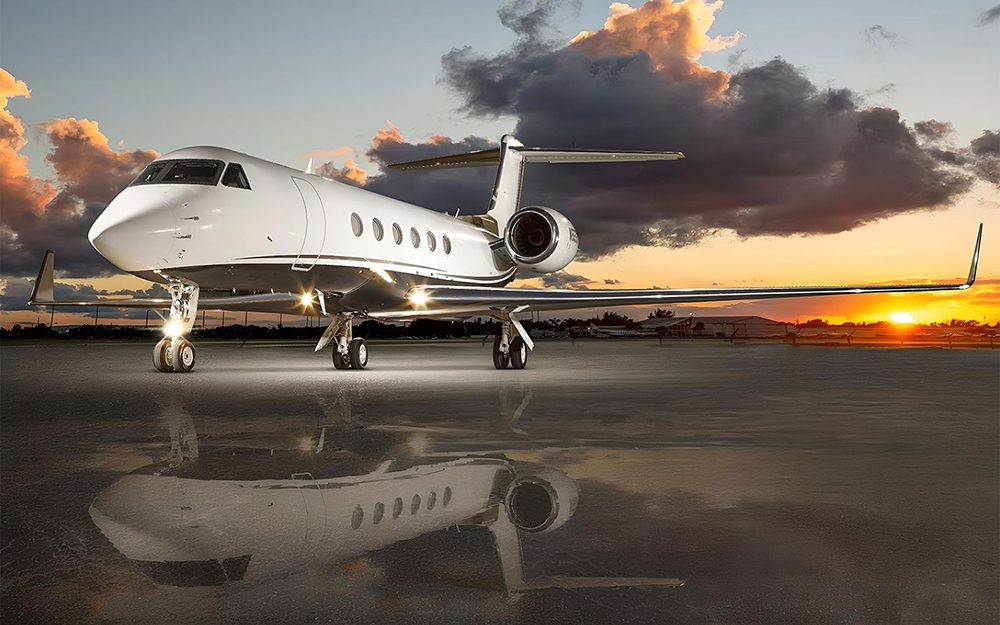

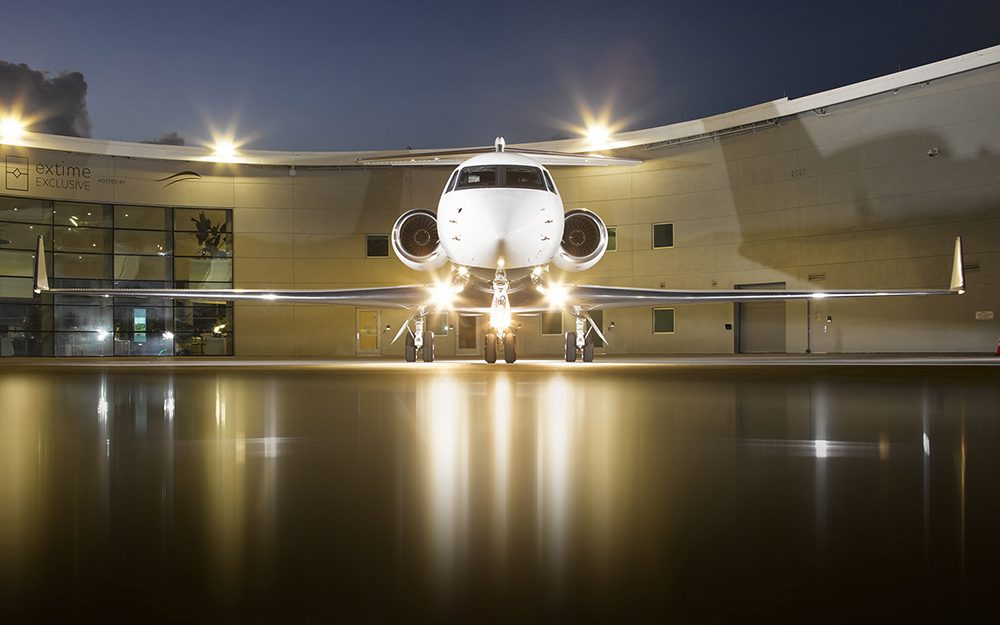

Overall Matterhorn White, Slate Gray Pearl, and Titanium Pearl accent stripes.
